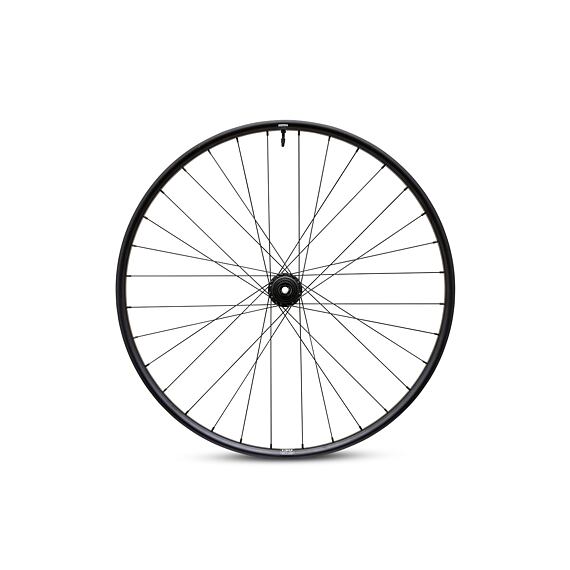

WTB wheel HTZ i30x29'' 110x15mm 32 holes rear, Shimano MS
skladem na e-shopu
When will my order arrive?Description and specifications
Product description

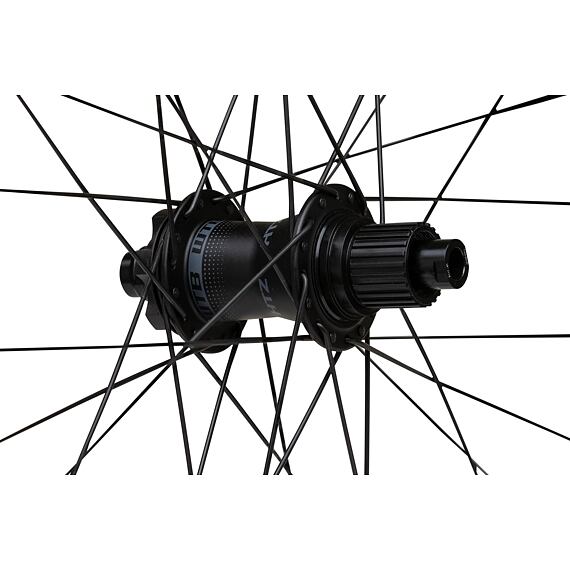

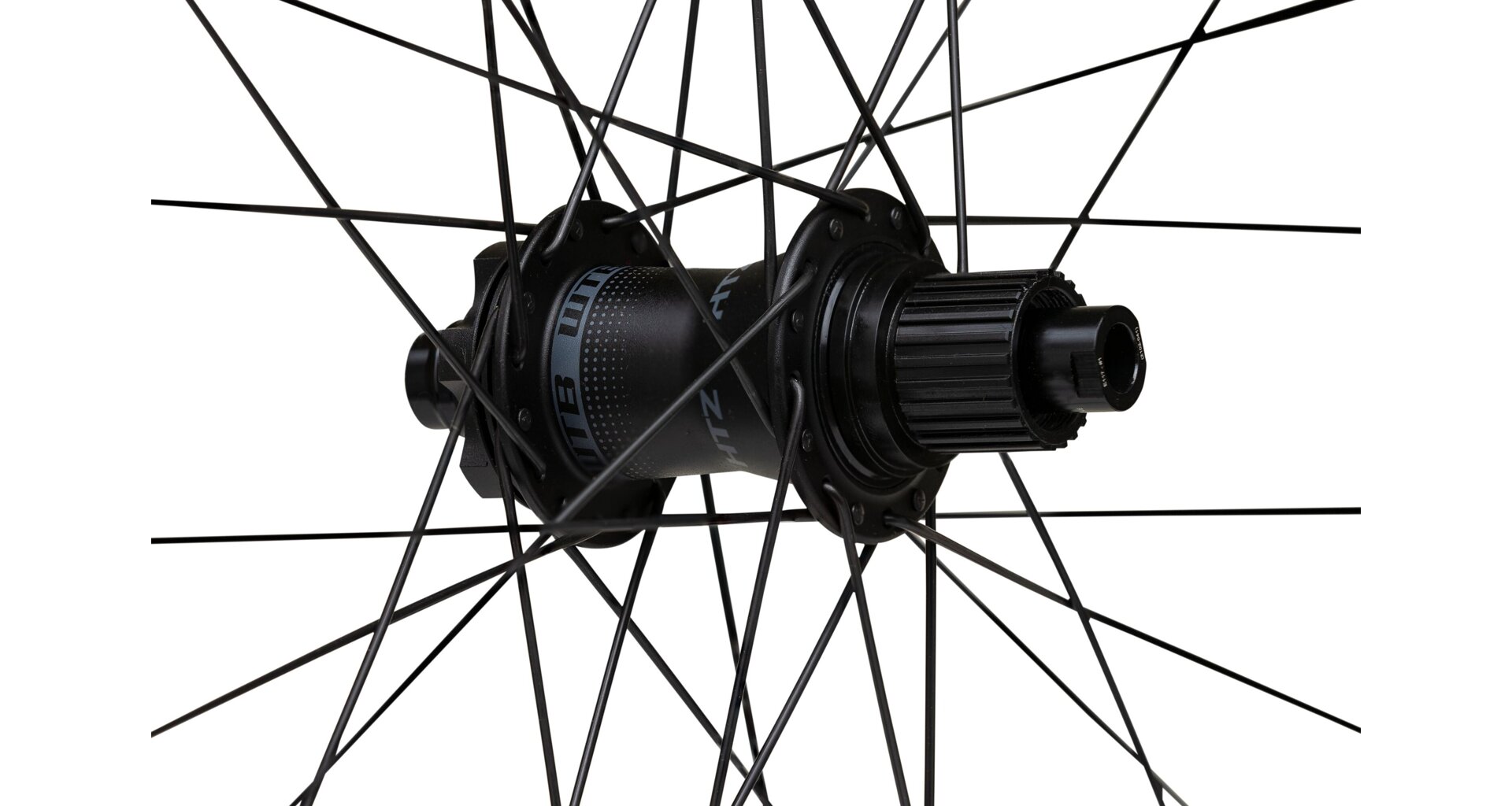

HTZ i30 is our first purpose-built eMTB wheelset for those who want to smash through rock gardens with confidence and not have to worry about if their wheels will make it through the ride. What makes HTZ wheels e-bike specific? An asymmetric rim design with 20% thicker walls, a heat-treated steel freehub body with six pawls of simultaneous engagement, oversized 17mm axle sleeves, double-stacked Enduro sealed bearings at the inboard end of the driver body and rotor mount heat sinks all create a bombproof wheelset specifically tailored to meet the demands of full-power eMTBs. Every component of our new HTZ wheels was meticulously designed to create the most dependable e-specific wheels on the market.
SPECIFICATIONS: (Max spoke tension range: 110-120KgF)
| Product | Wheel Diameter |
Position |
Spacing |
Spoke Holes / Offset |
Driver Body |
Rotor Mount |
Inner Rim Width |
Rim ERD* | Weight** | Max Rider Weight | Part Number |
|
HTZ i30 x 27.5" wheel, 148 x 12mm, 32h, 6-Bolt, Shimano HG 11sp |
27.5" |
Rear |
148x12mm |
32-hole / 6mm |
Shimano HG 11spd |
6-bolt |
30mm |
569 | 1405g | 330 lbs | W045-0270 |
|
HTZ i30 x 27.5" wheel, 148 x 12mm, 32h, 6-Bolt, Shimano MS |
27.5" |
Rear |
148x12mm |
32-hole / 6mm |
Shimano Microspline |
6-bolt |
30mm |
569 | 1411g | 330 lbs |
W045-0272 |
| HTZ i30 x 27.5" wheel, 148 x 12mm, 32h, 6-Bolt, SRAM XD | 27.5" |
Rear |
148x12mm | 32-hole / 6mm | SRAM XD |
6-bolt |
30mm |
569 | 1376g | 330 lbs | W045-0271 |
| HTZ i30 x 29" wheel, 110 x 15mm, 32h, 6-Bolt | 29" | Front | 110x15mm | 32-hole / 6mm | n/a |
6-bolt |
30mm |
605 | 1235g | 330 lbs | W045-0263 |
| HTZ i30 x 29" wheel, 148 x 12mm, 32h, 6-Bolt, Shimano HG 11sp | 29" | Rear | 148x12mm | 32-hole / 6mm |
Shimano HG 11spd |
6-bolt |
30mm |
605 | 1456g | 330 lbs | W045-0264 |
| HTZ i30 x 29" wheel, 148 x 12mm, 32h, 6-Bolt, Shimano MS | 29" |
Rear |
148x12mm | 32-hole / 6mm |
Shimano Microspline |
6-bolt |
30mm |
605 | 1462g | 330 lbs | W045-0266 |
| HTZ i30 x 29" wheel, 148 x 12mm, 32h, 6-Bolt, SRAM XD | 29" |
Rear |
148x12mm | 32-hole / 6mm | SRAM XD |
6-bolt |
30mm |
605 | 1427g | 330 lbs | W045-0265 |
*Frequency hub dimensions can be found on our Resources and User Manuals page.
**Wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.
Parameters
-
WTB
Manufacturer
WTB Europe
Perlová 69/9,
301 00 Plzeň, Česká republika
support@wtb.com
www.wtb.com - Product code W045-0266
- By discipline MTB
- Material Aluminium
