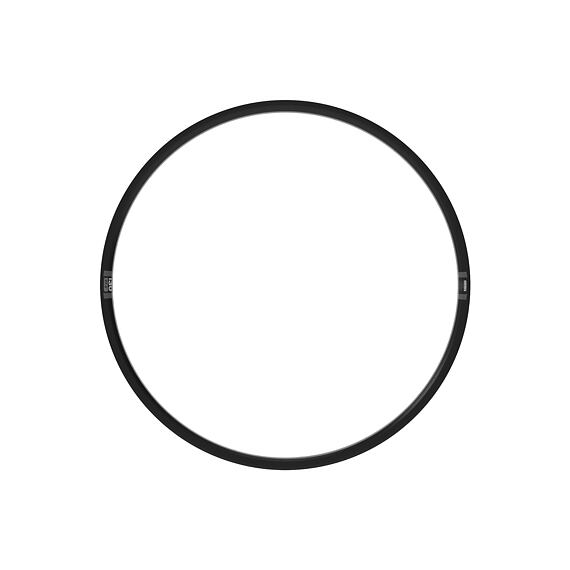

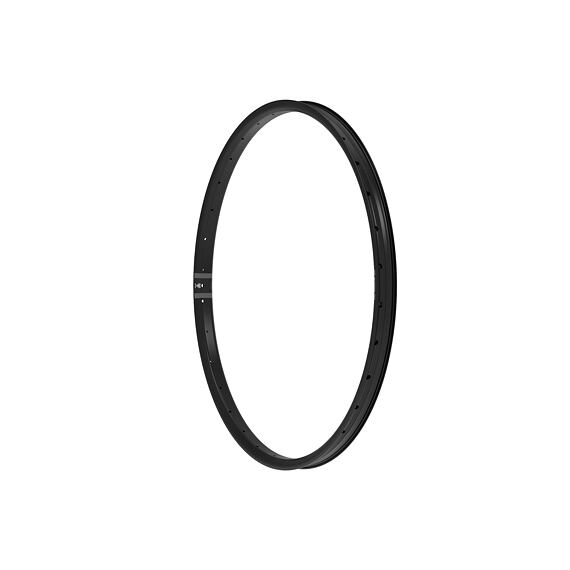

WTB rims HTZ i30 27.5" TCS 32 holes black
skladem na e-shopu
When will my order arrive?Description and specifications
Product description

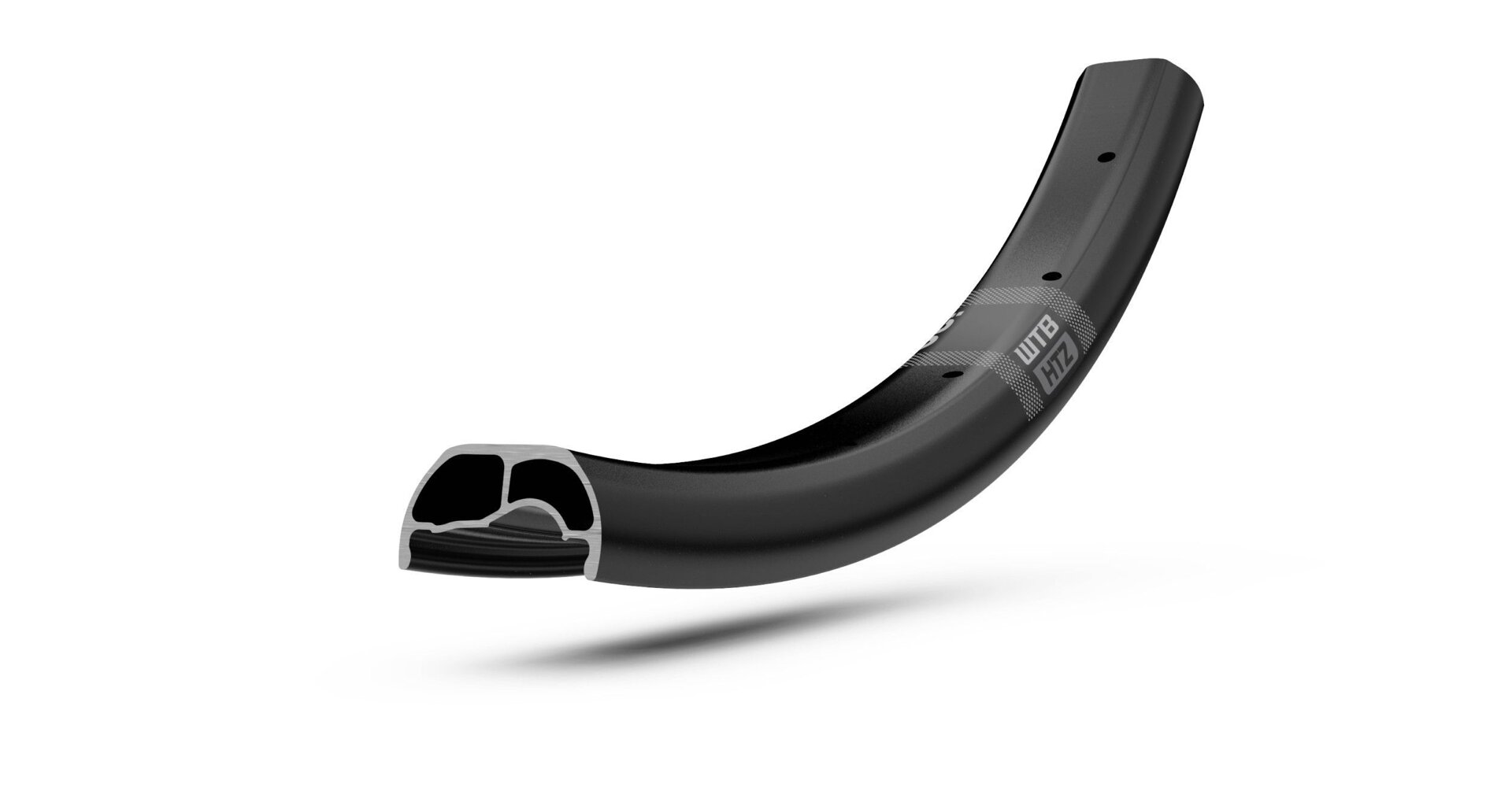

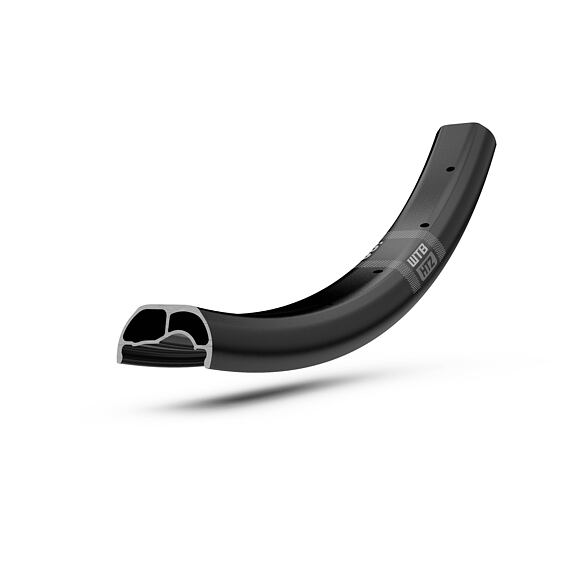

E-bikes add to the riding experience by providing more for less. More distance, more laps, more climbs and more descents. With all those “mores” also comes more weight continually bashing on the components of an e-bike. In order to combat the additional wear and tear of e-bikes, we designed our HTZ rims to be burlier in every imaginable way. The thickest rim walls we offer, a proven I-Beam center support, asymmetrical spoke hole drilling and dependable 6069 aluminum alloy deliver a bombproof rim that doesn't break the bank. HTZ i27 and i30 rims are the perfect choice for your e-assist trail, enduro or downhill bike.
USAGE: E-bike
SPECIFICATIONS: (Max spoke tension range: 110-120KgF)
| Wheel Size | Inner Width | *Weight | Spoke Holes / Offset | ERD | Tubeless Tape Width | Rim Size Designation | Part Number |
| 27.5" | 27mm | 622g | 32-hole / 4.5mm | 567 | 32mm | 27-584 | W020-0599 |
| 27.5" | 30mm | 678g | 32-hole / 6mm | 569 | 35mm | 30-584 | W020-0601 |
| 27.5" | 35mm | 718g | 32-hole / 7mm | 569 | 40mm | 35-584 | W020-0603 |
| 29" | 23mm | 626g | 32-hole / 2.5mm | 604 | 28mm | 23-622 | W020-0597 |
| 29" | 25mm | 645g | 32-hole / 3.5mm | 604 | 30mm | 25-622 | W020-0598 |
| 29" | 27mm | 660g | 32-hole / 4.5mm | 604 | 32mm | 27-622 | W020-0600 |
| 29" | 30mm | 718g | 32-hole / 6mm | 605 | 35mm | 30-622 | W020-0602 |
| 29" | 35mm | 768g | 32-hole / 7mm | 604 | 40mm | 35-622 | W020-0604 |
Parameters
-
WTB
Manufacturer
WTB Europe
Perlová 69/9,
301 00 Plzeň, Česká republika
support@wtb.com
www.wtb.com - Product code W020-0601
- Material Aluminium
