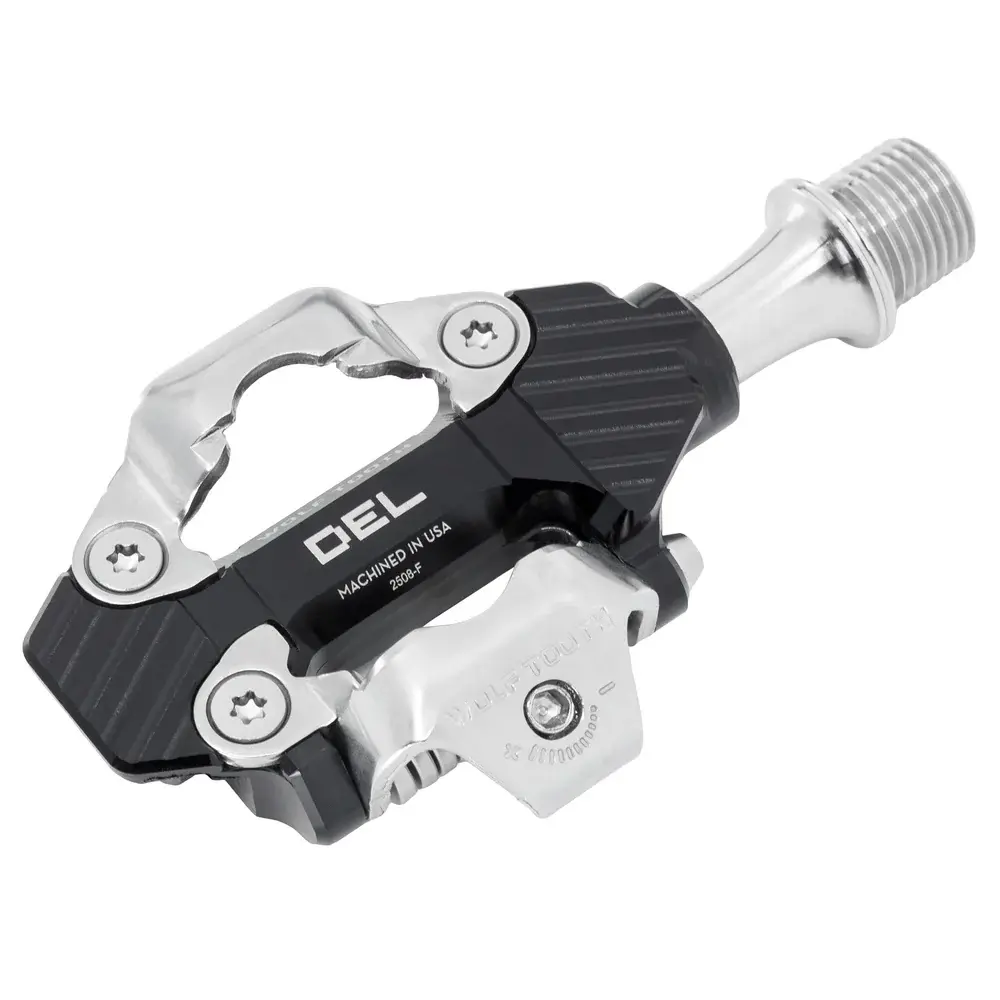

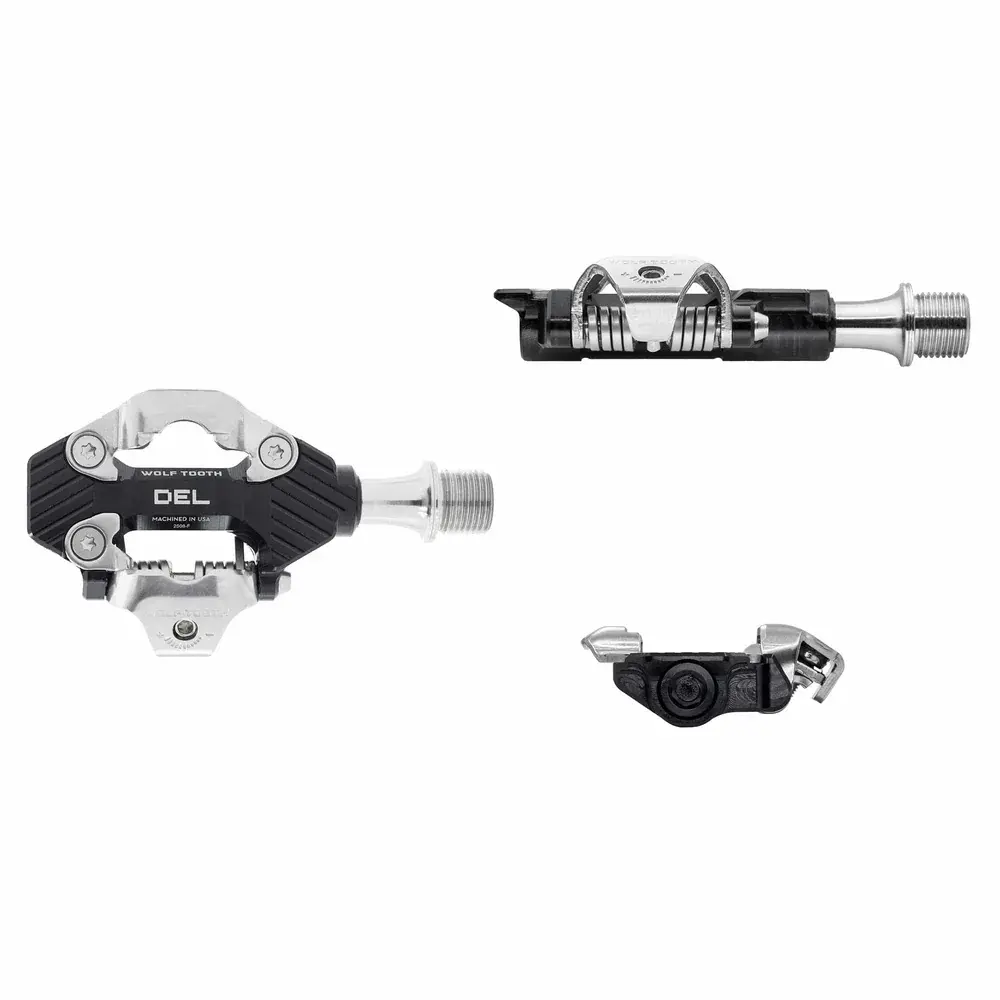

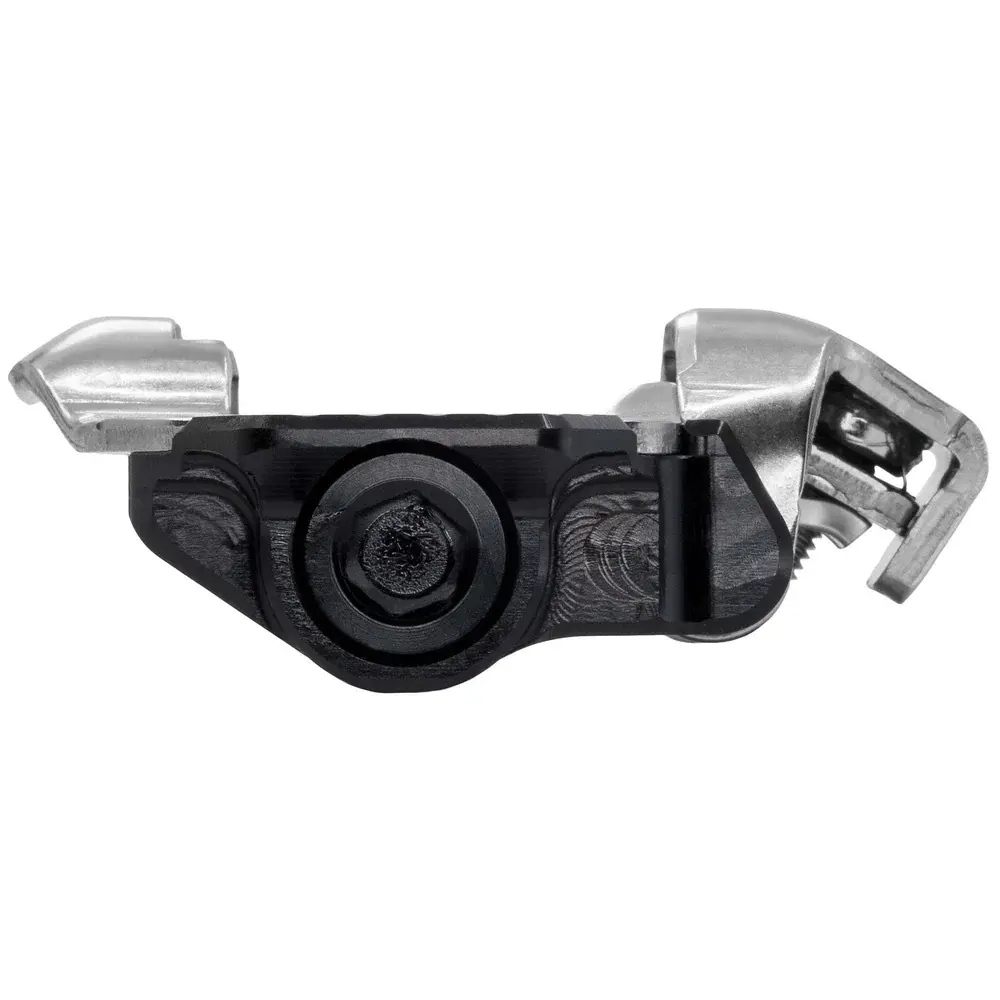

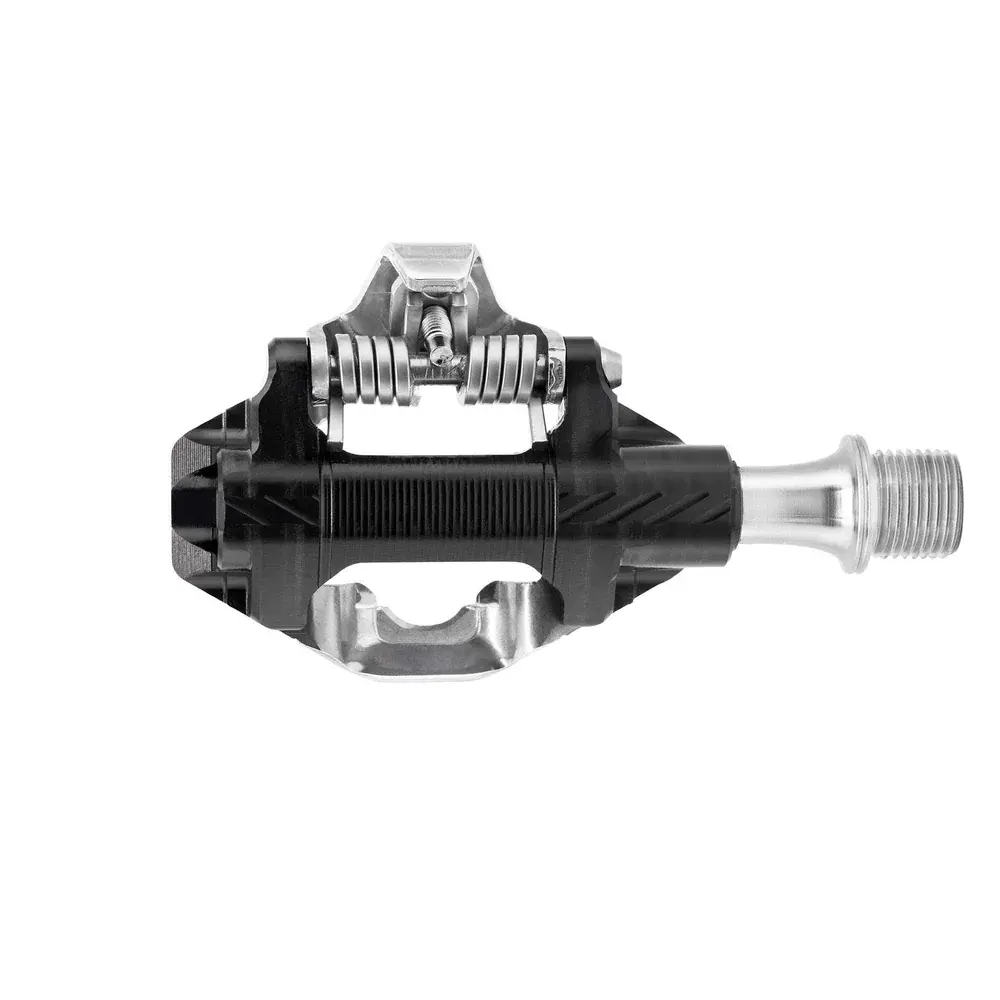

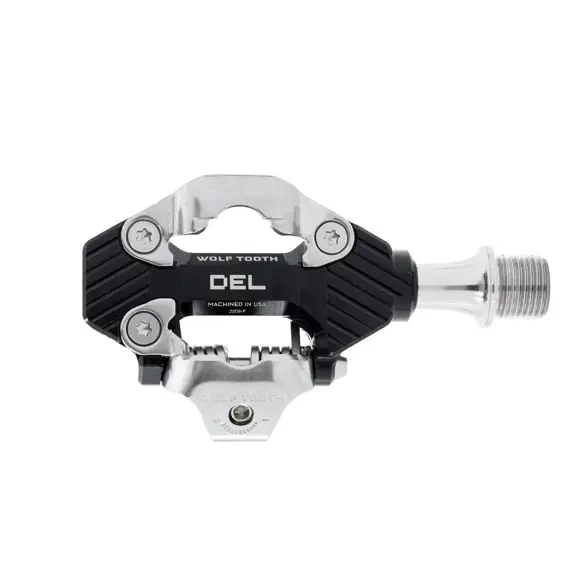

WOLF TOOTH pedals DEL Gravel Clipless black

Product description

The Wolf Tooth DEL Gravel Race clipless pedals feature a single-sided design for maximum speed and stable performance in gravel racing. These SPD- compatible pedals are exceptionally light – weighing just 216g – yet offer a large platform for maximum power transfer. This gives you a ride feel close to road pedals, but with a shoe and cleat system that won’t let you down in any condition. The single-sided, open-center design also ensures perfect self-cleaning in mud.

Adjustable Q-factor (pitch)

The DEL Gravel Race pedals offer a unique Q-factor adjustment in 4mm increments. Inside the pedal is a stainless steel axle, three bearings and two spacers. By rearranging these spacers and bearings (which anyone can easily do at home), you can set the Q-factor to 51, 55 or 59mm. For even finer tuning (53 and 57mm), an additional set of spacers is available. As with other Wolf Tooth products, spare parts are available under the Right to Repair program.

Why are they better than the competition?

• Thinner profile: At just 14.7mm tall, they're lower than the competition (Shimano XTR 9200: 16.5mm, Eggbeater 3: 17mm), meaning a lower center of gravity and better stability.
• Extremely light: Weight only 216 g (for comparison: Shimano XTR 9200 weighs 316 g).
• Huge contact area: 559 mm² area ensures unrivaled power transmission (XTR 9200 has only 144 mm²).

Technical specifications

• Q-factor: Adjustable 51, 55 and 59 mm (factory set to 55 mm).
• Float: 5 degrees | Release angle: 12 degrees.

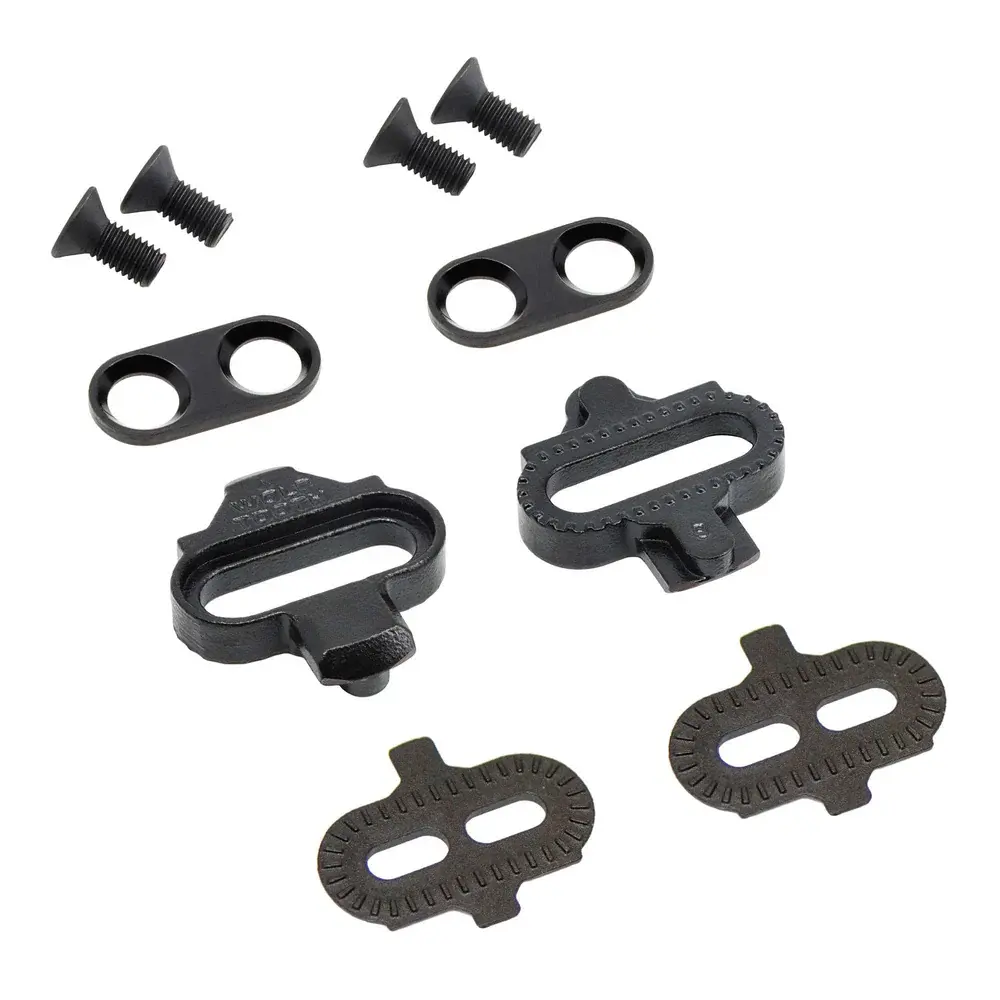

• Compatibility: SPD type shoes.

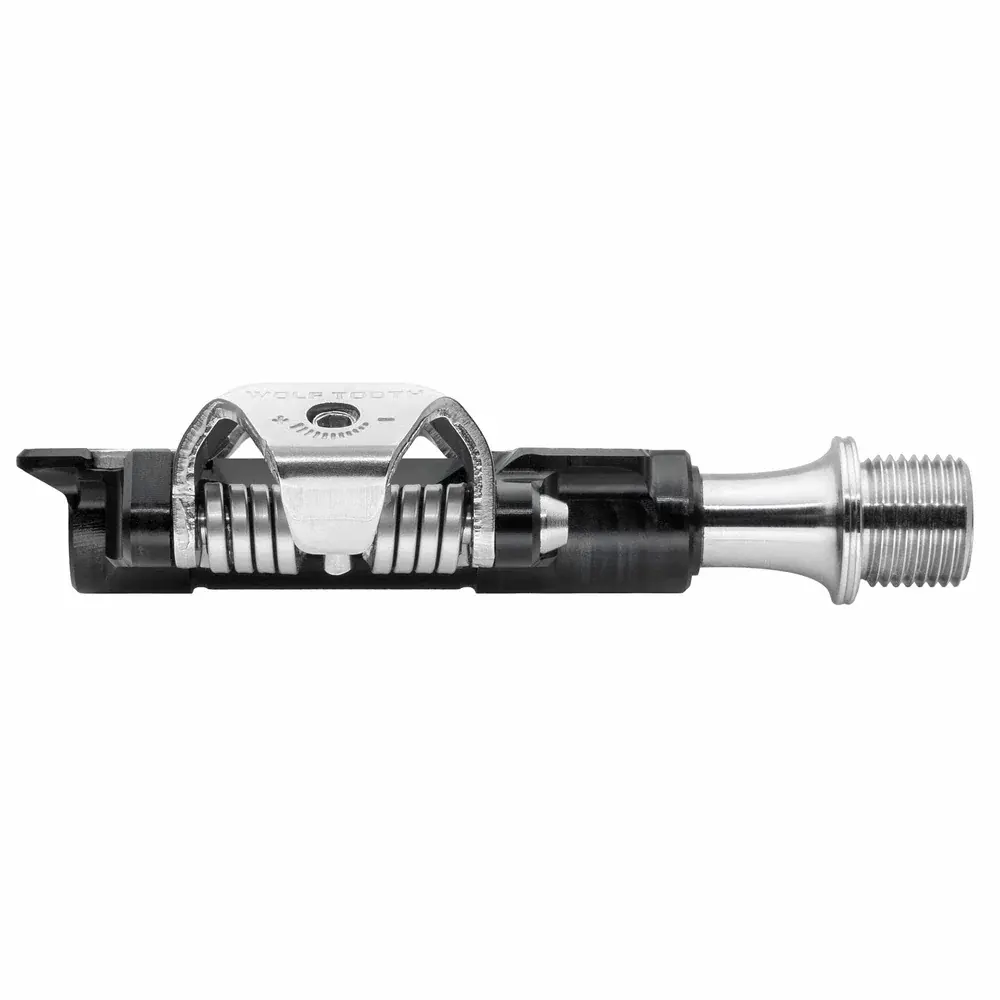

• Construction: Proven axle and bearing design taken from Waveform platform pedals.
• Origin: Designed, tested and manufactured in the USA (Minnesota).
