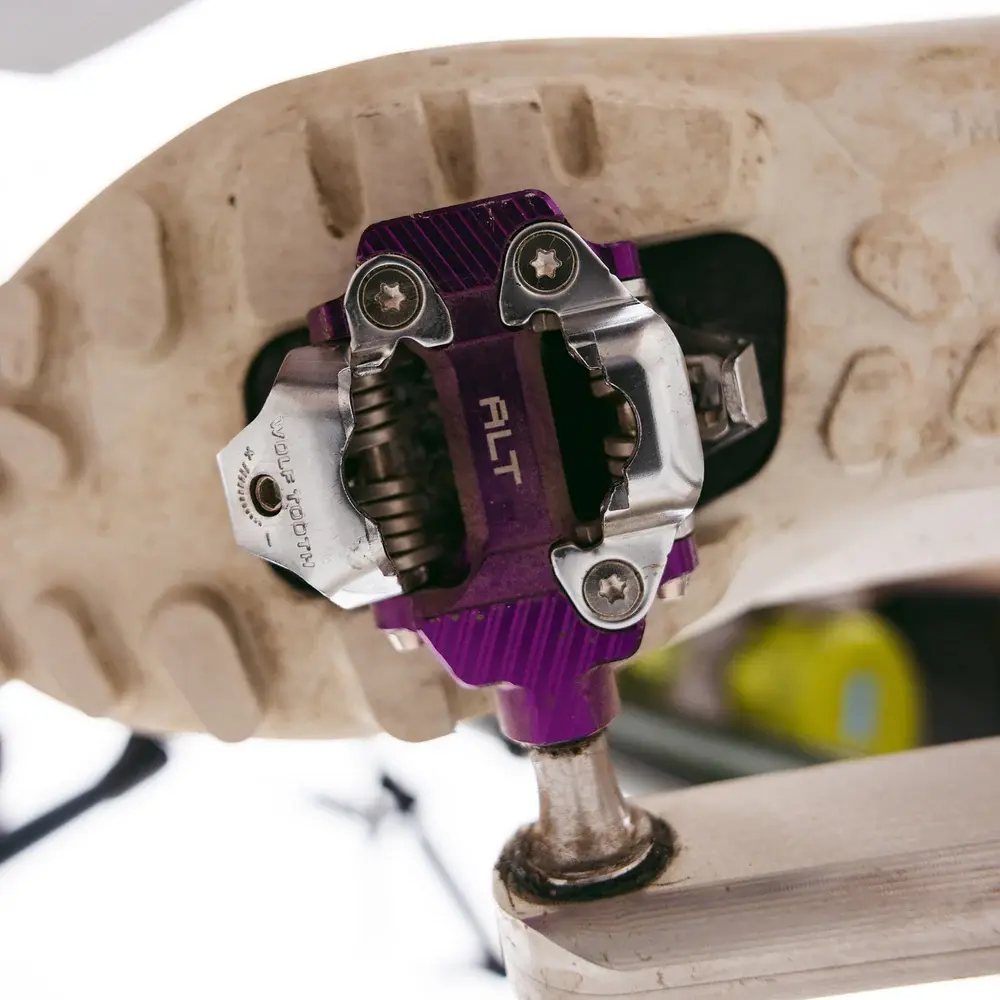

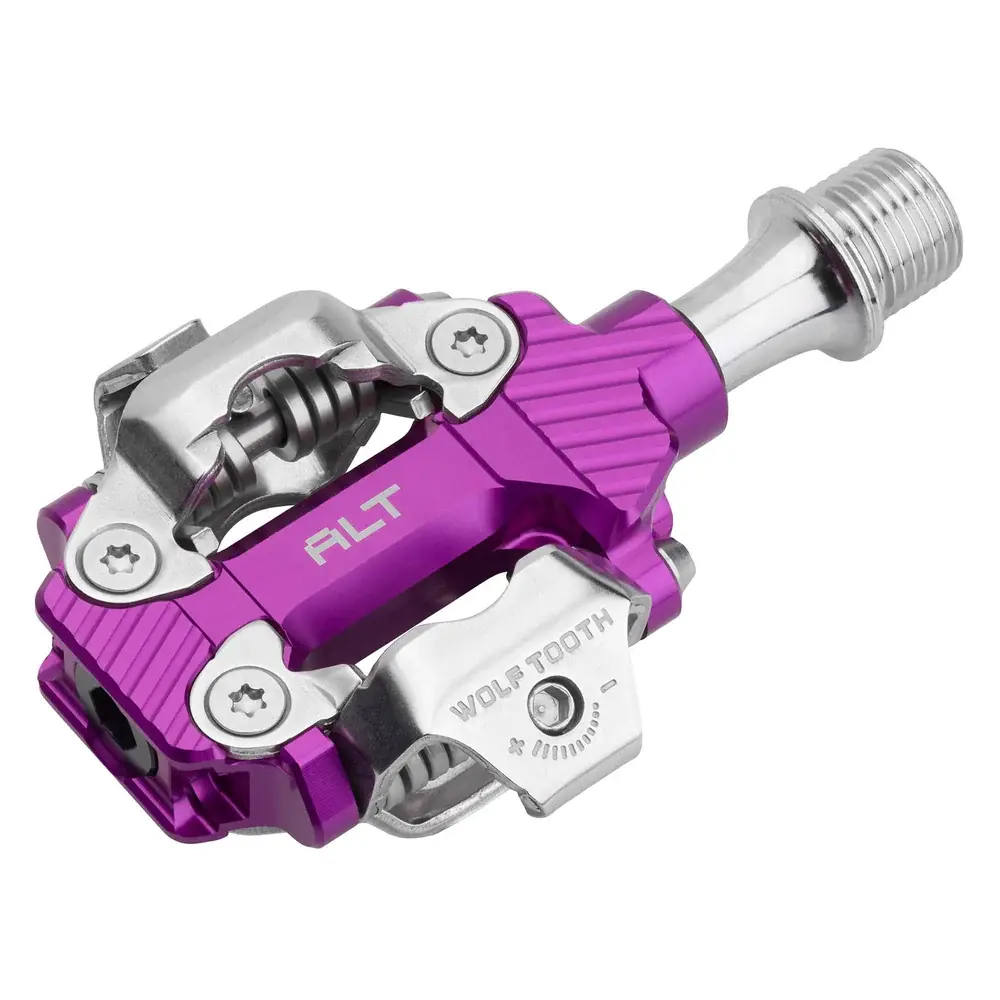

WOLF TOOTH pedals ALT XC Clipless Ultraviolet Purple

Product description

WOLF TOOTH introduces a completely new family of SPD-compatible clipless pedals (CTRL + ALT + DEL). The three models (Trail / XC / Gravel) share a sleek profile, an oversized contact area, and the ability to customize the Q-factor. Naturally, they feature technical precision, attention to detail, and easy serviceability.

Wolf Tooth named its new project eloquently: “CTRL + ALT + DEL.” The symbolism of the keyboard shortcut, which triggers a “hard RESTART” on Windows computers, essentially expresses the same idea: a restart in the clipless pedal category!

The Wolf Tooth ALT model is clearly aimed at XC, marathons, and varied gravel courses, where durability and readiness are more important than saved grams.

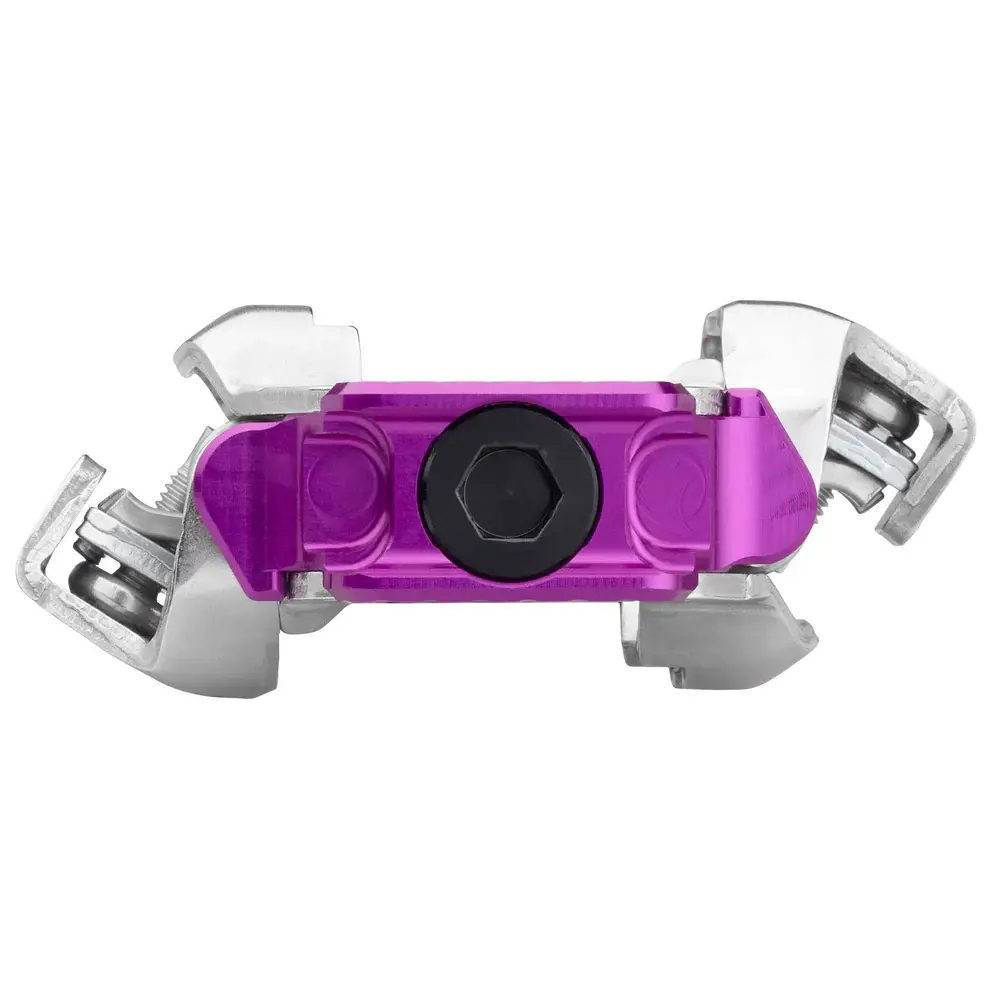

With only 294 g (per pair) and a platform area of 443 mm², it offers an excellent balance between competitive weight, an extra-slim profile (only 15 mm), and exceptionally efficient power transfer. Thanks to rigorous CNC machining, and thus excellent clearance, it is also immune to mud buildup, ensuring it functions even in the worst conditions, from winter snow to summer dust.

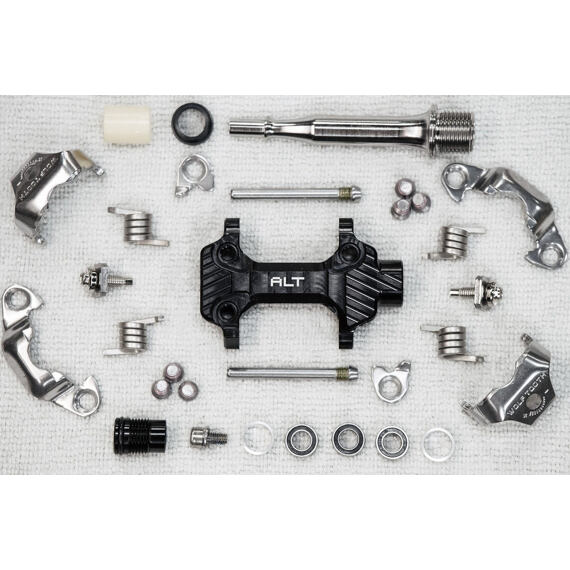

The ALT pedals feature an adjustable Q-factor in 4 mm increments. Inside the pedal are a stainless steel axle, three bearings, and two washers. The washers and bearings can be rearranged for a Q-factor of 51 mm, 55 mm, or 59 mm. This is simple enough for anyone to do at home. For further fine-tuning of the Q-factor, a washer kit containing four 2mm washers is available. As with most Wolf Tooth components and accessories, replacement parts and service guides are available through the Wolf Tooth Right to Repair pages.

Key Features

• Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm).
• Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g).
• Larger platform area than the competition at 345 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²). (Note: The source provided two different area numbers, 443 mm² and 345 mm², in the Czech text. The 345 mm² from the comparison list was used here for consistency.)
• Adjustable Q-factor of 51 mm, 55 mm, and 59 mm. Pedals are shipped in the 55 mm position.
• 5 degrees of float | 12 degrees release angle.
• SPD compatible.
• Proven axle and bearing design from the Waveform flat pedals.
• Designed, tested, and machined at Wolf Tooth in Minnesota, USA.

Specifications

• Weight: 294 g
• Materials:

• Body: CNC Machined 6061-T6 Aluminum
• Axle: Heat-Treated 17-4 PH Stainless Steel
• Mechanism (Cage): Stainless Steel
• Hardware (Screws): Stainless Steel

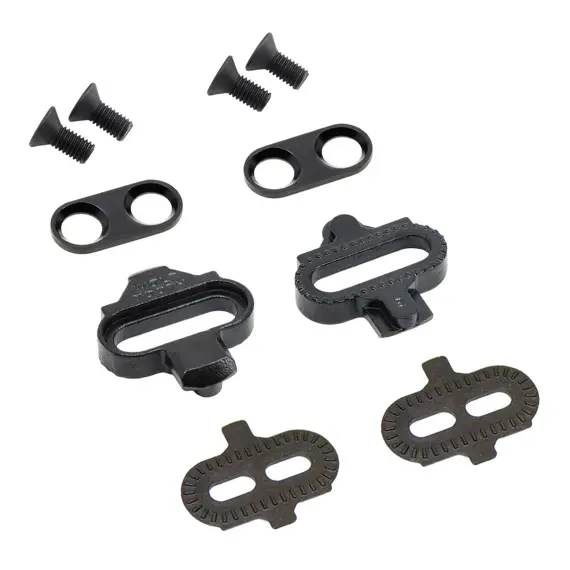

• Package Contents: Pedals, Cleats with washers and screws
• Manufacturing: Machined in the USA
