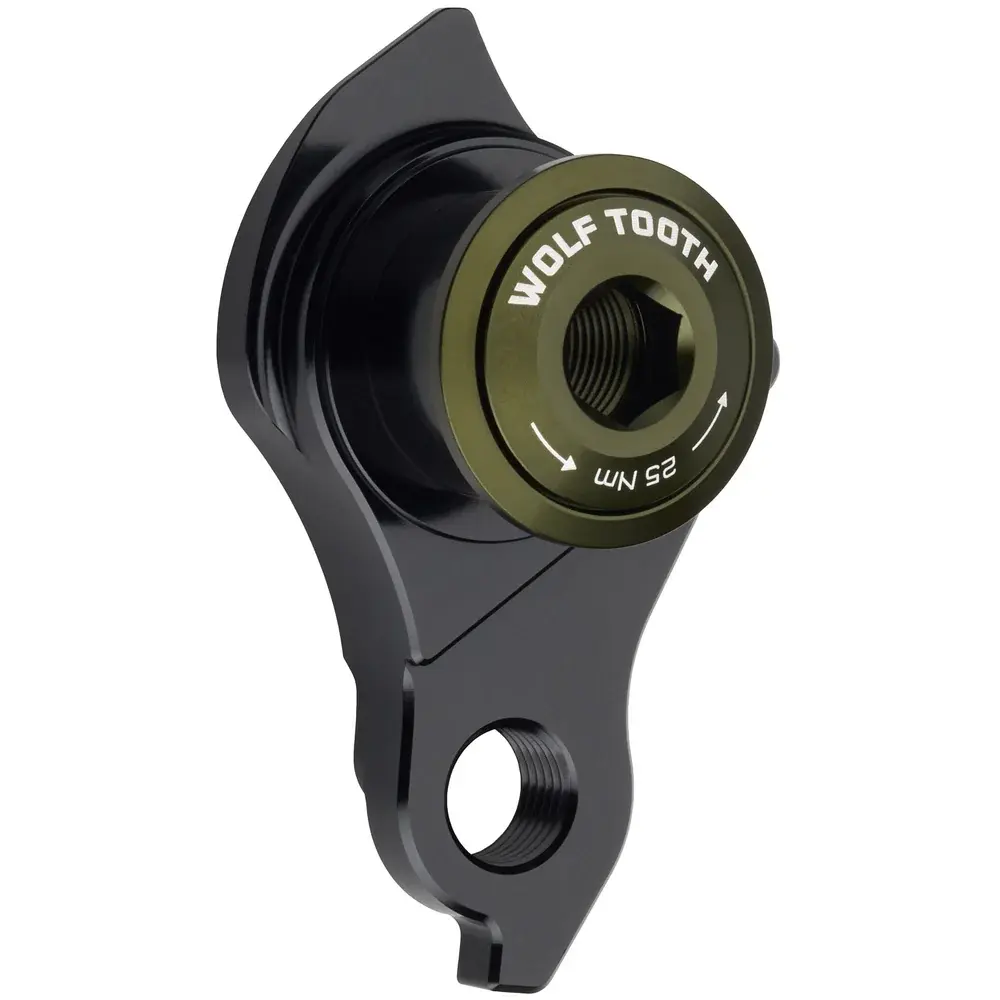

WOLF TOOTH foot UDH olive

Product description

This Universal Wolf Tooth (UDH) dropout was designed to unify thousands of different dropouts into one universal design that connects the derailleur to the frame. It is fully compatible with all frames designed for the SRAM UDH standard and allows the installation of all standard derailleurs (except Full Mount) from SRAM, Shimano, Campagnolo, TRP and more.

The main advantages include improved shifting accuracy and a significantly stronger construction compared to conventional dropouts. The Wolf Tooth dropout is a premium aftermarket component designed to replace the stock plastic/aluminum dropout supplied with the frame. The bolts and washers are available in 9 colors to perfectly match other anodized Wolf Tooth accessories.

Key features

• Full CNC construction: Made entirely of aluminum for maximum rigidity.
• Impact Protection: Designed to pivot backwards in the event of a fall, helping to prevent damage to the derailleur or frame.
• Meets the requirements for Shimano XTR Di2 M9200 thanks to its all-metal construction.

Compatibility

• Compatible with frames designed for the SRAM Universal Derailleur Hanger (UDH) standard.
• Suitable for road, gravel, mountain (MTB) and electric bikes (eMTB).
• NOT compatible with SRAM Transmission (Full Mount) sets that do not use a dropout.
• NOT compatible with Trek bike models equipped with ABP.
• Designed for axles with M12x1.0 thread pitch (axle not included).

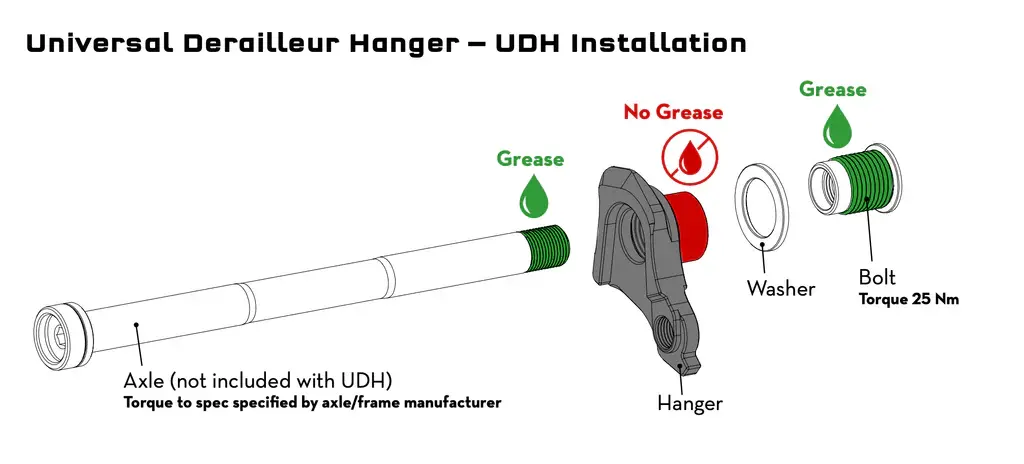

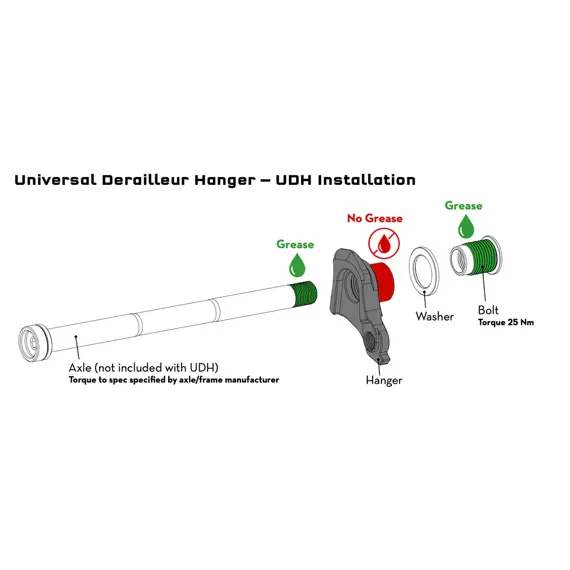

Construction

• Lubricate the screw and axle threads.
• Do not lubricate the body of the foot itself.
• Tightening torque of 8mm Allen screw: 25 Nm.
• Tighten the rear axle according to the frame/axle manufacturer's specifications.

Technical specifications

• Weight: 32g
• Material: Foot – 6061-T6 aluminum | Washer and screw – 7075-T6 aluminum
• Colors: Can be matched with Wolf Tooth Color Shop accessories.
