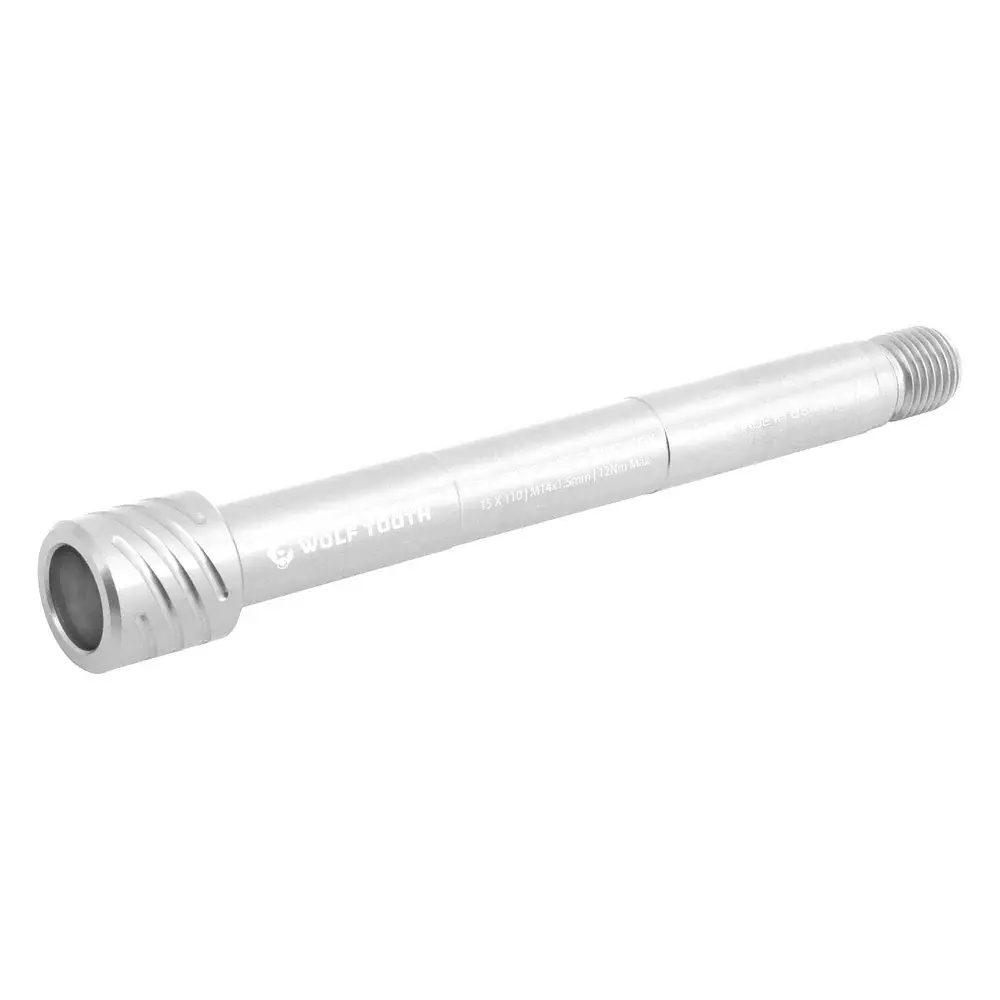

WOLF TOOTH Floating Axle for Fox Suspension Forks raw silver

Product description

The Wolf Tooth Floating Axle front axle is designed to provide all the benefits of the Fox Floating Axle System, but in a lightweight design. Engineers have removed all excess material from the oversized 21mm head tube that Fox forks require. The result is a strong, robust and precise connection between the hub and fork without any weight compromises.

Main advantages

• Lightweight design: Hollow axle head for weight saving.
• Easy assembly: Interface for 6mm Allen key.
• Optimized design: Designed specifically for Fox 36 and 38 series forks with 15x110mm Boost hub spacing and floating axle system.

Compatibility

• These axles are ONLY compatible with Fox 36 and 38 forks manufactured from 2021 onwards.
• They are NOT compatible with Fox 32, 34, 36SL, 40 series or older Fox 36 and 38 models manufactured before 2021.

Technical specifications

• Weight: 44g
• Material: Aluminum 7075 T6
• Diameter: 15 mm
• Thread specification: M14 x 1.5mm
• Total length: 136 mm
• Hub spacing: 15x110 mm (Boost)
• Tightening torque: 12-15 Nm (for axle body)
• Made in the USA
