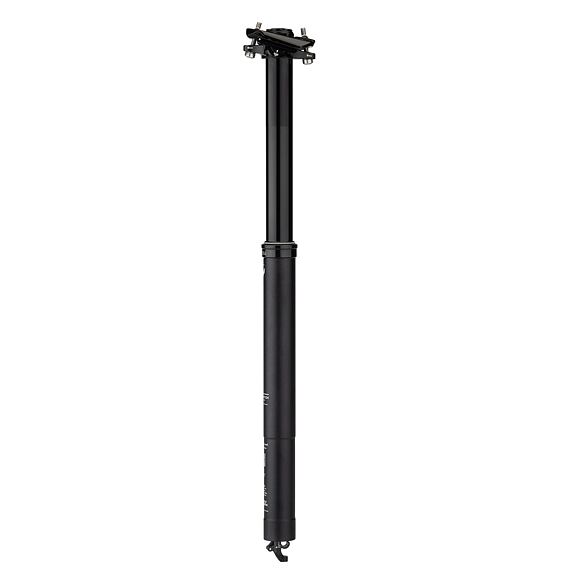

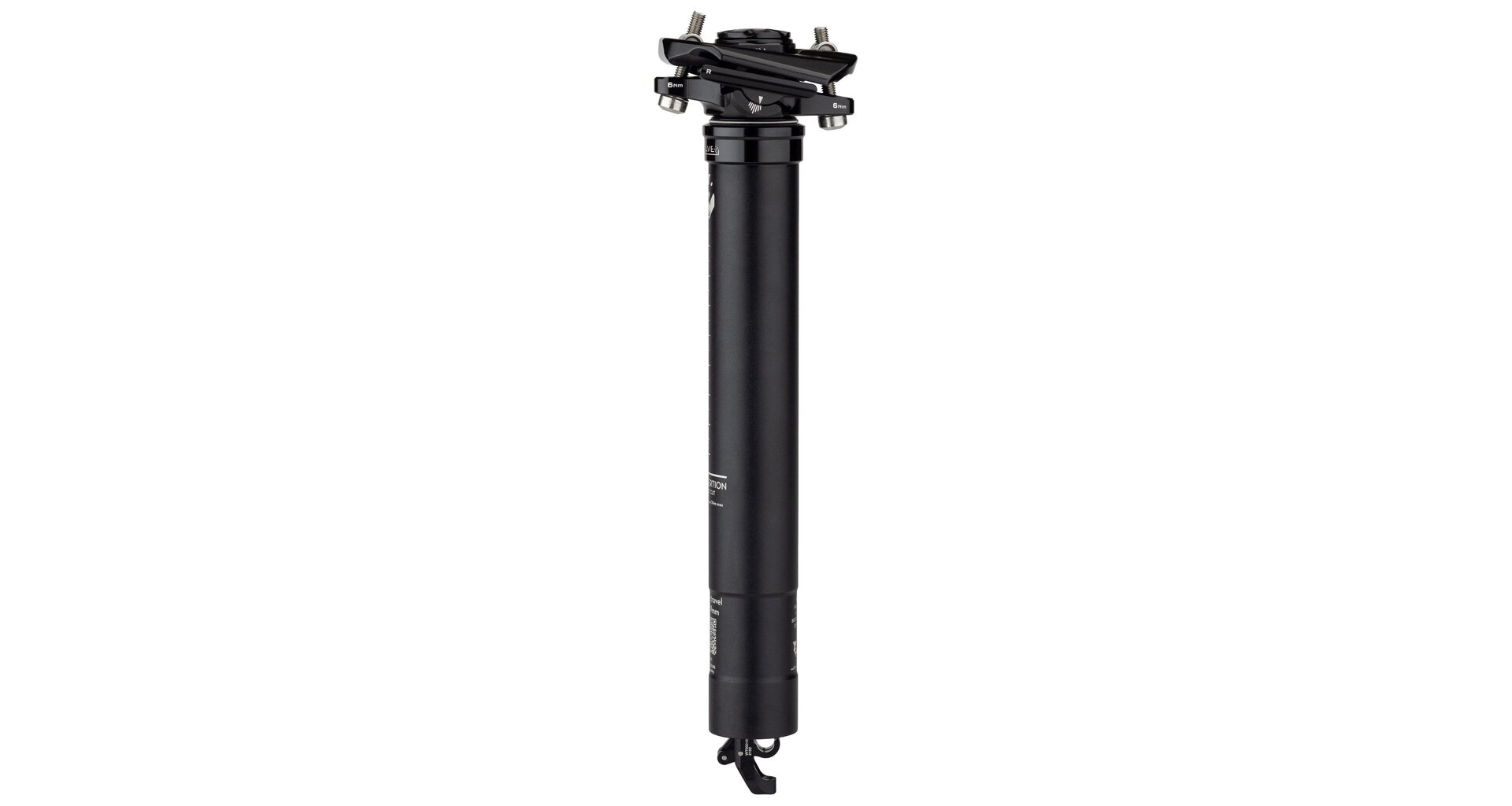

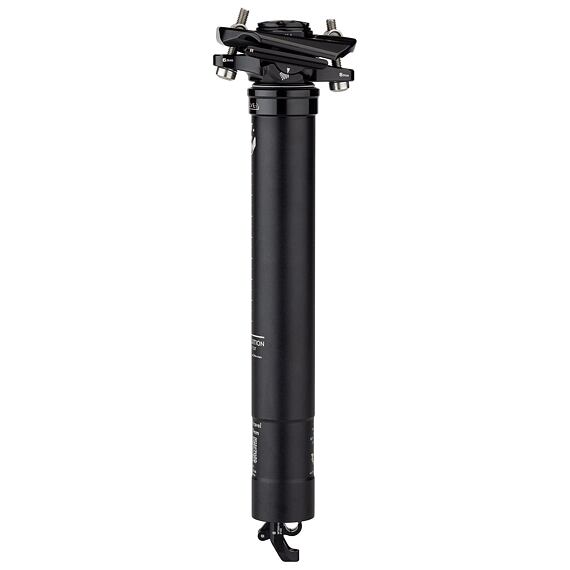

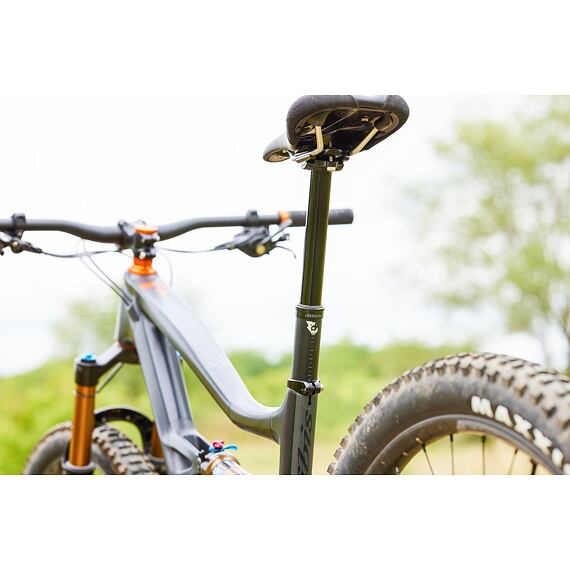

WOLF TOOTH dropper seatpost RESOLVE 30.9x200mm

Product description

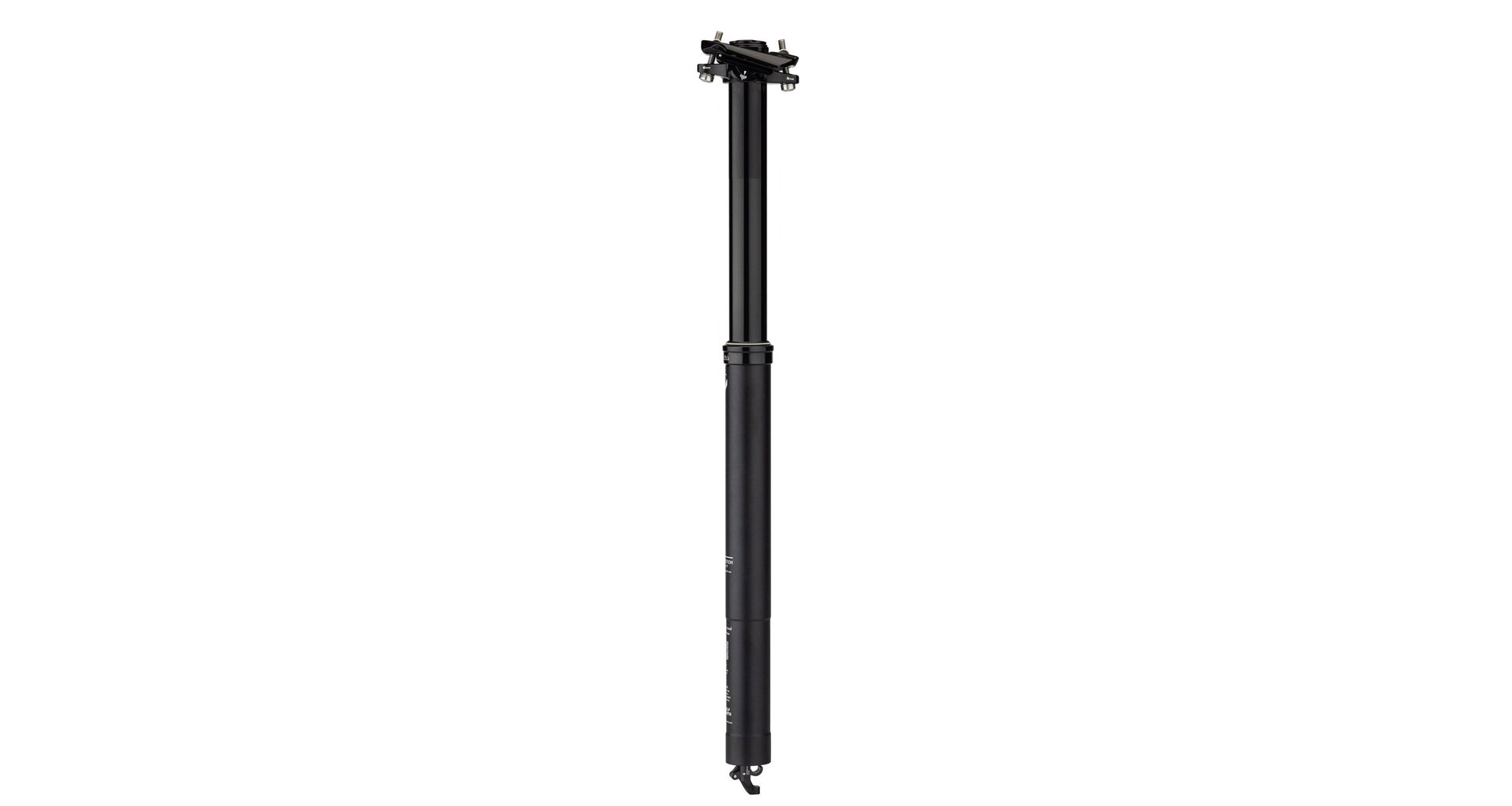

The Wolf Tooth Resolve Dropper Post is the first dropper post to use a self-bleeding cartridge. It has the shortest stack height of any dropper post on the market, has a short insertion depth, is one of the lightest dropper posts, and is completely serviceable at home via the Wolf Tooth Right to Repair program.

Compatibility:

• Compatible with bike frames that use 30.9mm or 31.6mm diameter seatposts with internal cable routing for dropper posts.
• A 31.6mm diameter post with a seatpost shim can be used for bike frames that use 34.9mm diameter seatposts. Shims are NOT included with the seatpost.

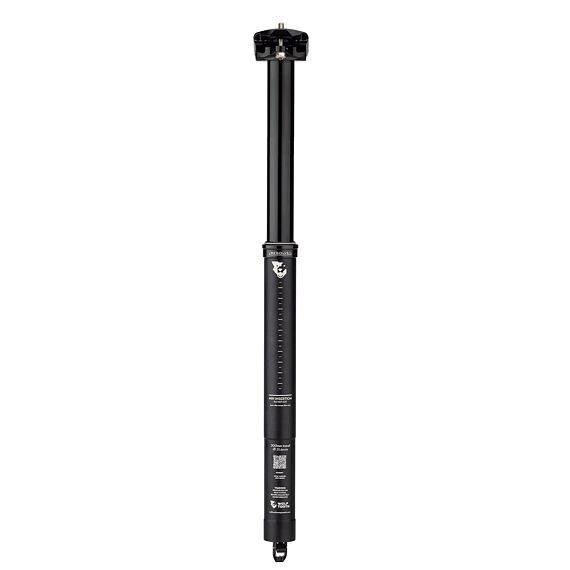

• The minimum insertion depth is clearly marked on the Resolve Dropper Post lower tube and varies between 90 and 140 mm. Always follow the minimum insertion depth recommended by your bike frame manufacturer if it is greater than the number marked on your dropper post.
• Spacers can be installed to reduce the travel of the dropper post. Custom built dropper posts can be purchased with spacers installed at the factory.
• Compatible with any ebike that uses a conventional dropper post mounting and actuating system.

Specifications:

• Included in box: Dropper seatpost, cable and housing kit, cable barrel, XZN-16 socket
• Weight (post only):  125 x 30.9 - 440g, 125 x 31.6 - 456g, 160 x 30.9 - 490g, 160 x 31.6 - 513g, 200 x 30.9 - 544g, 200 x 31.6 - 563g
• Stack Height (Extended Length - Travel): 32mm

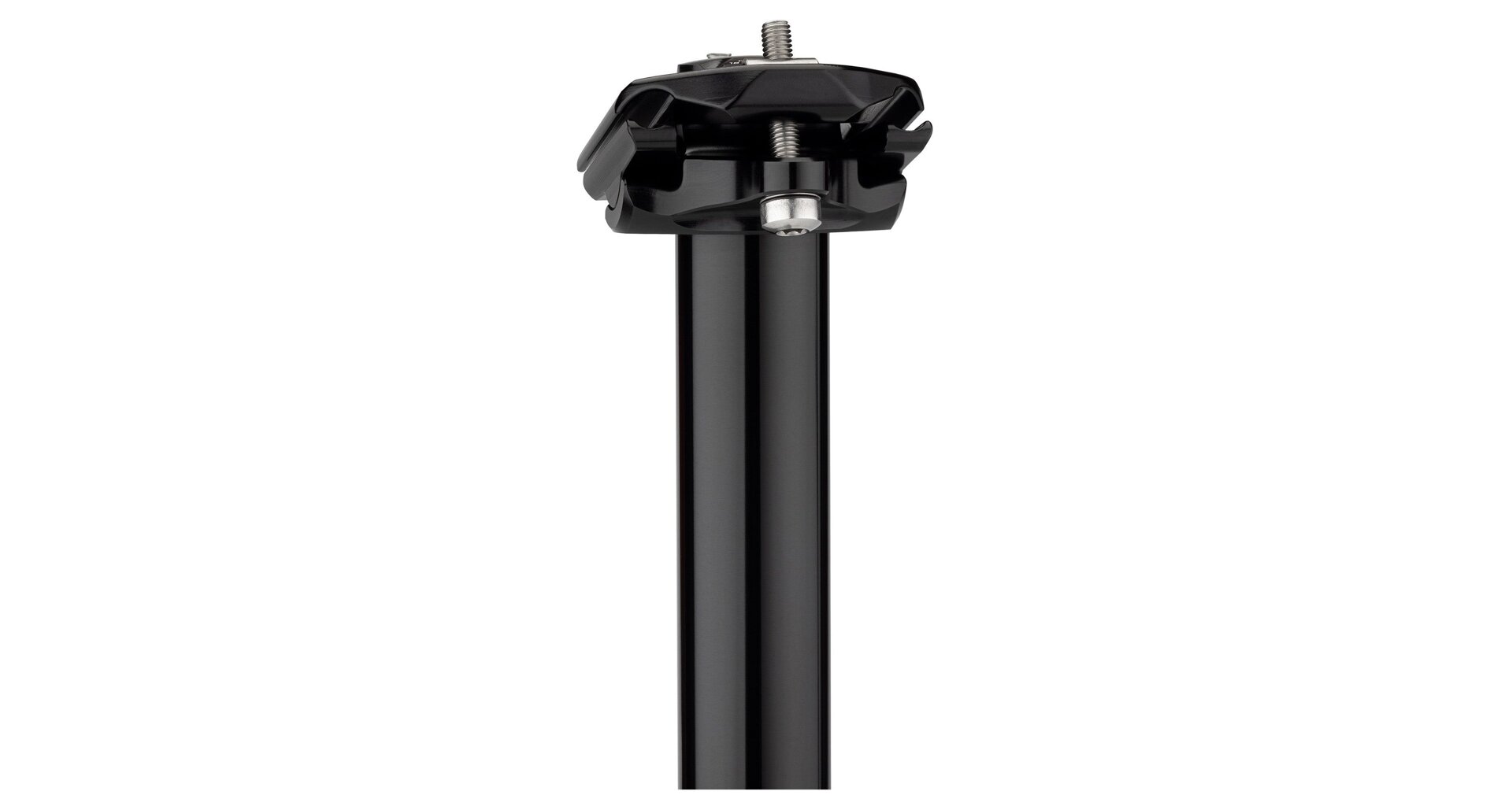

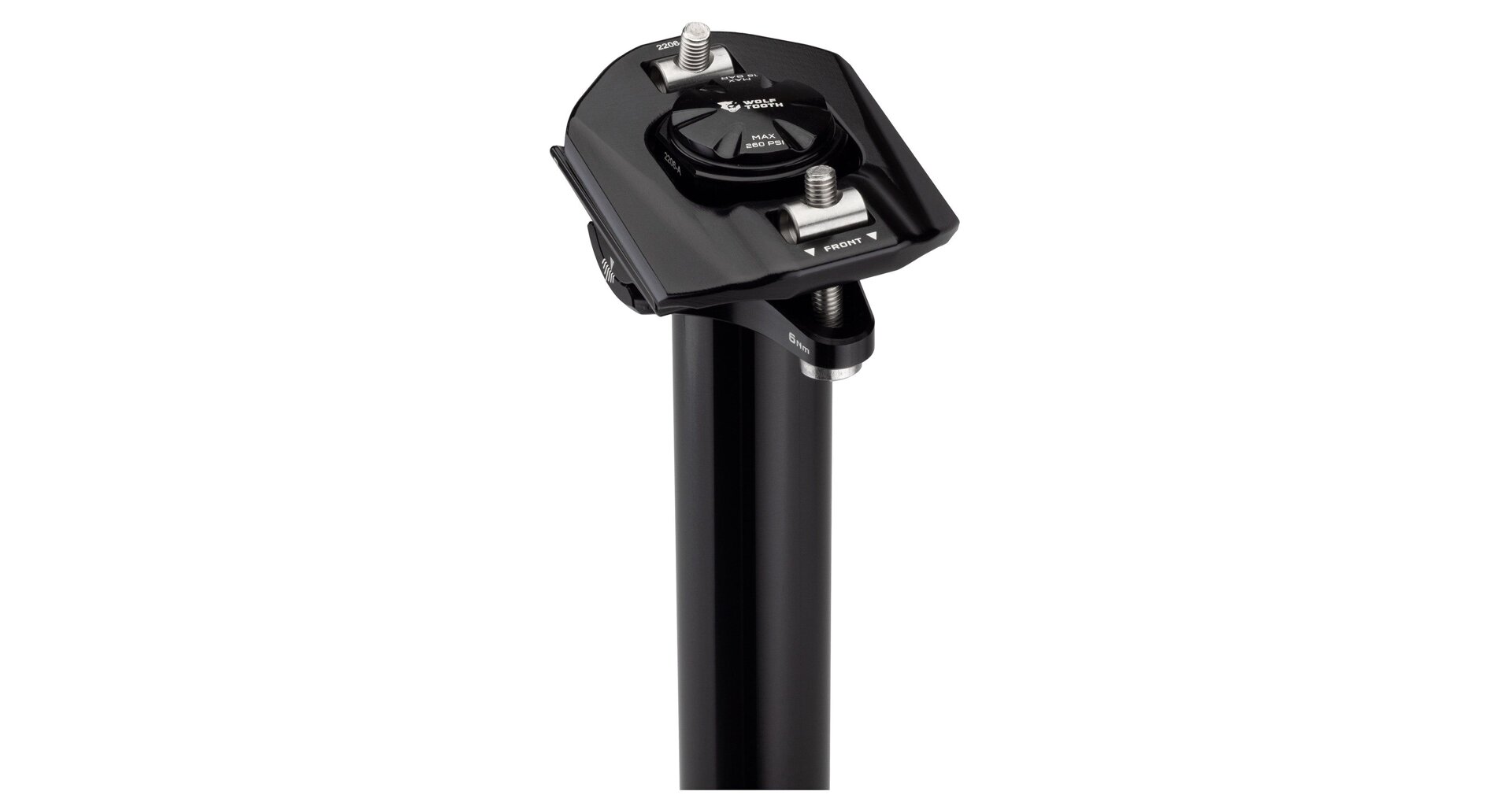

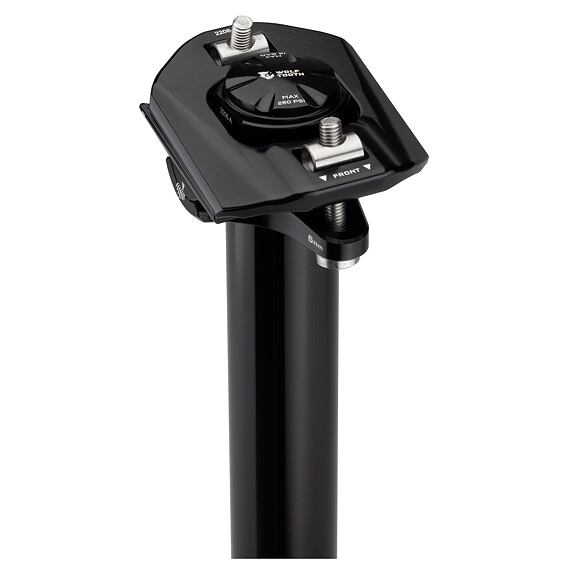

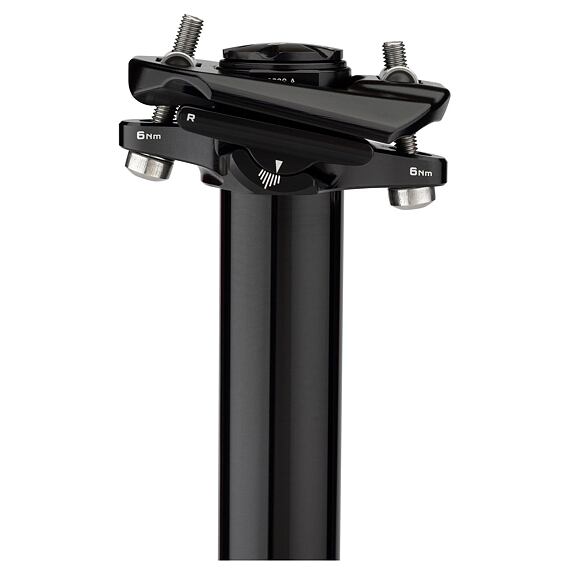

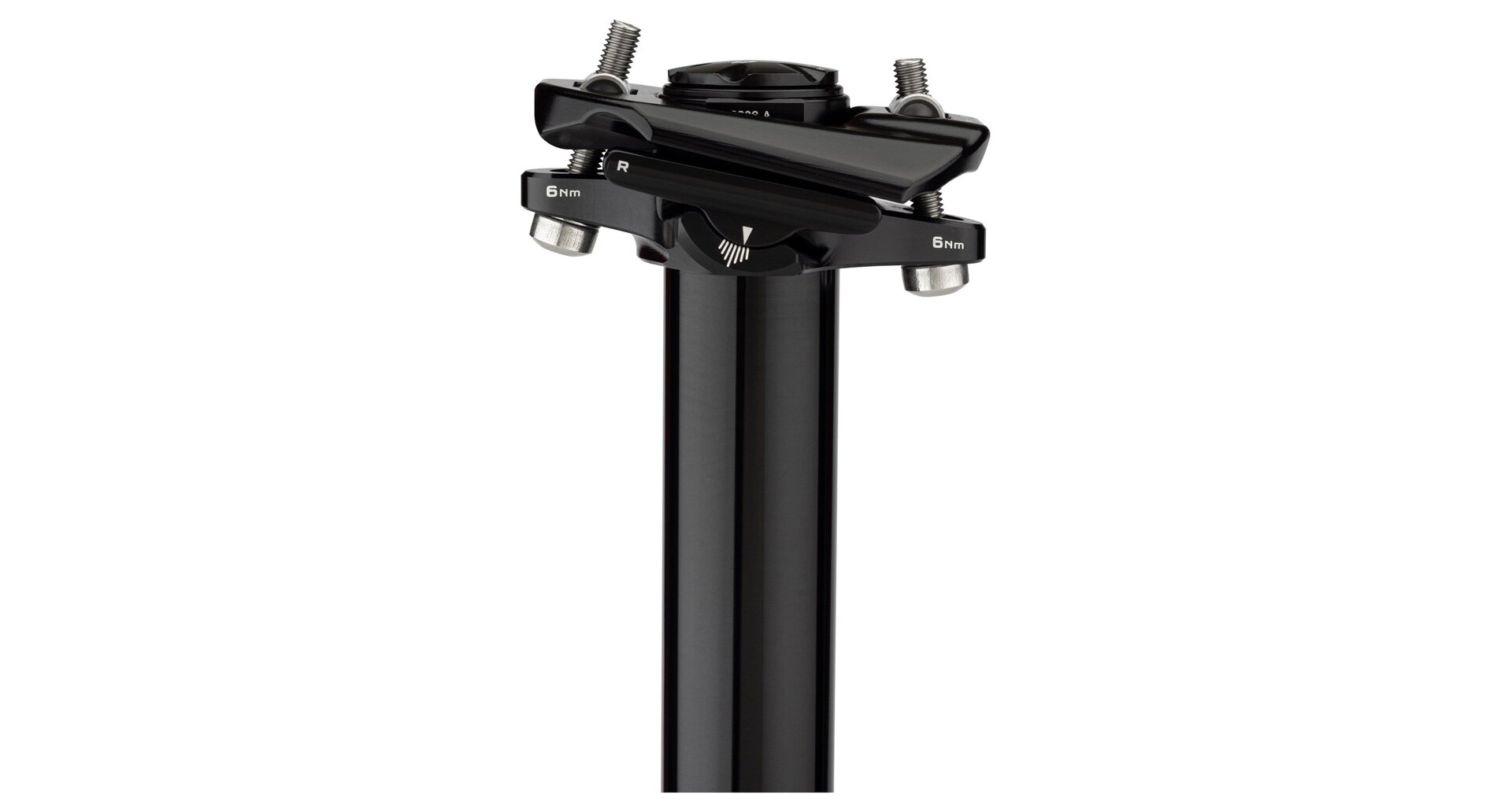

• Saddle Rail Clamp Bolt Torque: 6Nm
• Seatpost Clamp Max Torque: 30.9mm - 4 Nm, 31.6mm - 5 Nm
• Rider Weight Limit: 120 kg / 264 lbs
• US patent 10,933,935
• US patent 11,235,827
• US patent 11,383,780
• Other patents pending
