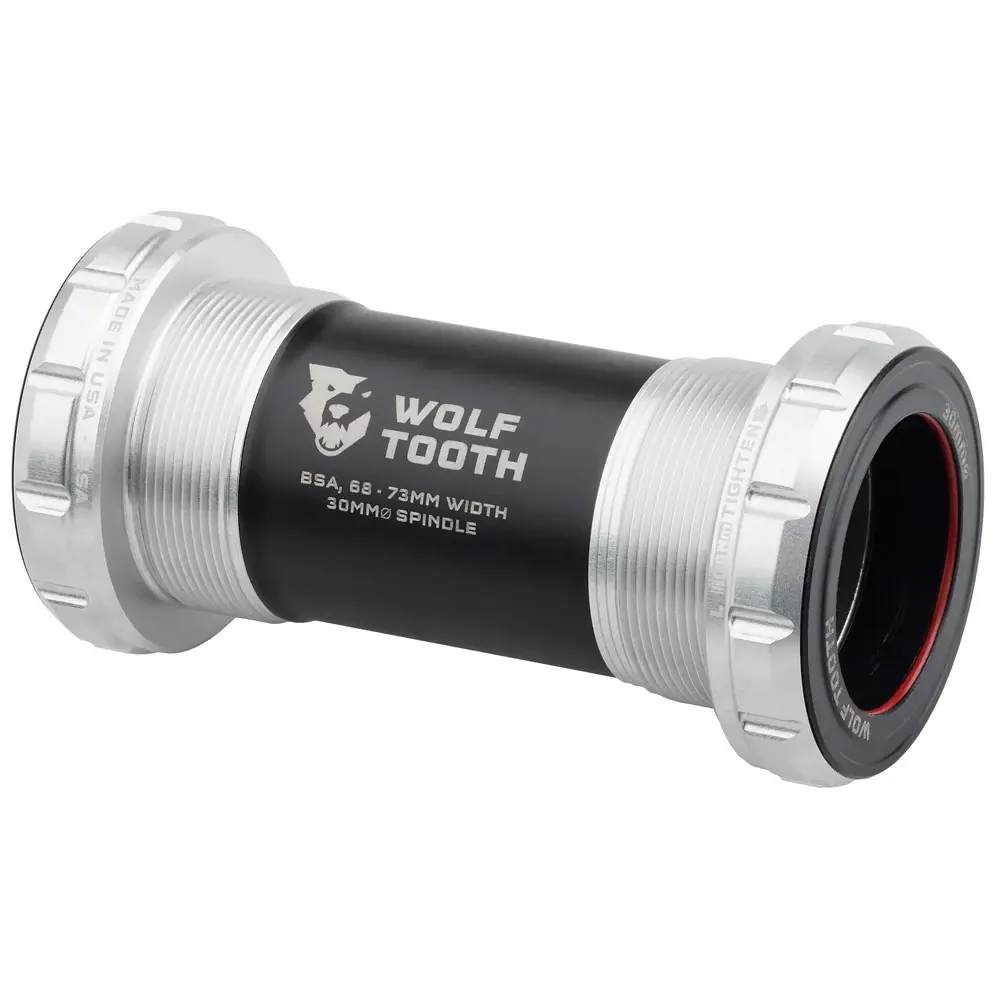

WOLF TOOTH bottom bracket BSA 30mm Raw Silver

Product description

Wolf Tooth BSA bottom brackets are designed with smoothness, durability, light weight and ease of service. Our ground-up design uses custom bearings, seals, bushings and cups to eliminate annoying squeaks. The system combines best-in-class weather protection with optimized radial bearing compression and precise preload for minimal drag. Available for 24mm (Shimano), 29mm (DUB) and 30mm axles, the brackets come in four colors to coordinate with other Wolf Tooth Color Shop accessories.

Premium bearings with a unique finish Wolf Tooth bearings use a specific design where the balls and races are made of hardened chrome bearing steel. This has a higher surface hardness than stainless steel, which increases the life of the races and reduces rolling resistance and noise. In addition, the bearing races are coated with ACOSUR ZNA, which provides corrosion resistance comparable to or better than stainless steel (verified by a 500-hour salt bath test). By eliminating metal-to-metal contact and sophisticated sealing, these compositions deliver top performance in any conditions.

Main advantages:

• Wide Compatibility: Suitable for cranks with 24mm, 29mm DUB and 30mm axles.
• Top-notch sealing: Maximum bearing protection from water, mud and dirt.
• Quiet operation: Custom polymer axle bushings eliminate squeaking.
• Standard mounting: Compatible with common tools (44-16 for 24mm; 46-12 for DUB/30mm).
• Lifetime warranty on bearings.
• Made in the USA: Designed, machined and assembled at Wolf Tooth's headquarters in Minnesota.

Package contents (spacers):

Bottom brackets are supplied with a complete set of shims for precise alignment:

• For socket: 2x 2.5 mm washer.
• For 24mm axle: washers 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm.
• For 29mm axle (DUB): washers 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm.
• For 30 mm axis: washers 2x 0.5 mm, 2x 1 mm, 2 mm, 3 mm, 5 mm.
