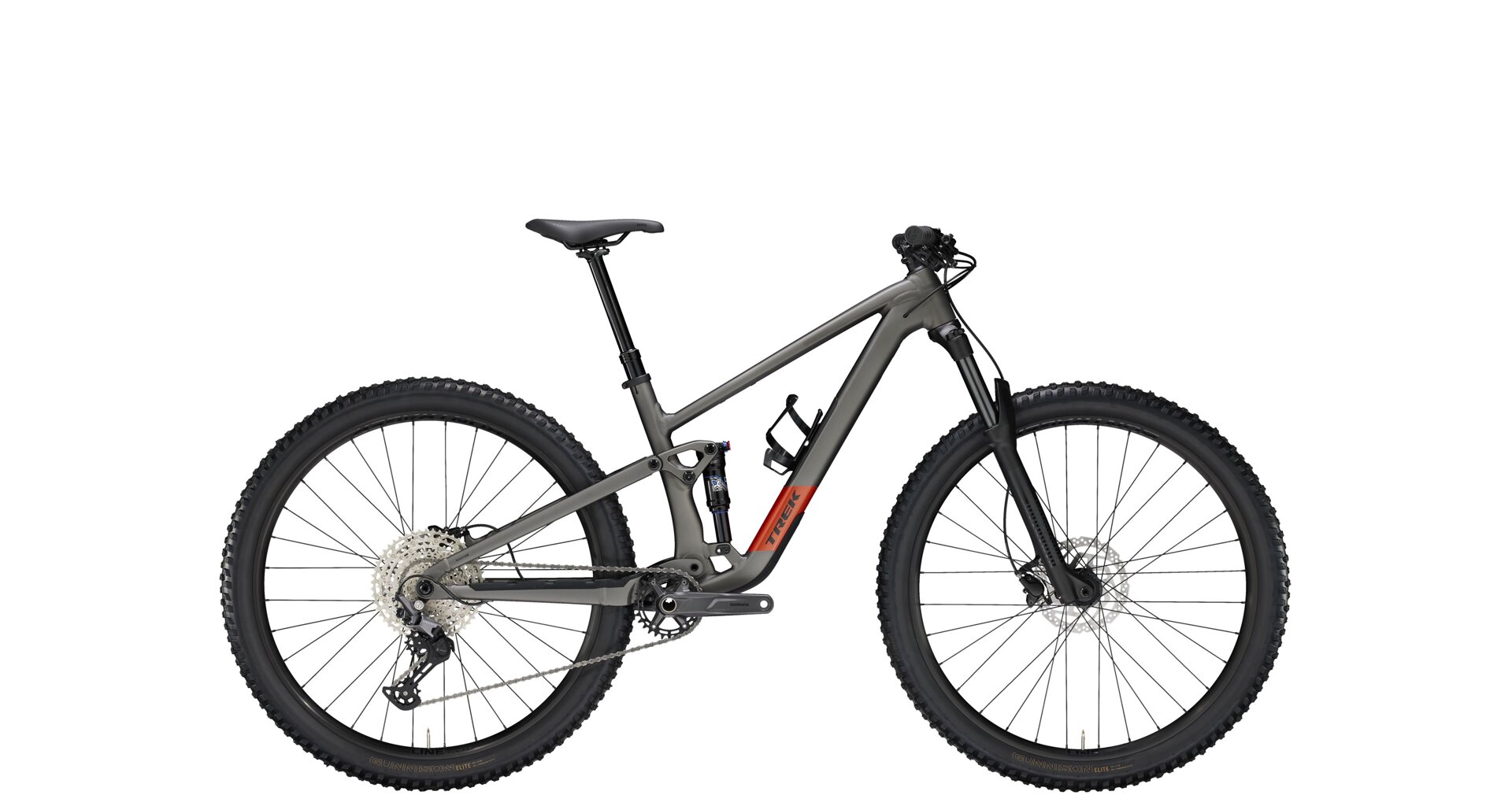

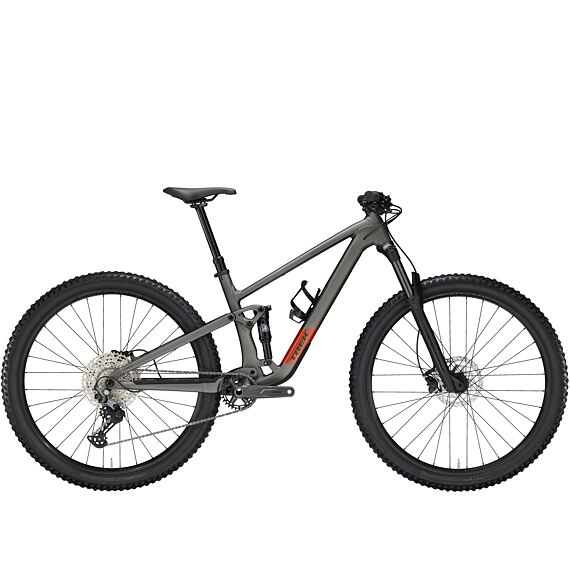

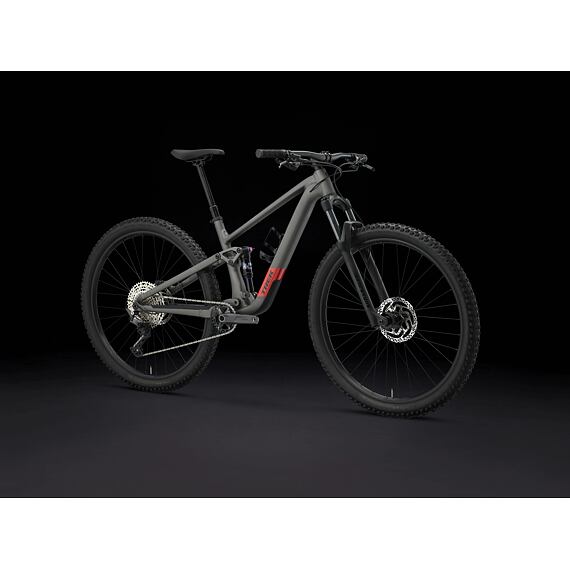

Trek Top Fuel 5 Gen 4 - Matte Mercury
skladem na e-shopu
When will my order arrive?Description and specifications
Product description
The frame is made of lightweight aluminum and is complemented by internal storage for maximum practicality. The front suspension is provided by a RockShox Recon Silver RL air fork with 130 mm of travel, while the rear is equipped with an X-Fusion Pro 2 shock with 120 mm of travel. A Shimano Deore 1x12 drivetrain is available, which provides a wide range of gears. The bike is equipped with rims that support tubeless tires, as well as hydraulic disc brakes for effective stopping. A dropper seatpost is also included.
Benefits of the Trek Top Fuel 5 bike
- Lightweight aluminum frame with internal storage
- RockShox air fork
- Shimano Deore 1x12 drivetrain
- Telescopic seatpost
- Free warranty inspection
- Lifetime frame warranty
Storage in the frame
Thanks to the storage space in the down tube, you can always have your puncture repair tools at hand.

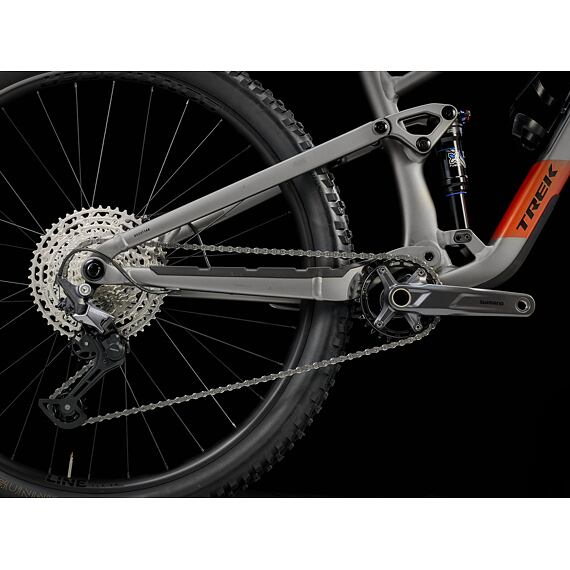

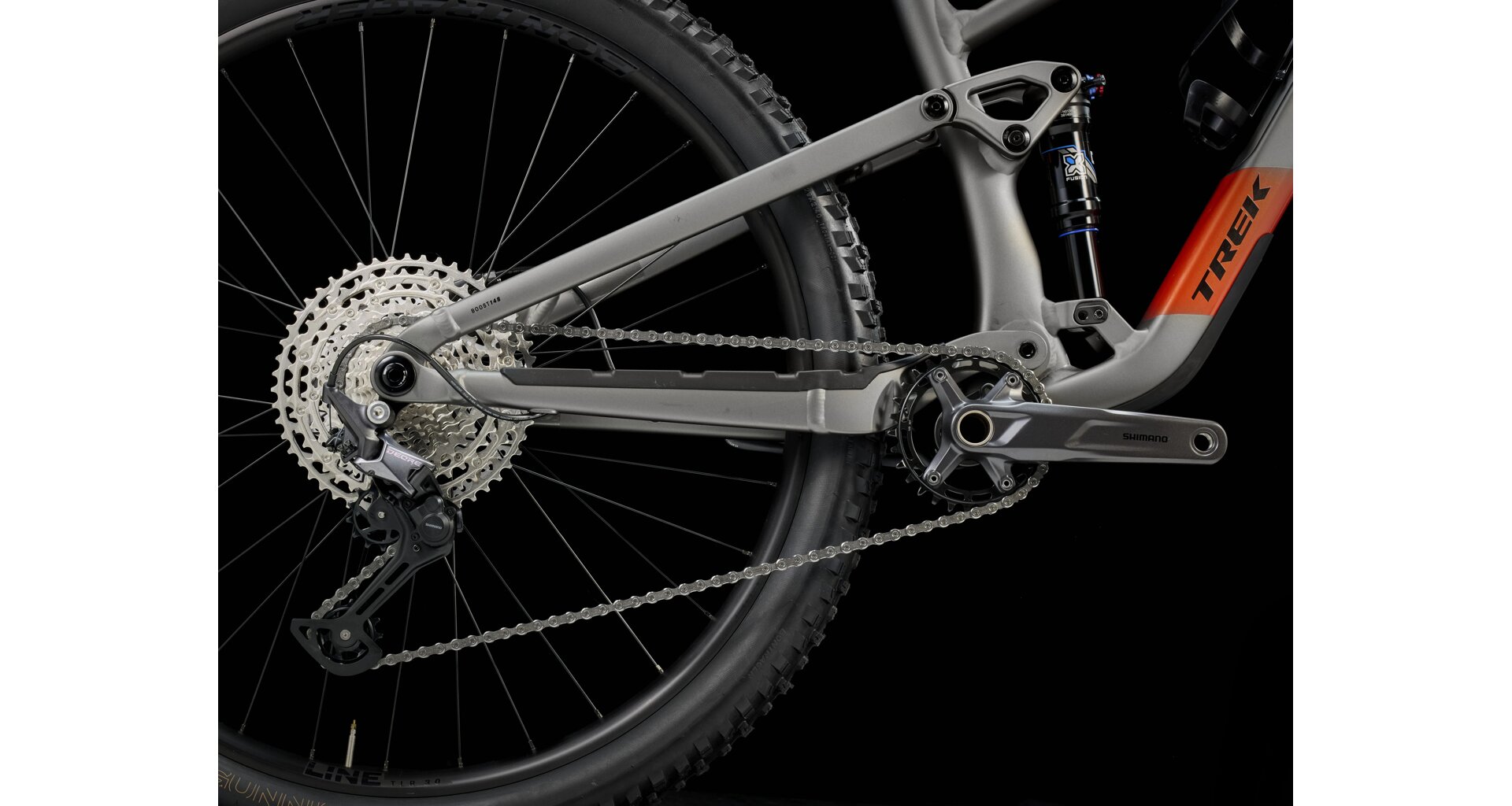

Shimano 1x12 drivetrain
This mountain bike is equipped with a 12-speed Shimano Deore drivetrain and a wide-range cassette for easier climbing of steep hills.
Mino Link
Thanks to Mino Link technology, it is possible to customize the frame geometry exactly to the rider's preferences. Mino Link allows for adjustment of the head angle and center height.
Specifications
| Frame: | Alpha Platinum Aluminum, internal storage, tapered head tube, internal cable routing, down tube protector, alloy rocker link, 4-position Mino Link, ABP, Boost148, 120mm travel |

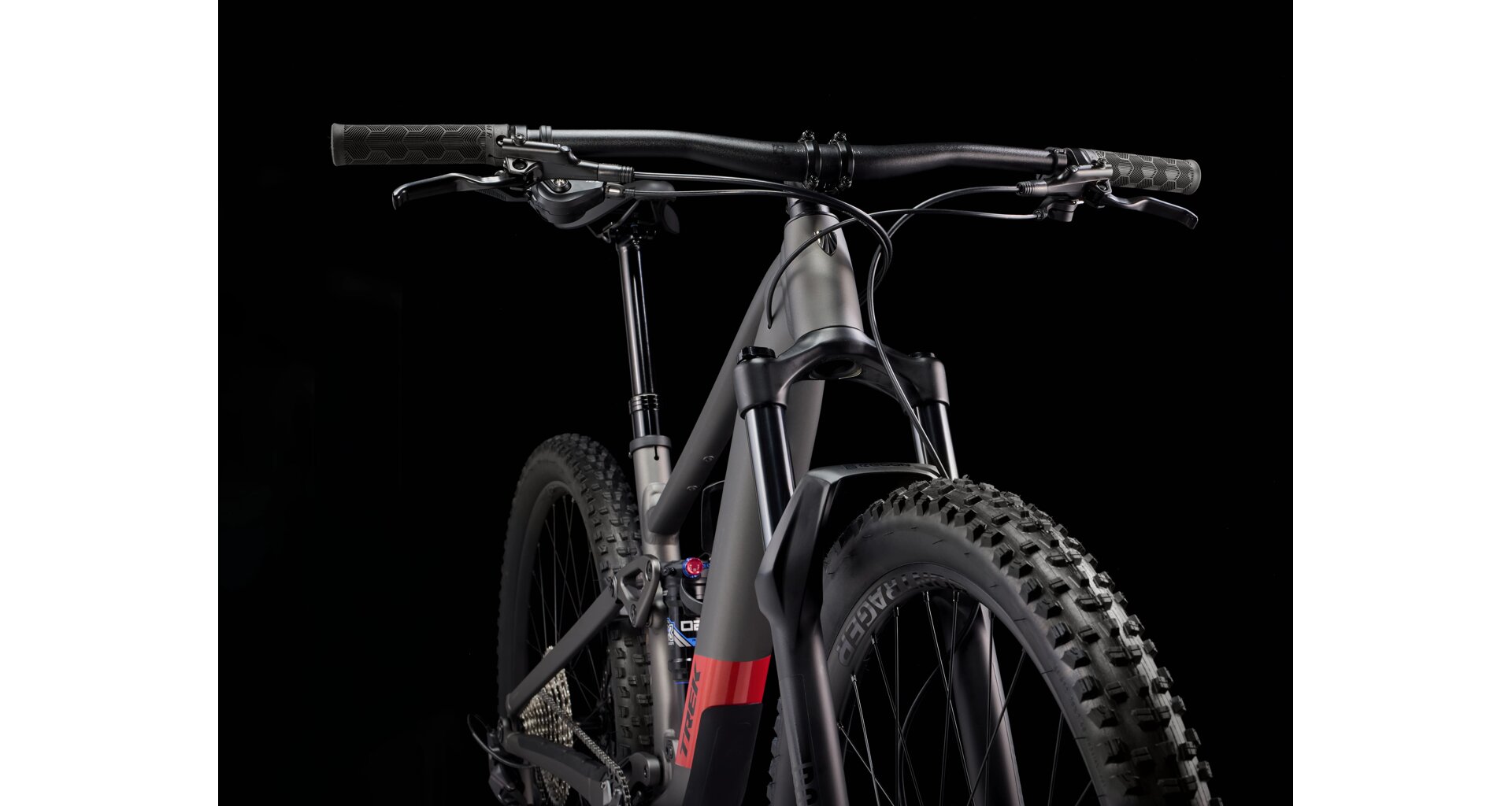

| Fork: | RockShox Recon Silver RL, Solo Air, Motion Control damping, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel |

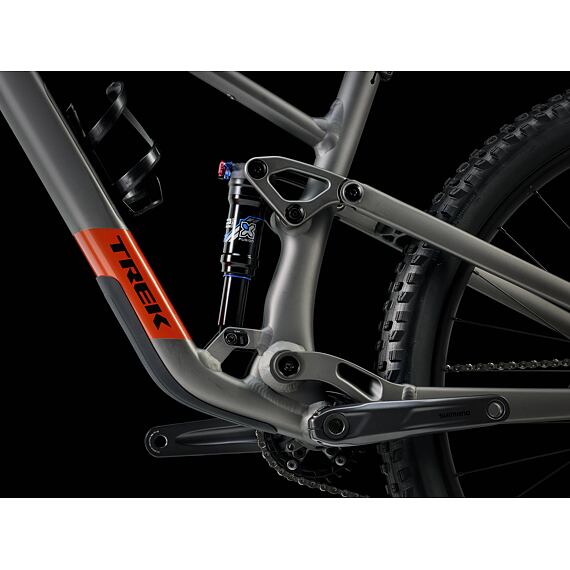

| Silencer: | X-Fusion Pro 2, 2-position damping, 185 x 50 mm |
| Sorting: | Shimano Deore M6100, 12 speed |
| Derailleur: | Shimano Deore M6100, long arm |
| Cartridge: | Shimano Deore M6100, 10-51, 12 speed |
| Cranks: | Shimano MT512, 30 tooth chainring, 55 mm chainline, length 170 mm.BSA Shimano BB-MT501 BSA |
| Brakes: | Shimano MT200 hydraulic disc versionMaximum sizes |
| Handlebars: | Bontrager, 31.8mm, 15mm offset, 750mm width |
| Grips: | Bontrager XR Trail Comp, nylon Lock-On lock |
| Stem: | Bontrager Comp, 31.8mm clamp, Blendr compatible, 7 degrees, 50mm length |
| Seatpost: | TranzX JD-YSI22, 170mm travel, internal routing, 34.9mm, length 497mm |
| Seat: | Bontrager Verse P3, steel rails |
| Engaged wheels: | Bontrager Line TLR 30, tubeless ready, 32 holes, Presta valve. Bontrager alloy axle, 6 bolts |
| Tires: | Bontrager Gunnison Elite XR, tubeless ready, clincher, 60 tpi, 29 x 2.40 in |
| Weight: | M - 15.90 kg / 35.06 lbs |
| Weight limit: | The bike has a maximum total weight limit of 136 kg (combined weight of bike, rider and cargo) |
Parameters
-
TREK
- Product code 5319306-xx
- By discipline Trail
- Frame material Aluminium
