TREK

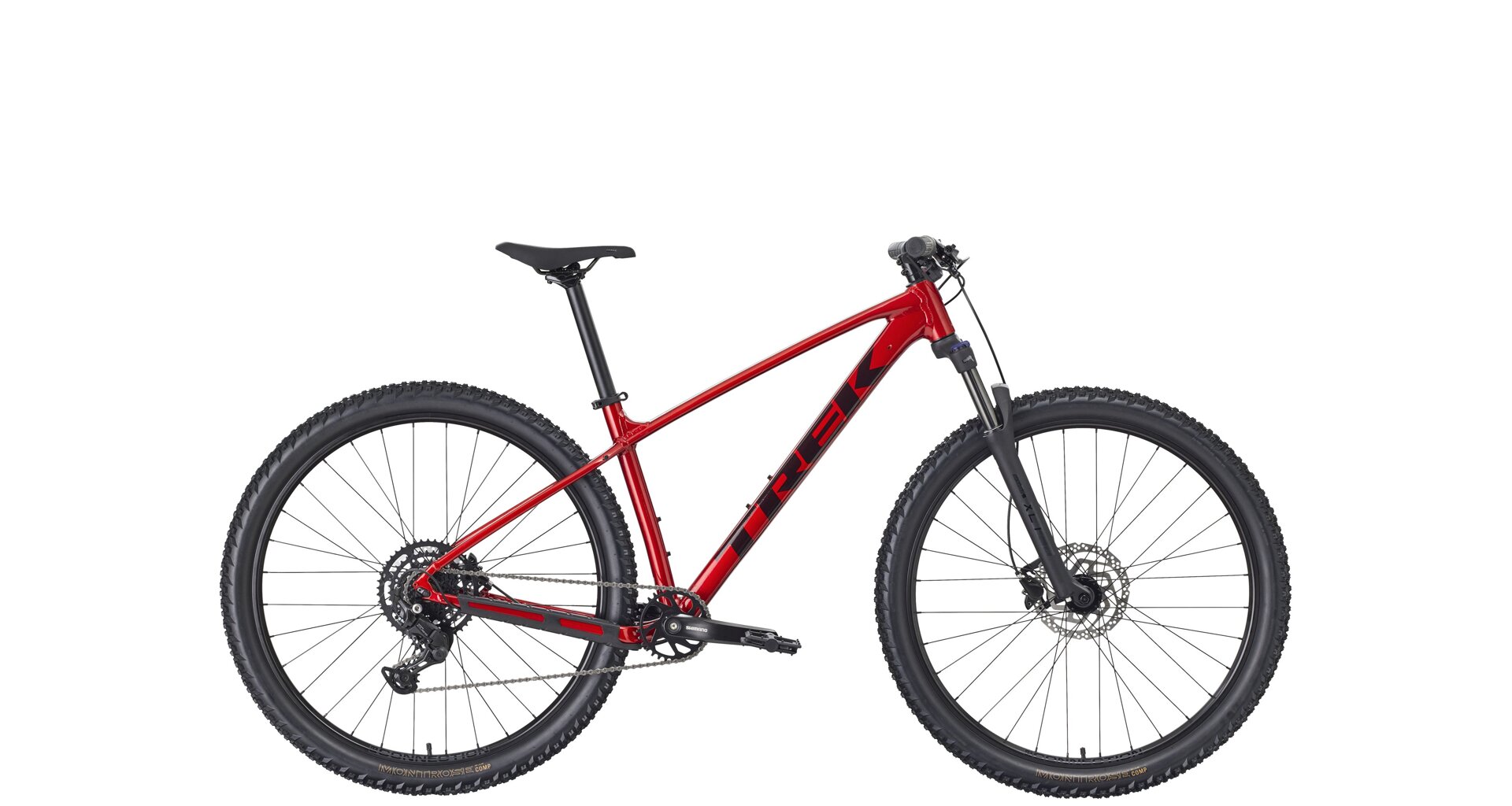

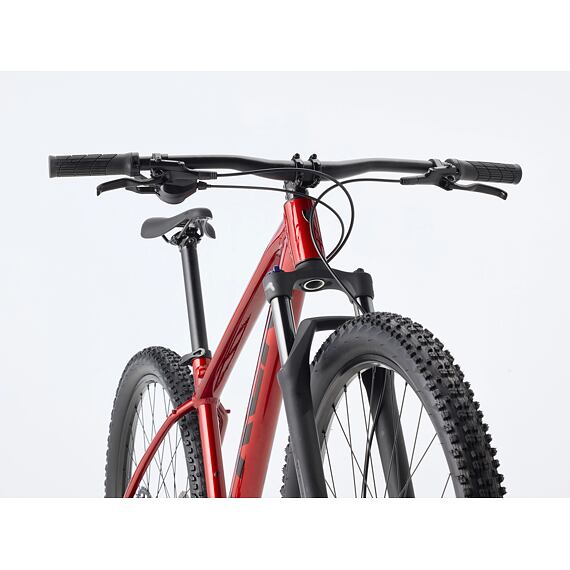

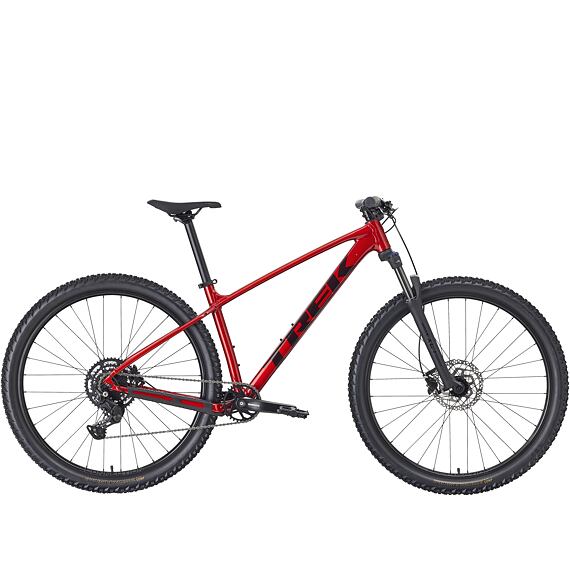

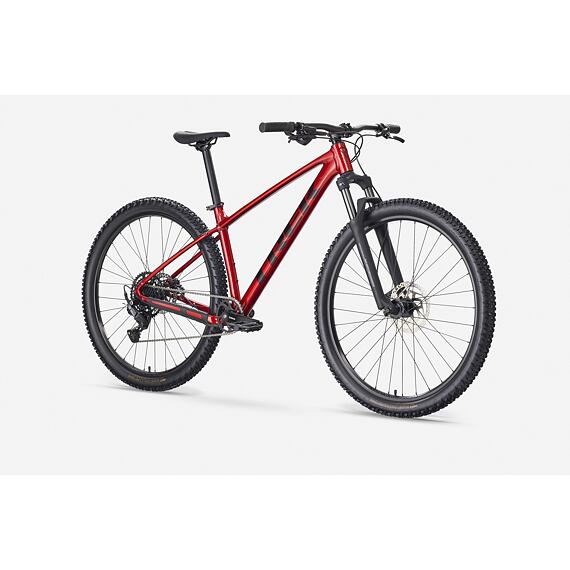

Trek Marlin 5 Gen 3 - Fury Red
skladem na e-shopu
When will my order arrive?Description and specifications
Product description
The Trek Marlin 5 mountain bike with a lightweight aluminum frame offers a pleasant, sportier ride thanks to its geometry. The suspension is provided by the SR Suntour XCT 30 suspension fork, which reliably filters out uneven surfaces. The drive is provided by the Japanese brand Shimano, specifically the 9-speed Shimano Cues U4001 set in combination with single-speed cranks. Thanks to the cassette with a large tooth range, you don't have to worry about not having enough gears even on steep climbs. Reliable braking performance even on longer descents is ensured by the Shimano MT200 hydraulic disc brakes.
Benefits of the Trek Marlin 5 Gen 3 bike
- Lightweight aluminum frame
- SR Suntour suspension fork
- Shimano 1x9 drivetrain
- Hydraulic disc brakes
Specifications

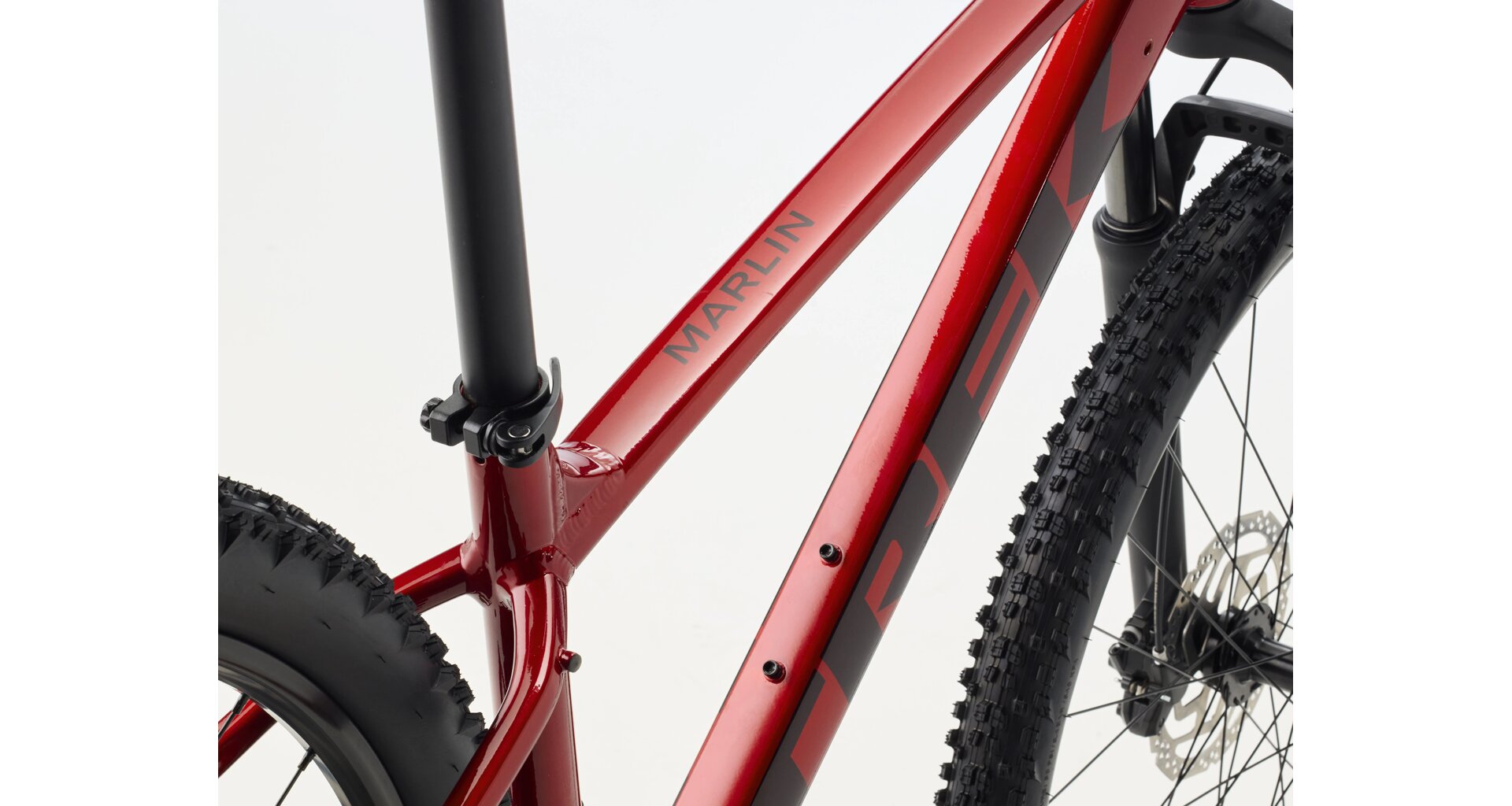

| Frame: | Alpha Silver aluminum, internal derailleur and dropper post routing, rack and kickstand mount, ThruSkew 135 x 5 mm. |
| Fork: | SR Suntour XCT 30, coil spring, preload adjustment, hydraulic lockout, 42 mm offset for 29-inch wheels, 100 mm quick release, 100 mm travel. |

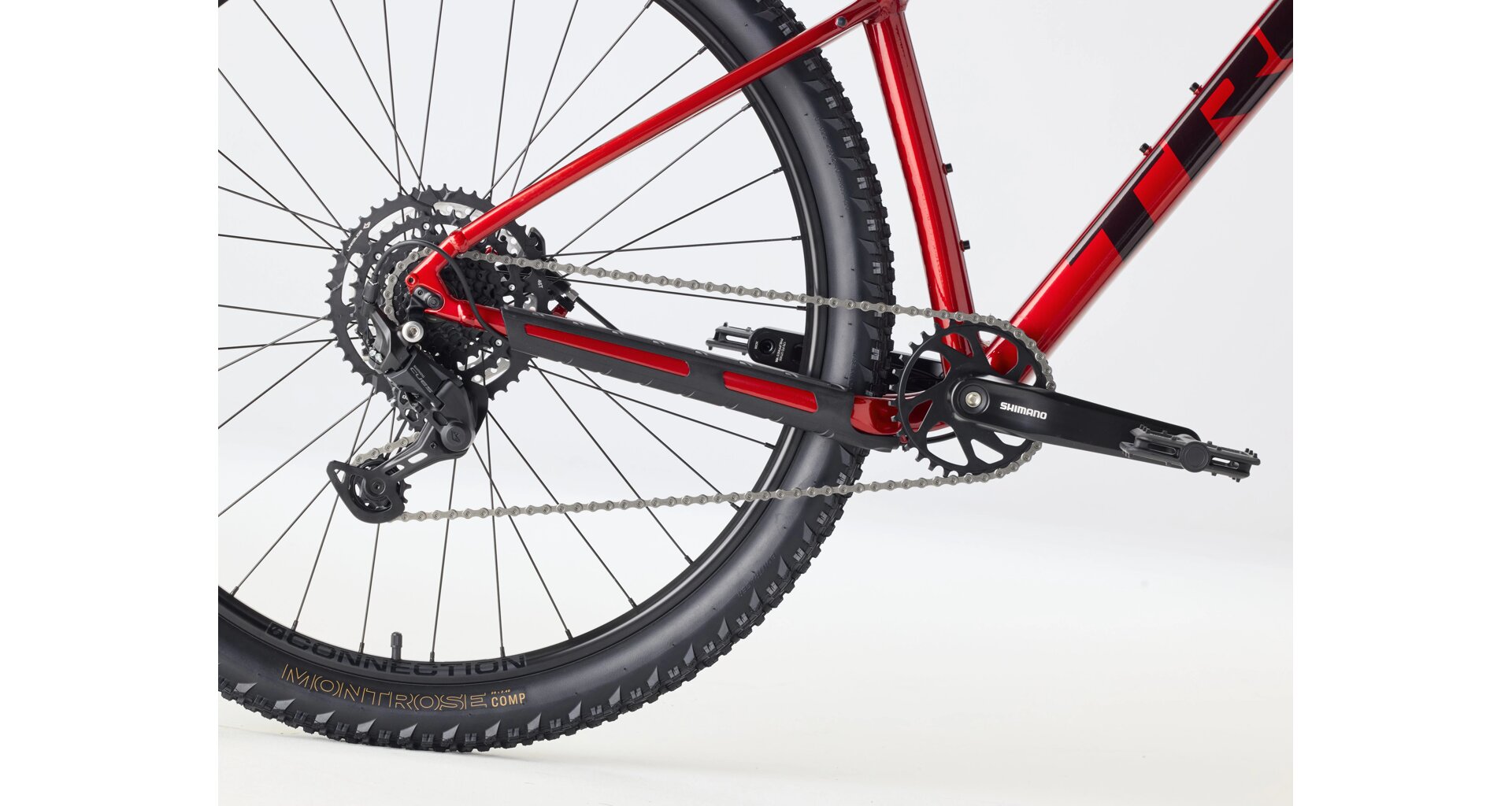

| Cranks: | Shimano CUES U4001, 32 teeth, chainline 52 mm, length 170 mm. (L,XL =175mm) |
| Center axis: | Shimano, 73mm, threaded cassette, 122.5mm axle. |
| Sorting: | Shimano U4000, 9 speeds. |
| Derailleur: | Shimano CUES U4000. |
| Cartridge: | Shimano LINKGLIDE LG300, 11-46, 9 speeds. |
| Chain: | Shimano LG500. |
| Brakes: | Shimano MT200 hydraulic disc version |

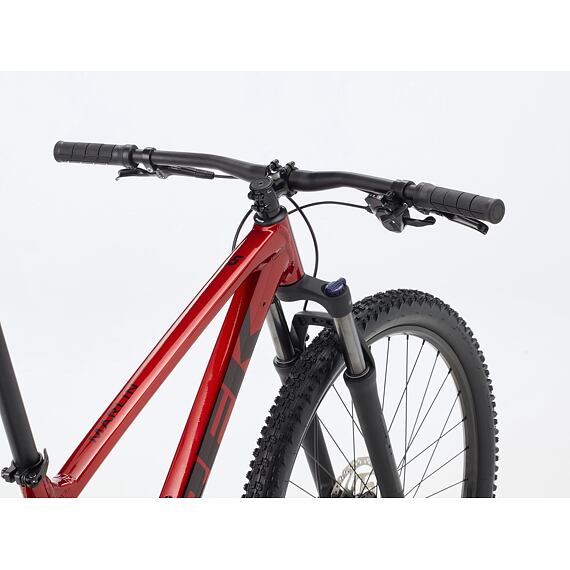

| Handlebars: | Alloy, Bontrager, 31.8 mm, 15 mm offset, 750 mm width. |
| Grips: | Trek Line Comp, nylon lock |
| Stem: | Bontrager Comp, 31.8mm clamp, Blendr compatible, 7 degrees, 50mm length (XL= 60mm) |
| Seatpost: | Alloy, Bontrager, 31.6 mm, 12 mm offset, 400 mm length. |
| Seat: | Bontrager Verse Short, stainless steel rails. |
| Rims: | Bontrager Connection, double-walled, 32 holes, 20 mm width, Schrader valve. |
| Front hub: | Formula DC-20, alloy, 6 bolts, 5 x 100 mm quick release. |
| Rear hub: | Formula DC-22, alloy, 6 bolts, Shimano 8/9/10 Freehub, 135 x 5 mm quick release. |
| Tires: | Bontrager Montrose Comp, clincher, 30 tpi, 29 x 2.40 inches. |
| Weight limit: | The bike has a maximum total weight limit (combined weight of bike, rider and cargo) of 136 kg |
Video
Parameters
-
TREK
- Product code 5337019-xx
- By discipline MTB
- Frame material Aluminium
