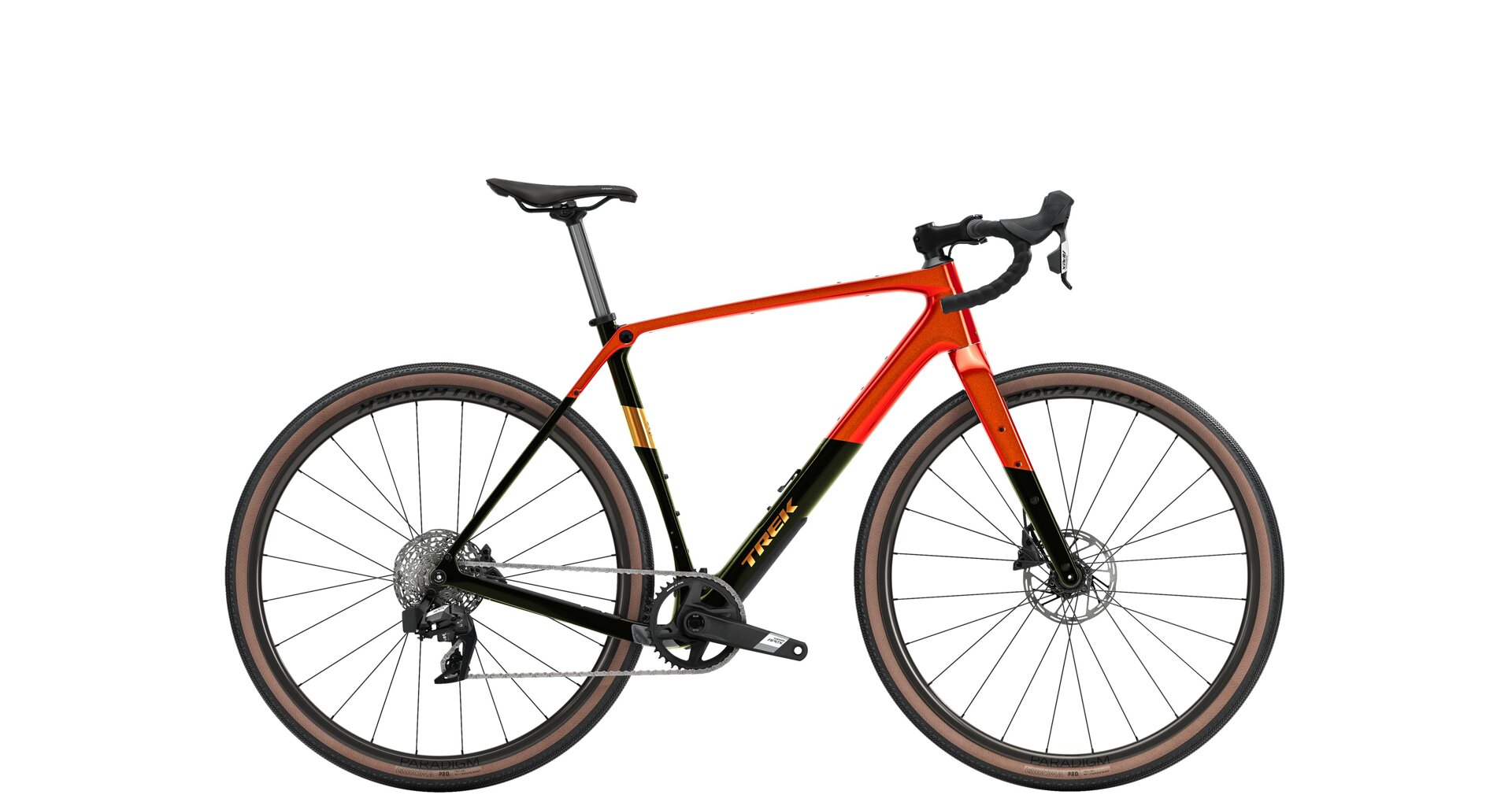

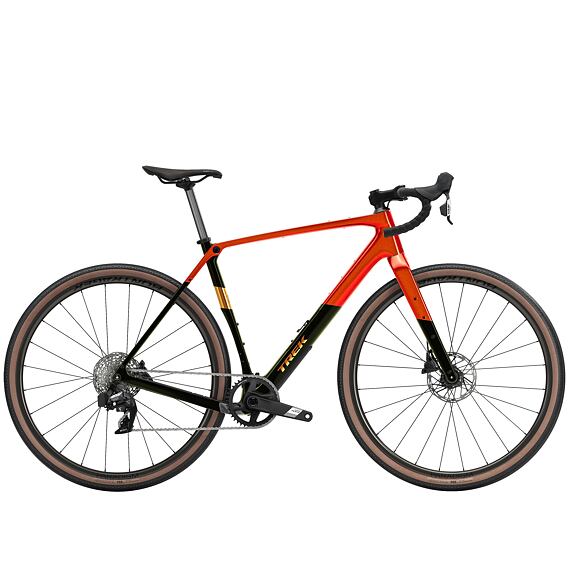

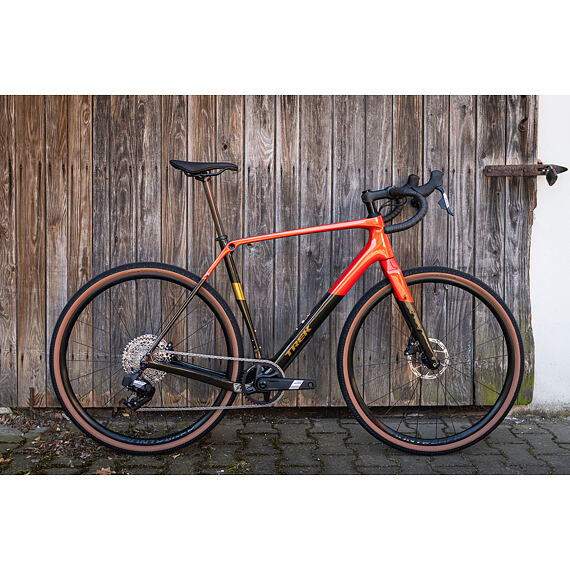

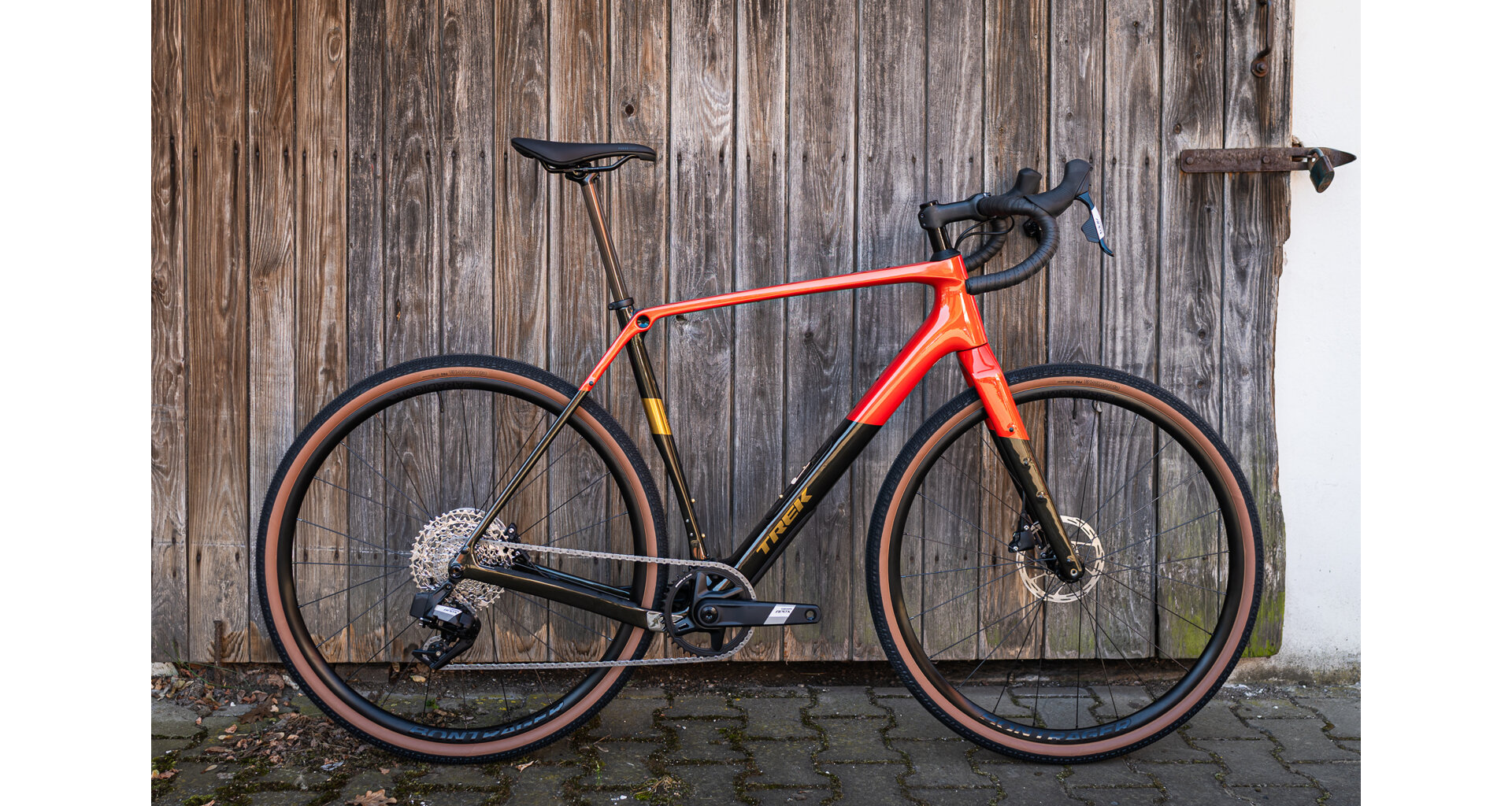

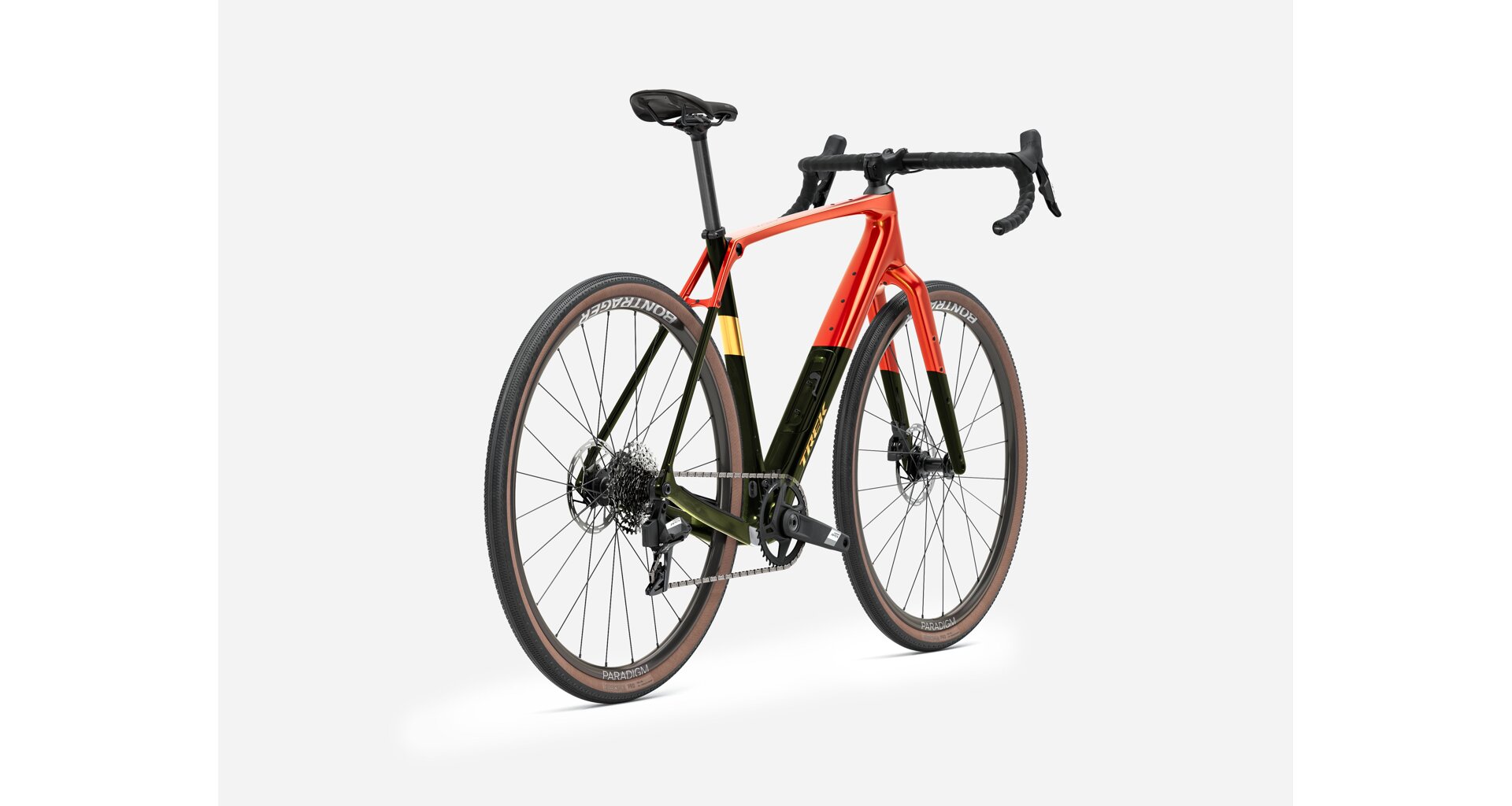

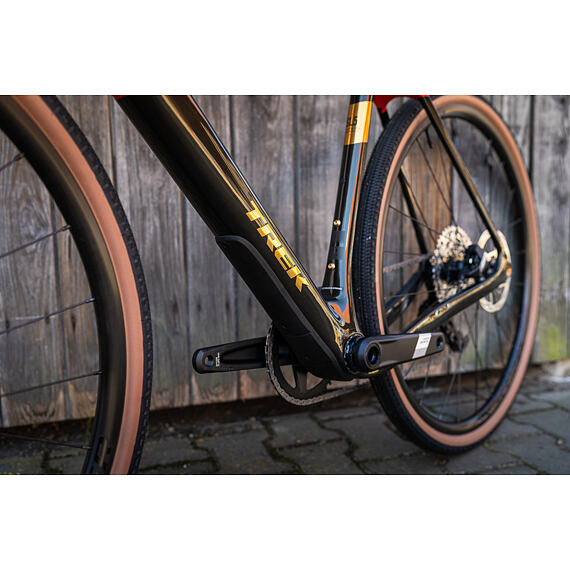

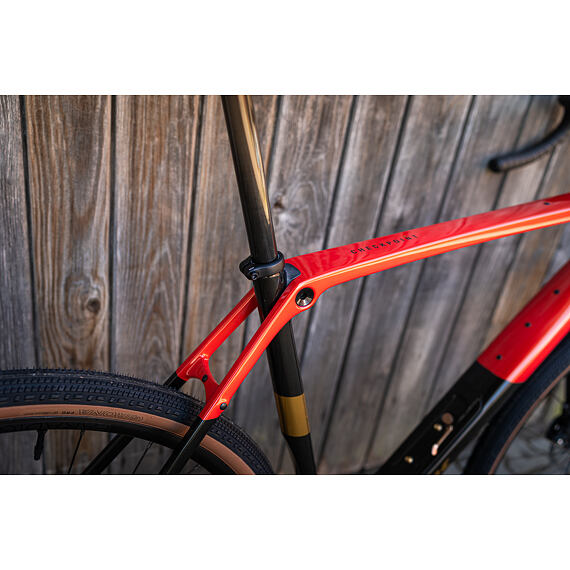

Trek Checkpoint SL 5 AXS Gen 3 Lava/Black Olive
skladem na e-shopu
When will my order arrive?Description and specifications
Product description
Go further, faster, and with more gear. The Trek Checkpoint SL 5 AXS Gen 3 combines lightweight 500 Series OCLV Carbon, progressive Endurance gravel geometry, and a wireless SRAM Apex XPLR AXS drivetrain. Whether you're heading for gravel roads, easy singletrack, or multi-day bikepacking, this machine has you covered.
Advantages of the Trek Checkpoint gravel bike

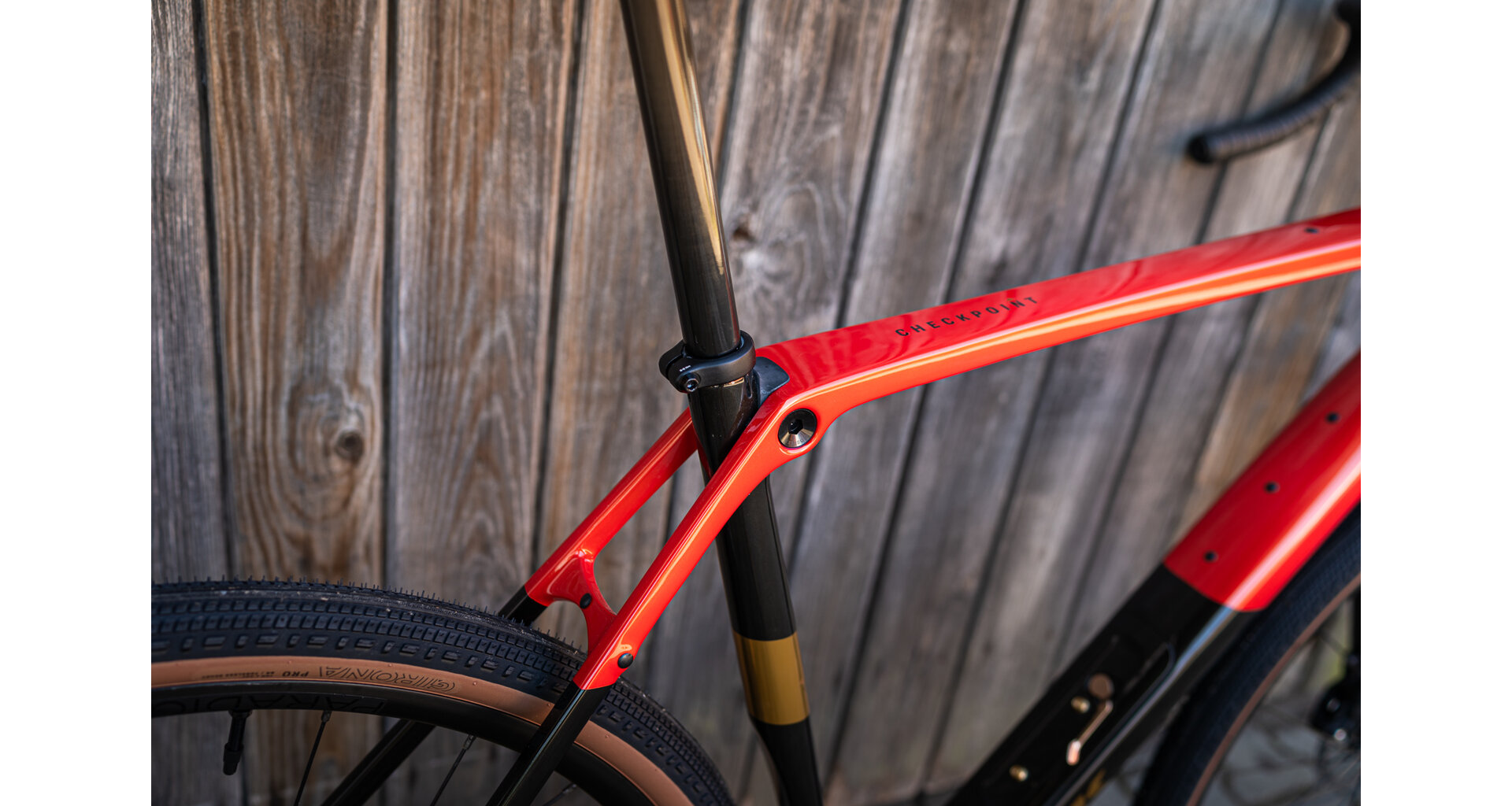

- Comfort-focused IsoSpeed technology dampens vibrations from uneven surfaces.
- The Checkpoint Gravel Endurance geometry sits you higher with a shorter reach, so you'll be comfortable on all-day gravel adventures, light singletrack, bike tours, and more.

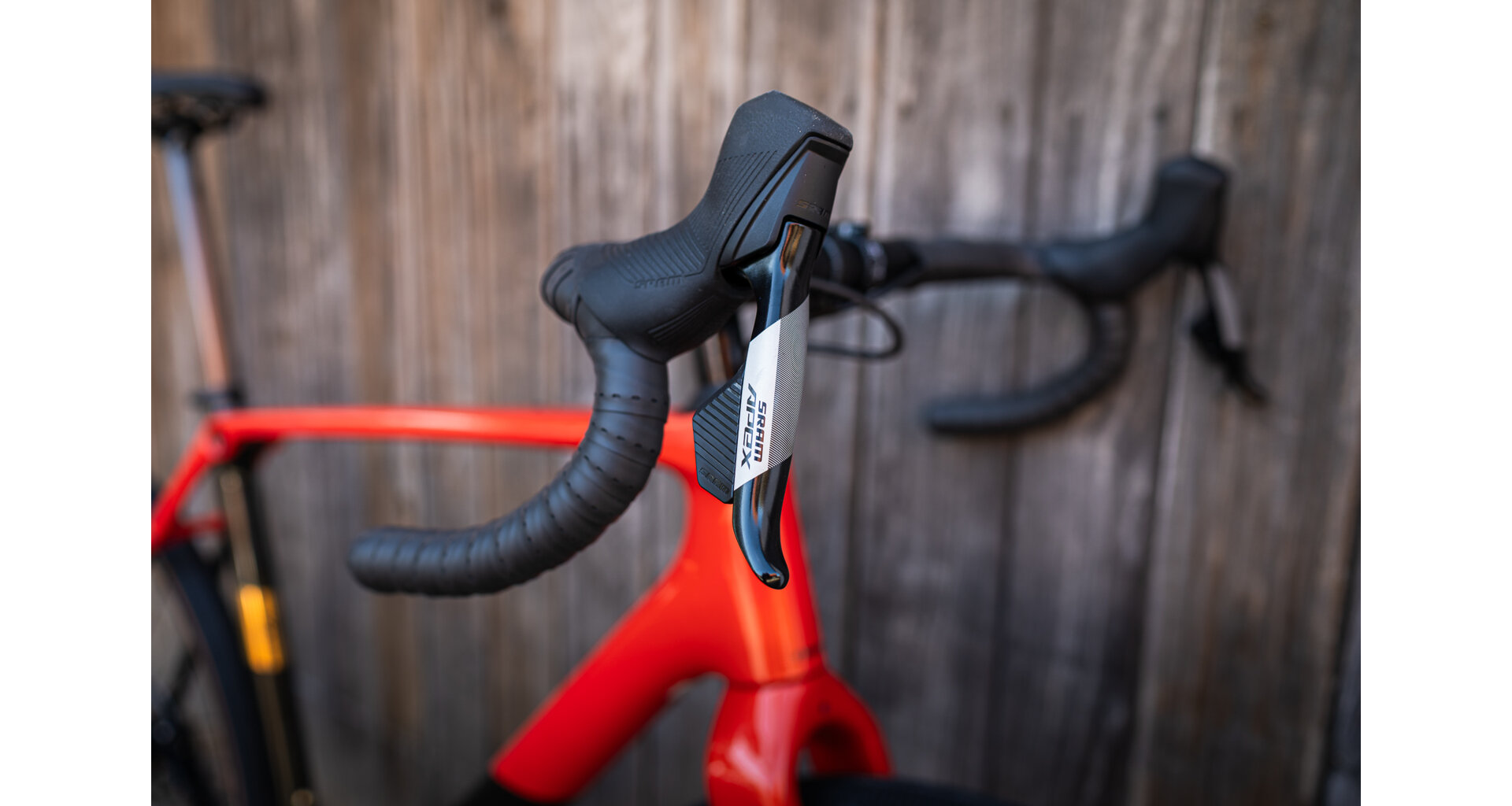

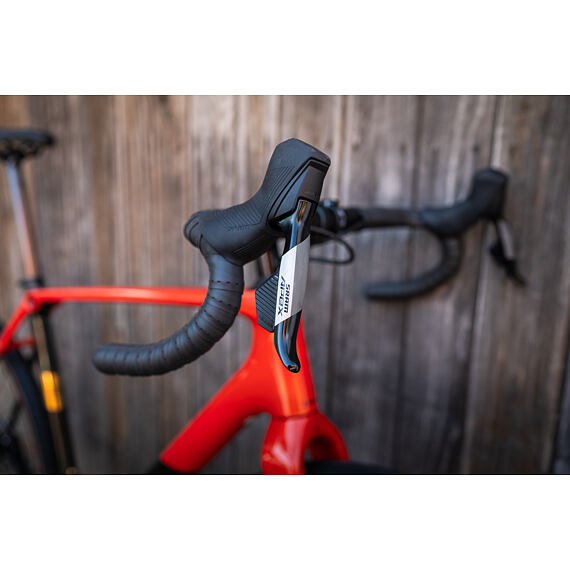

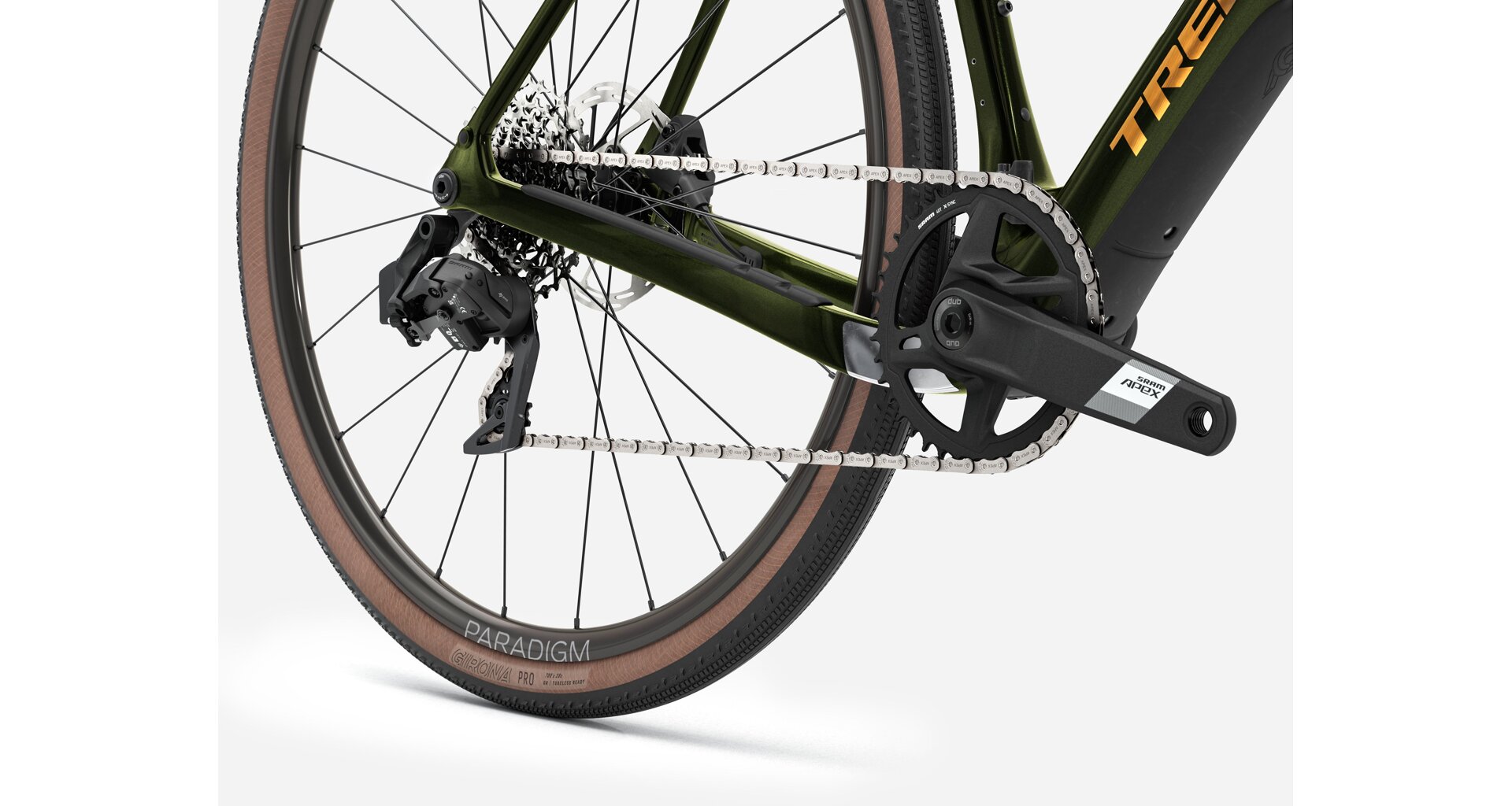

- SRAM Apex XPLR AXS 12-speed drivetrain
- Space for 50mm tires
- Storage space in the frame
- Compatible with dropper post and suspension fork
Specifications
| Frame: | 500 Series OCLV Carbon, IsoSpeed, downtube storage cover, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS headset, hidden cable routing, T47, flat mount disc, integrated chain keeper, removable FD mount, UDH, 142x12mm tapered thru axle |

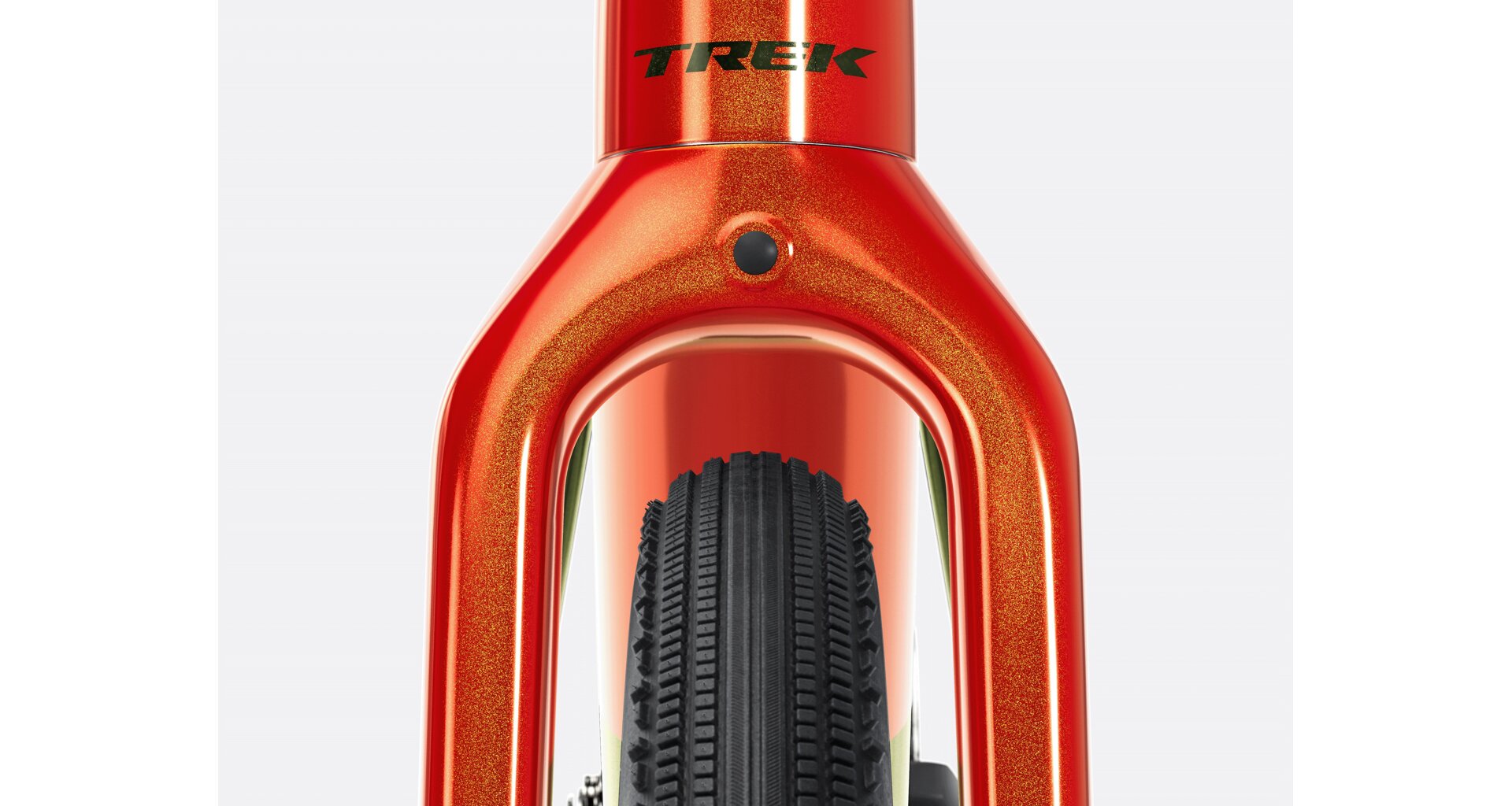

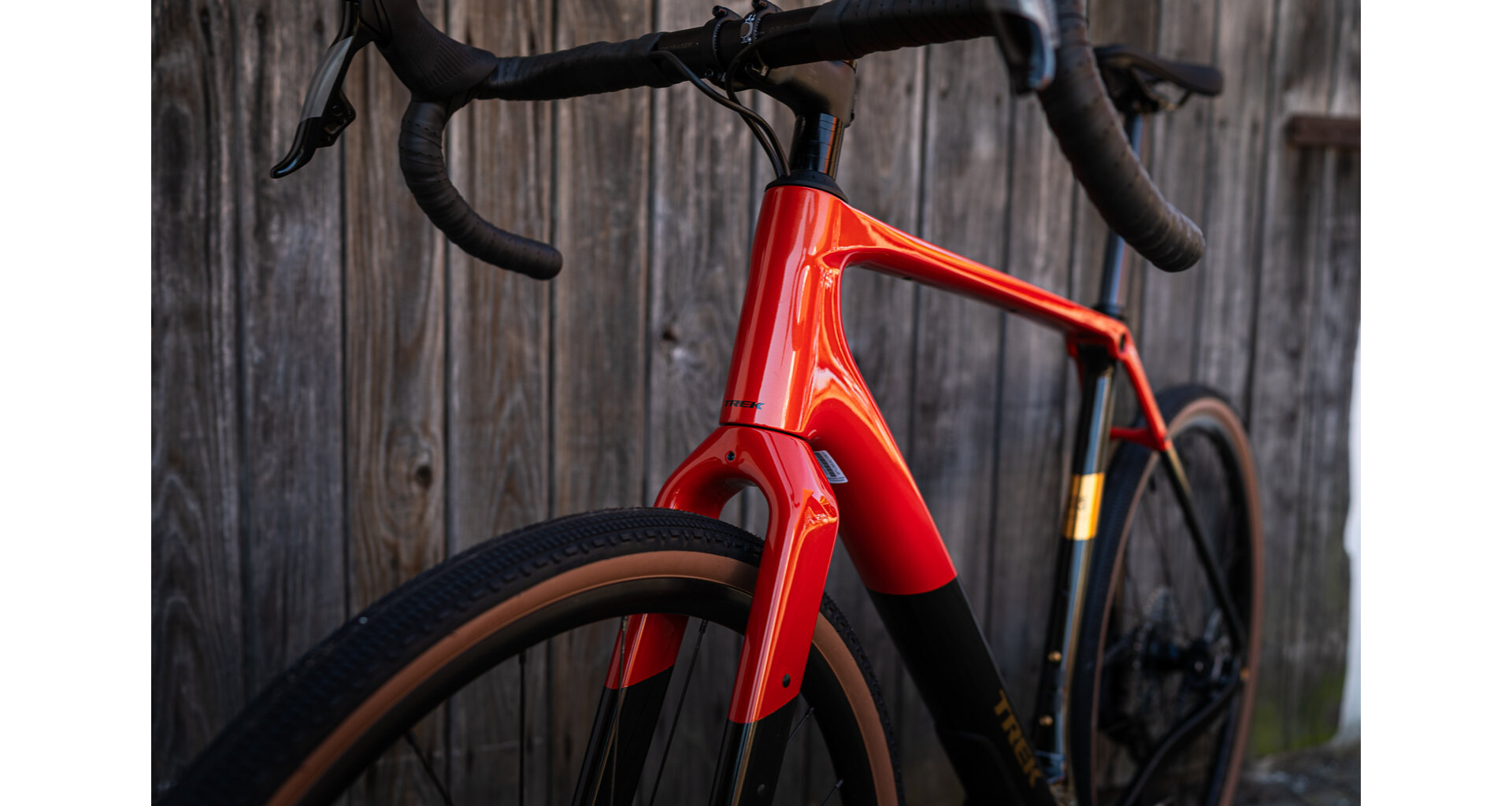

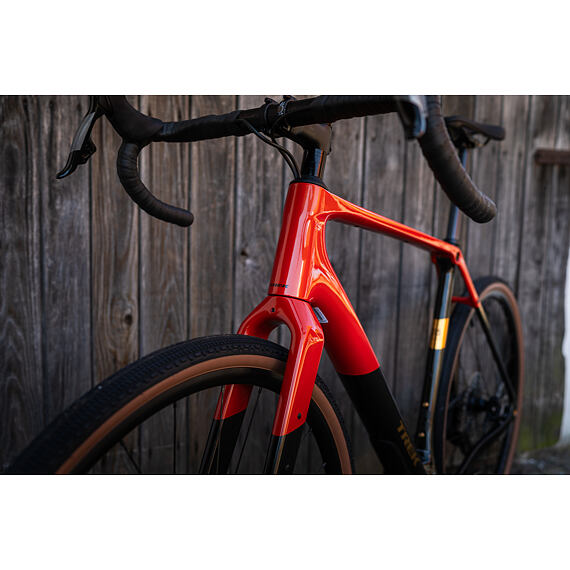

| Fork: | Checkpoint full carbon construction, carbon tapered steerer, fender mounts, three rack mounts, flat mount disc, tapered thru axle |
| Derailleur: | SRAM Apex XPLR eTap AXS, max. 44 teeth chainring. |
| Cartridge: | SRAM XPLR PG-1231, 11-44, 12 speed. |
| Chain: | SRAM Apex, 12 speed. |

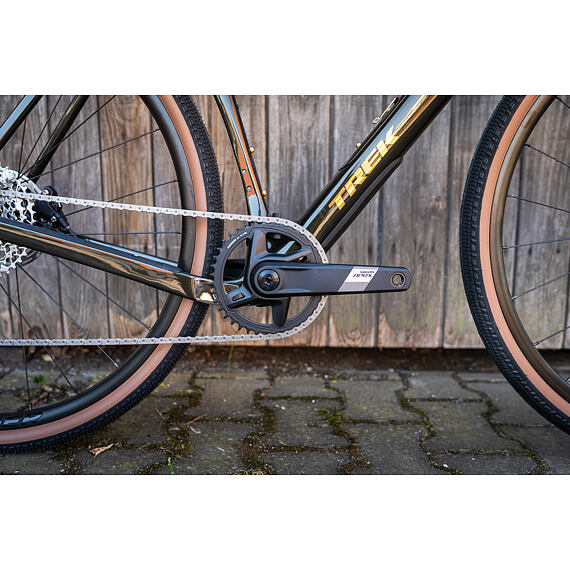

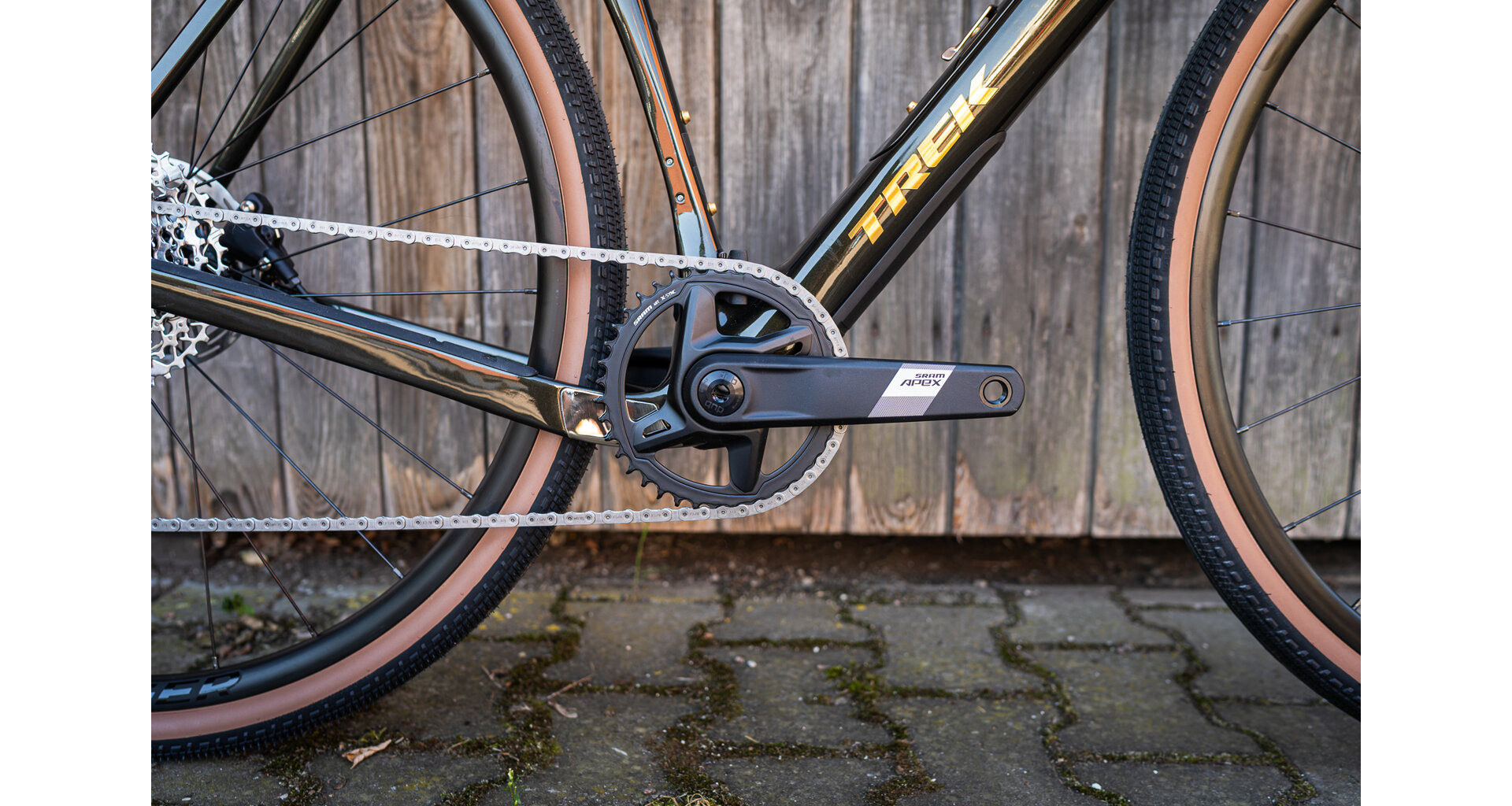

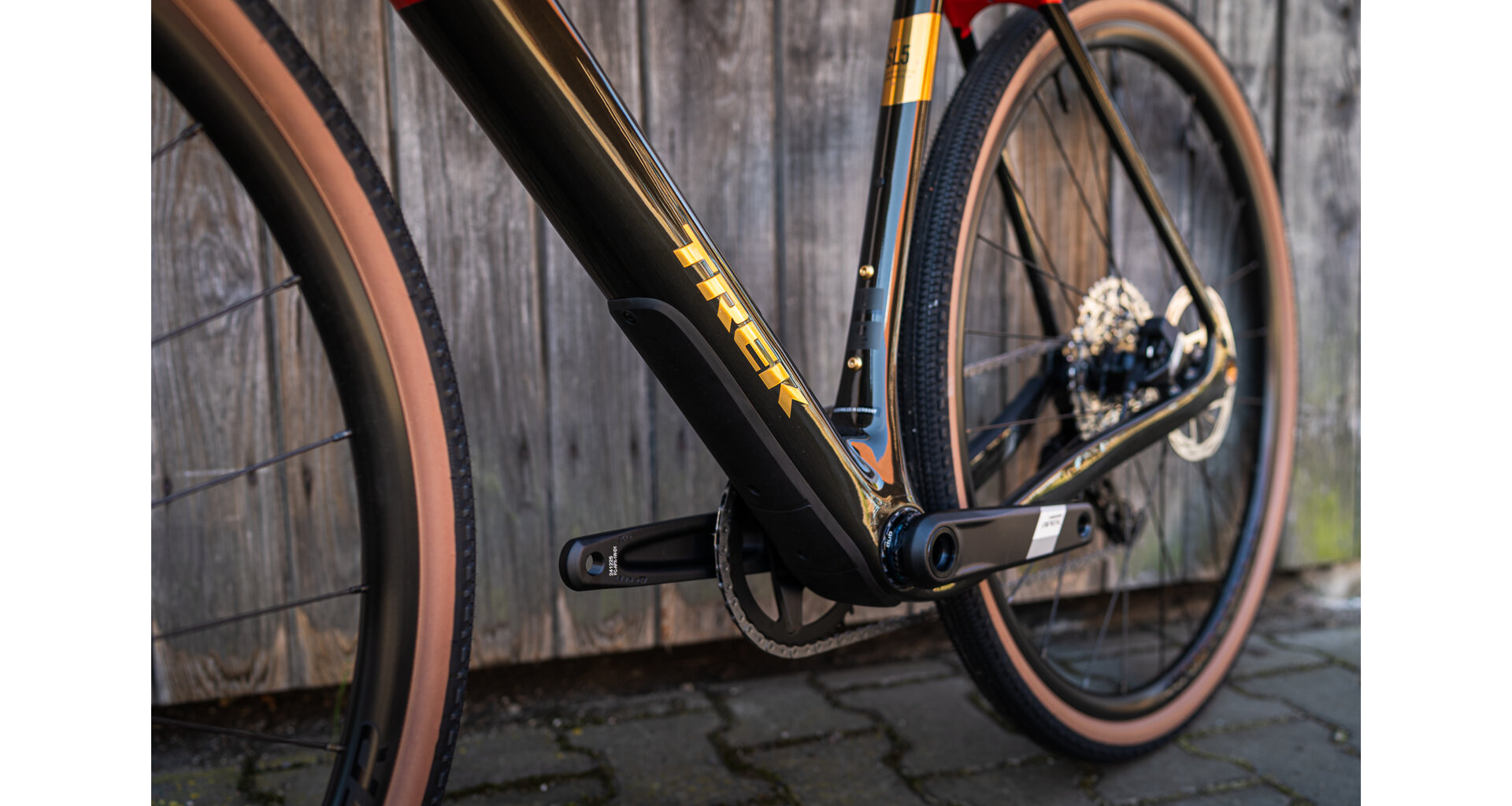

| Cranks: | Size: M SRAM Apex 1, 40 teeth, DUB Wide, length 170 mm. (size: M/L, L= 172.5mm, XL=175 mm) |

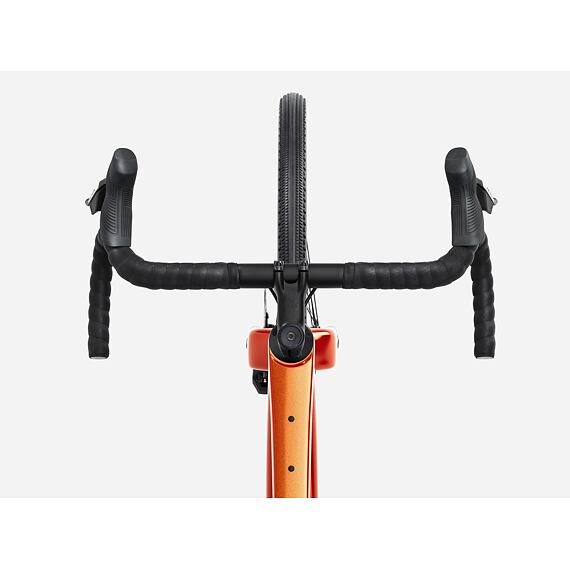

| Handlebars: | Size: S, M Bontrager Elite Gravel, alloy, 42cm width (size M/L, L= 44cm width) |
| Handlebar grip: | Bontrager Supertack Perf. |
| Stem: | Size: M, ML Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, length 80mm. (L=90mm, XL= 100mm) |
| Seatpost: | Bontrager, carbon, 27.2 mm, 8 mm offset, 330 mm length. |
| Seat: | Verse Short Comp, steel rails, width 145 mm. |
| Engaged wheels: | Bontrager Paradigm SL, tubeless ready, 24 holes, 21 mm width, Presta valve. |
| Tires: | Bontrager Girona RSL, tubeless ready, GR puncture protection, aramid bead, 220 tpi, 700 x 42 mm. |
| Weight: | M/L – 9.50 kg (with TLR sealant, without tubes) |
| Weight limit: | The bike has a maximum total weight limit (combined weight of bike, rider and cargo) of 125 kg |
Video
Parameters
-
TREK
- Product code 5321644-xx
- By discipline Gravel
- Frame material Carbon
