TREK

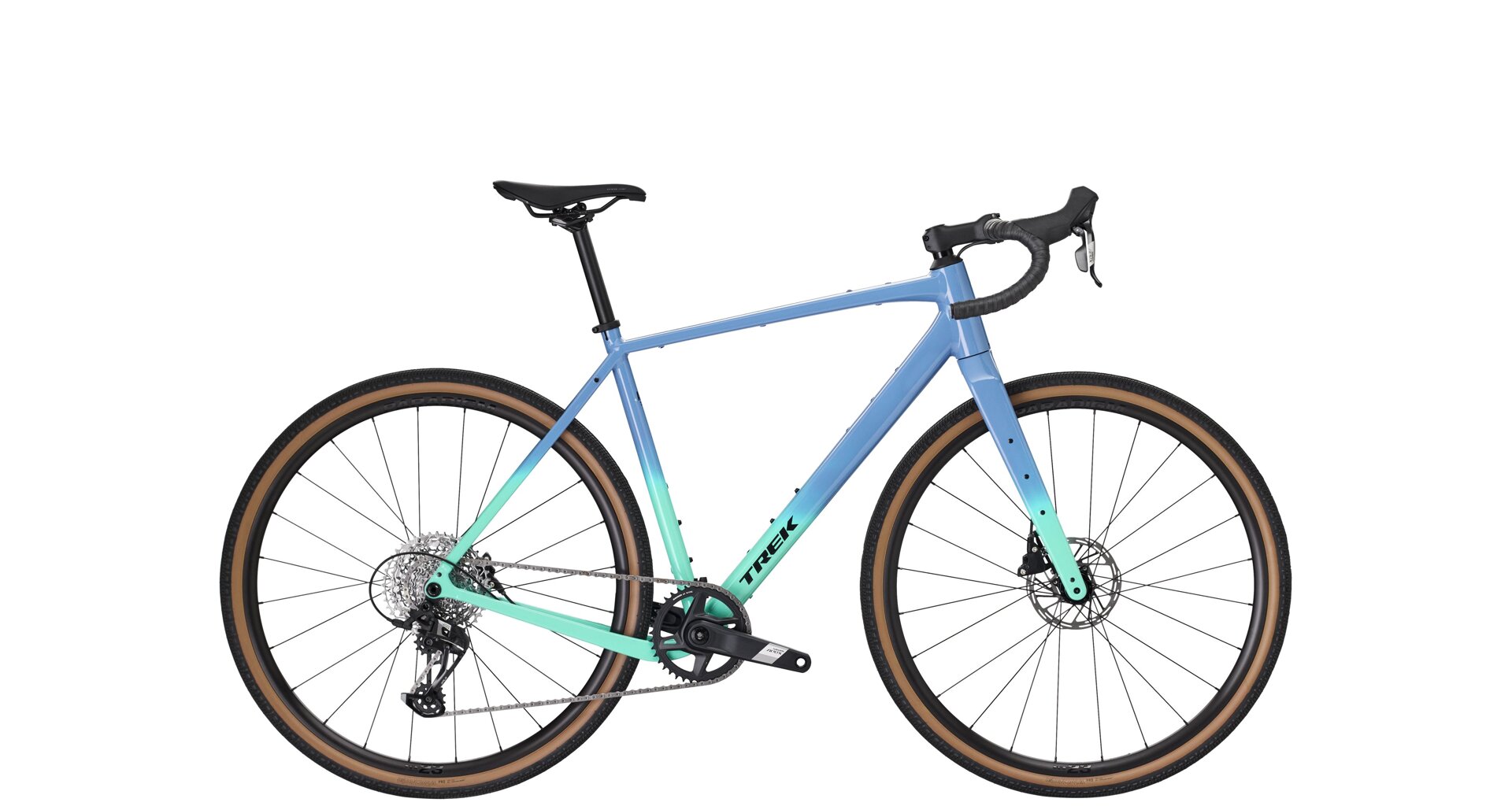

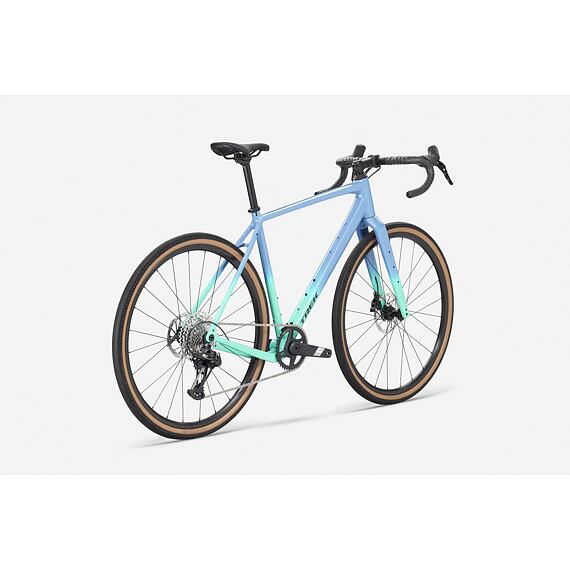

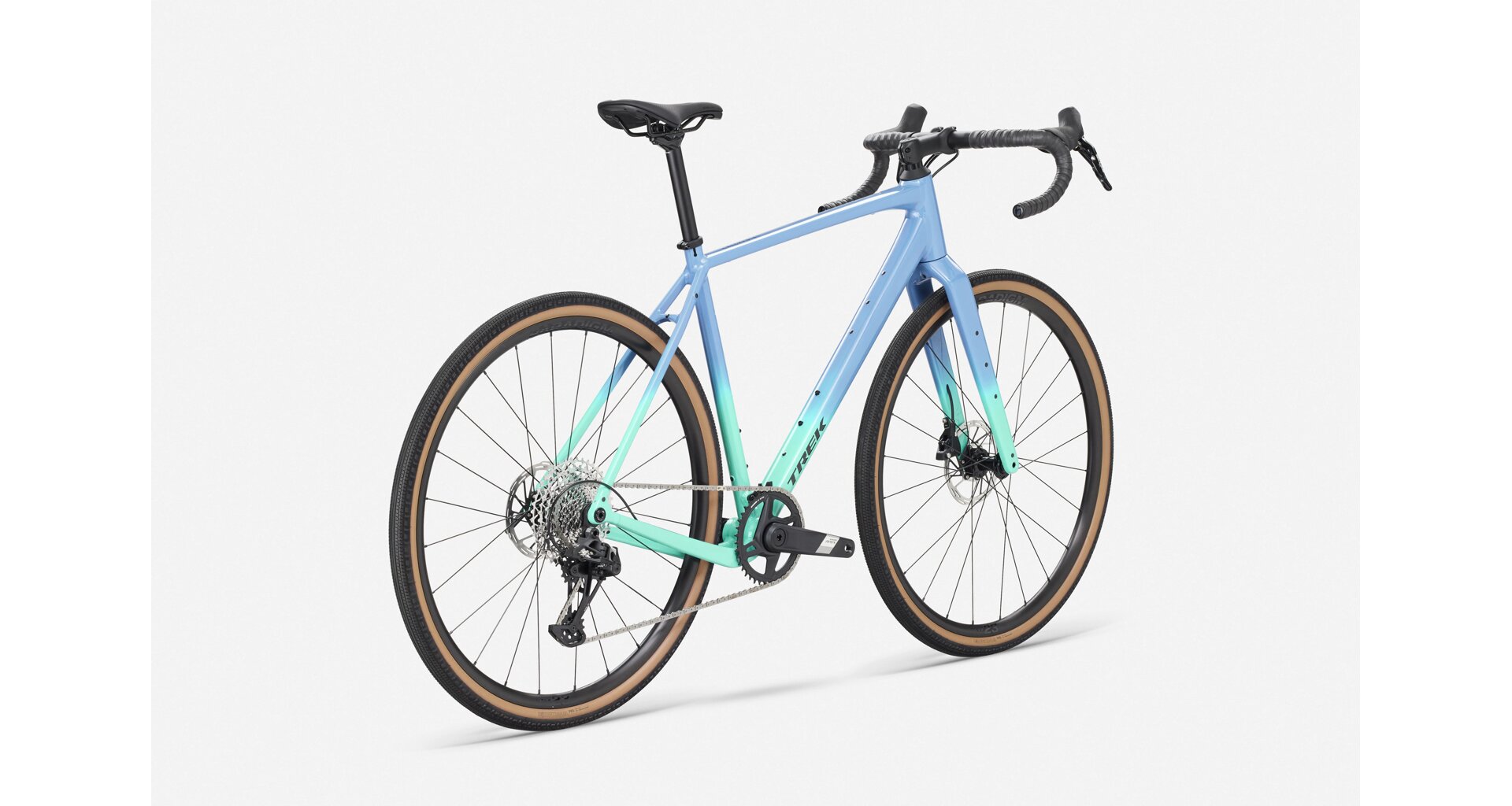

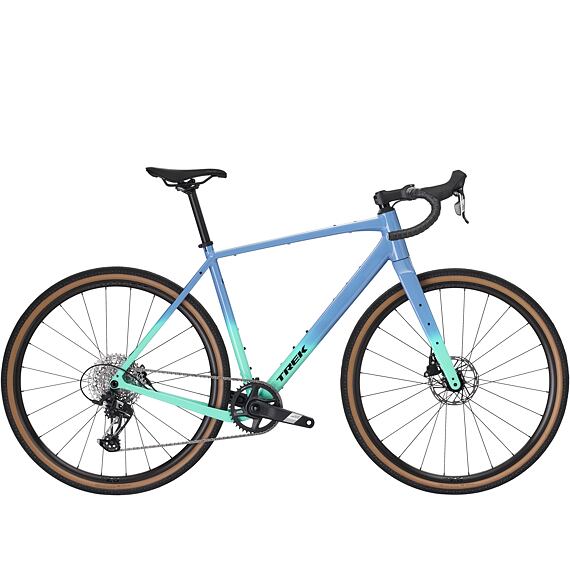

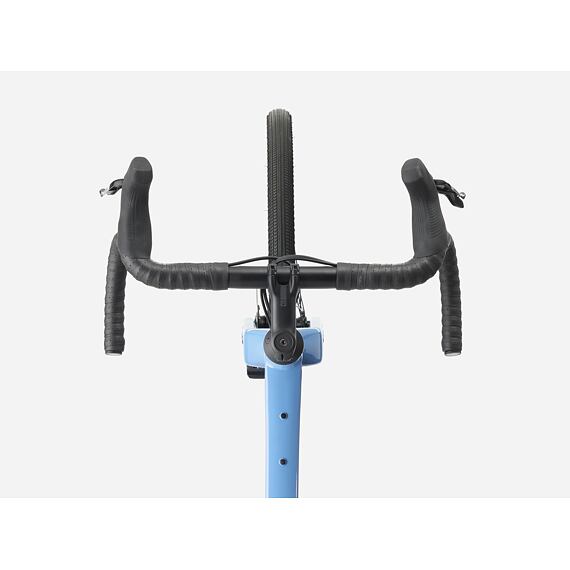

Trek Checkpoint ALR 5 Gen 3 - Fjord Blue to Miami Green Fade
skladem na e-shopu
When will my order arrive?Description and specifications
Product description
Who is it for? If you love adventures on gravel roads that end with a well-deserved drink and a treat, the Checkpoint ALR 5 is for you. The bike offers a durable 300 Series Alpha frame with progressive geometry that is fast and agile, stable at high speeds and efficient when climbing, a 1x12 SRAM Apex drivetrain with slower gears ideal for climbing hills and gravel riding, and plenty of mounts for bags integrated into the frame.
Advantages of the Trek Checkpoint gravel bike
- Durable Alpha 300 Series Frame
- Rack and mudguard mounts
- 1x12 SRAM Apex drivetrain
- Hydraulic disc brakes
- Tubeless-ready rims
- Huge space for tires - up to 45c
- Free warranty inspection
- Lifetime frame warranty
Specifications
| Frame: | Alpha 300 series aluminum, internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts |

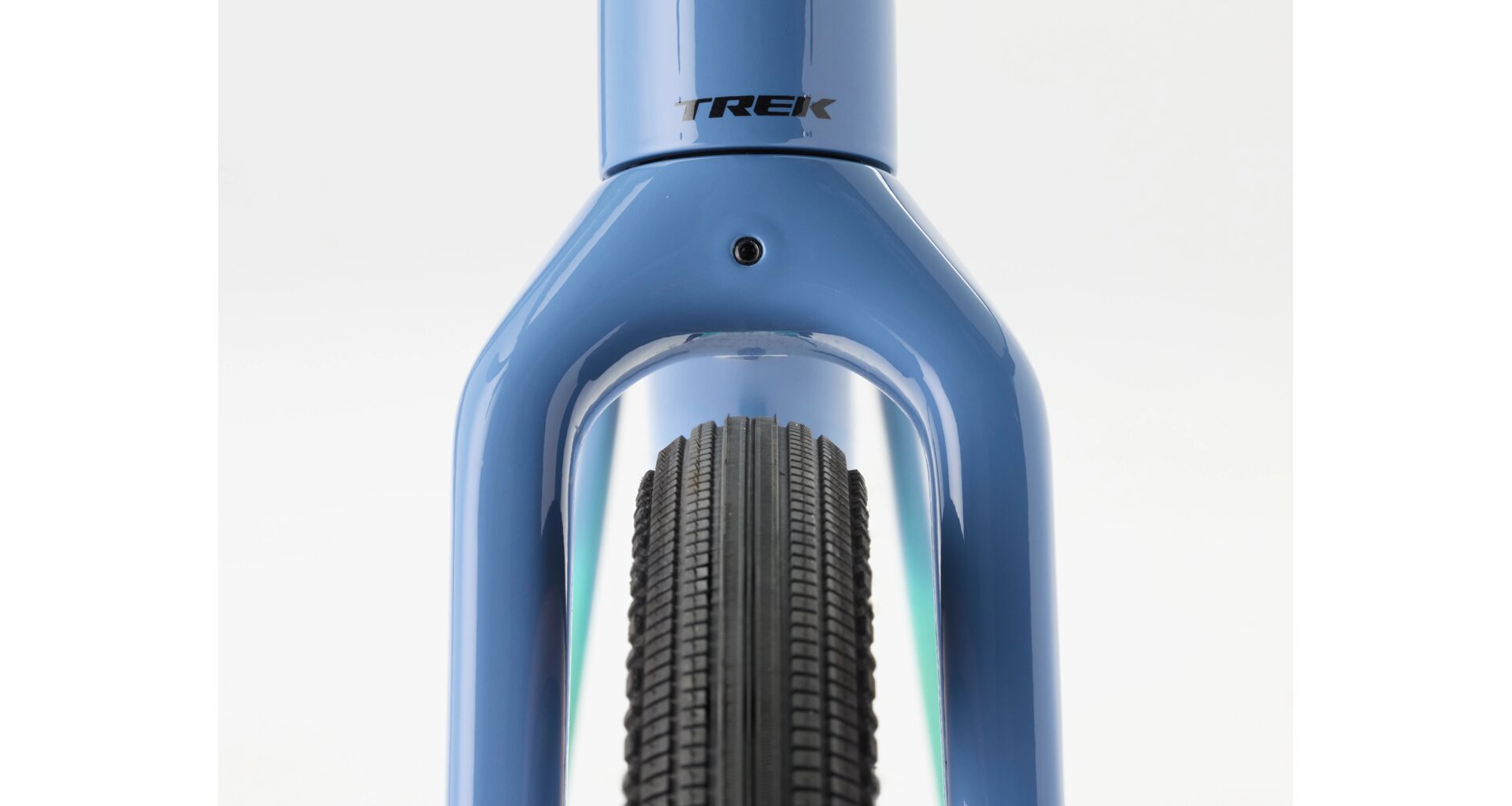

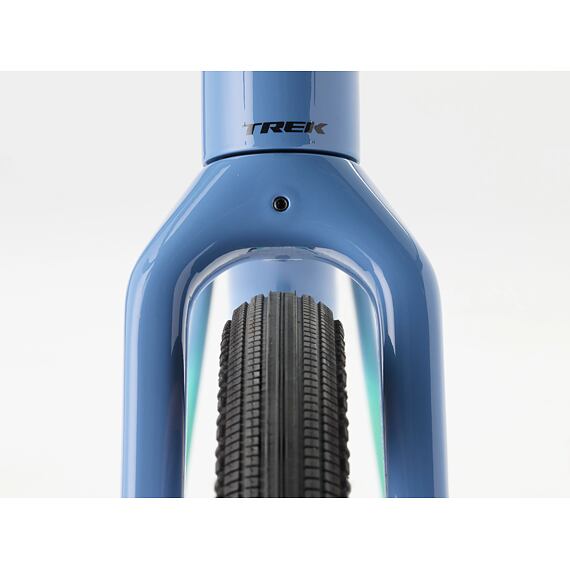

| Fork: | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |

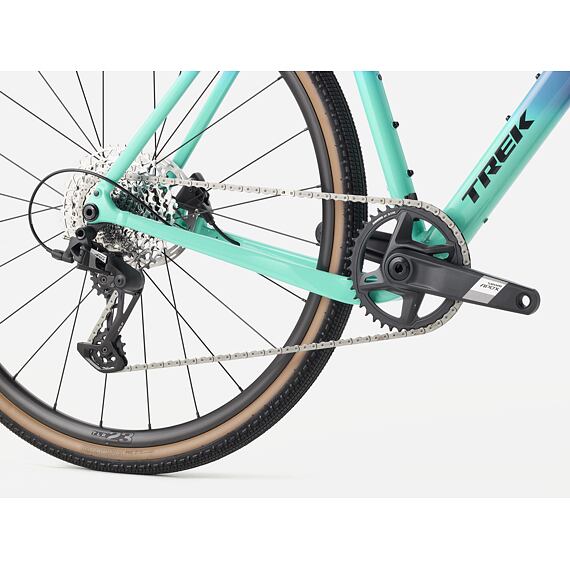

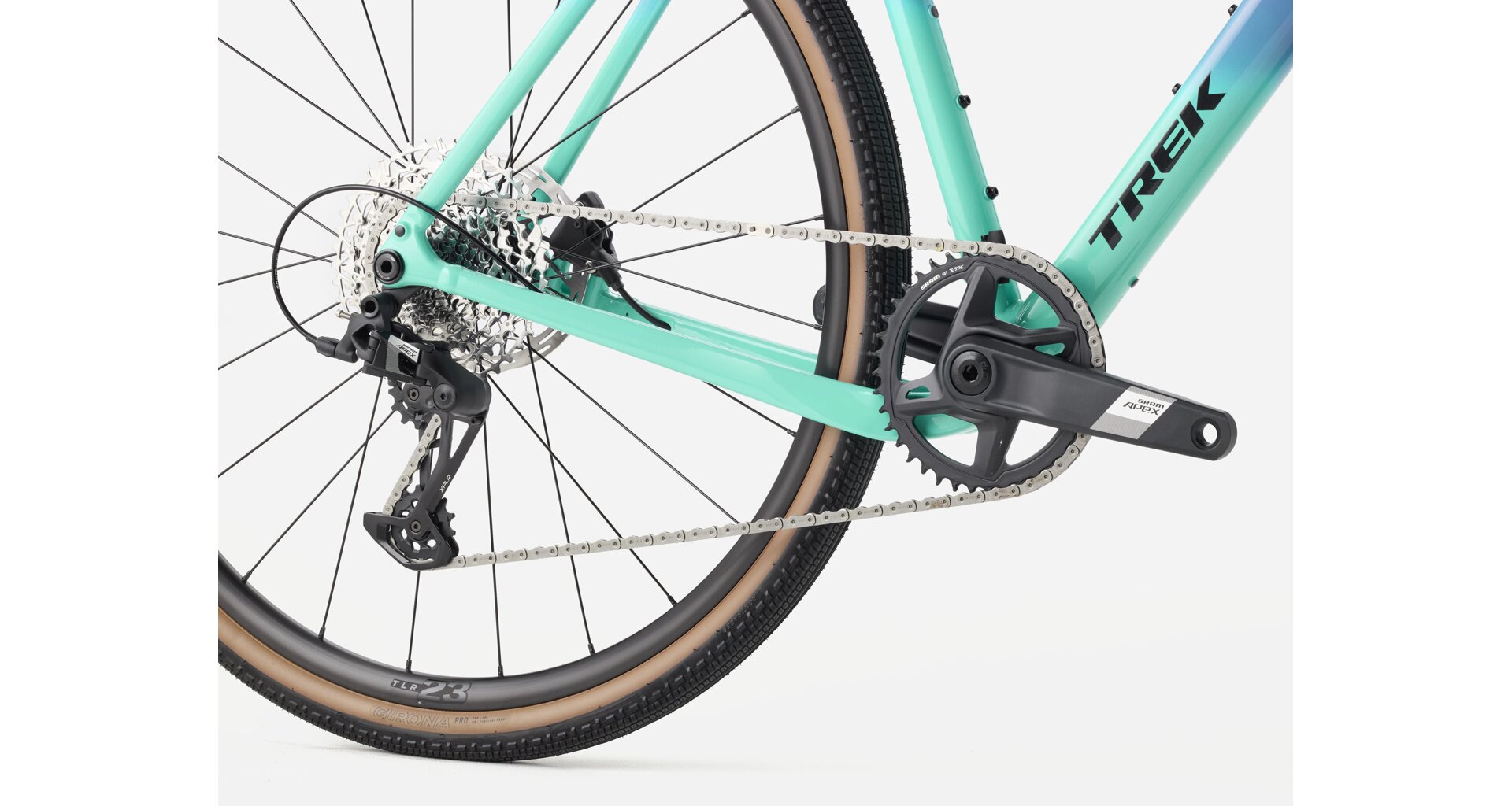

| Cranks: | SRAM Apex 1, 40 teeth, DUB Wide, length 170 mm. (Xl, L = 172.5) |
| Central composition: | SRAM DUB Wide, T47 threaded, internal bearing. |
| Shift and brake levers: | SRAM Apex, 12 speed |
| Derailleur: | SRAM Apex XPLR, max. 44 teeth chainring. |
| Cartridge: | SRAM XPLR PG-1231, 11-44, 12 speed. |
| Chain: | SRAM Apex, 12 speed. |
| Brakes: | SRAM Apex D1 hydraulic disc, flat mount |
| Brake discs: | SRAM Paceline, with rounded edges, Centerlock, 160 mm. |
| Tires: | Bontrager Girona Pro, tubeless ready, GR puncture protection, aramid bead, 60 tpi, 700 x 42 mm. |
| Tires: | Bontrager Girona Pro, tubeless ready, GR puncture protection, aramid bead, 60 tpi, 700 x 42 mm. |
| Handlebars: | Bontrager Elite Gravel, alloy, 42 cm width (L= 44, XL = 46) |
| Handlebar: | Bontrager Supertack Perf handlebar wrap. |
| Stem: | Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length. |
| Seatpost: | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length. |
| Seat: | Verse Short Comp, steel rails, width 145 mm. |
| Rims: | Bontrager Paradigm 23, tubeless ready, 24 holes, 23 mm width, Presta valve. |
| Front hub: | Alloy, Bontrager, sealed bearing, Centerlock disc, 100 x 12 mm thru axle. |
| Rear hub: | Alloy, Bontrager, sealed bearing, centerlock disc, Shimano 11-speed hub, 142 x 12 mm thru axle. |
| Weight: | M/L – 9.87 kg (with TLR sealant, without tubes) |
| Weight limit: | The bike has a maximum total weight limit of 125 kg (combined weight of bike, rider and cargo). |
| Model year: | 2026 |
Video
Parameters
-
TREK
- Product code 5332813-xx
- By discipline Gravel
- Frame material Aluminium
