RITCHEY

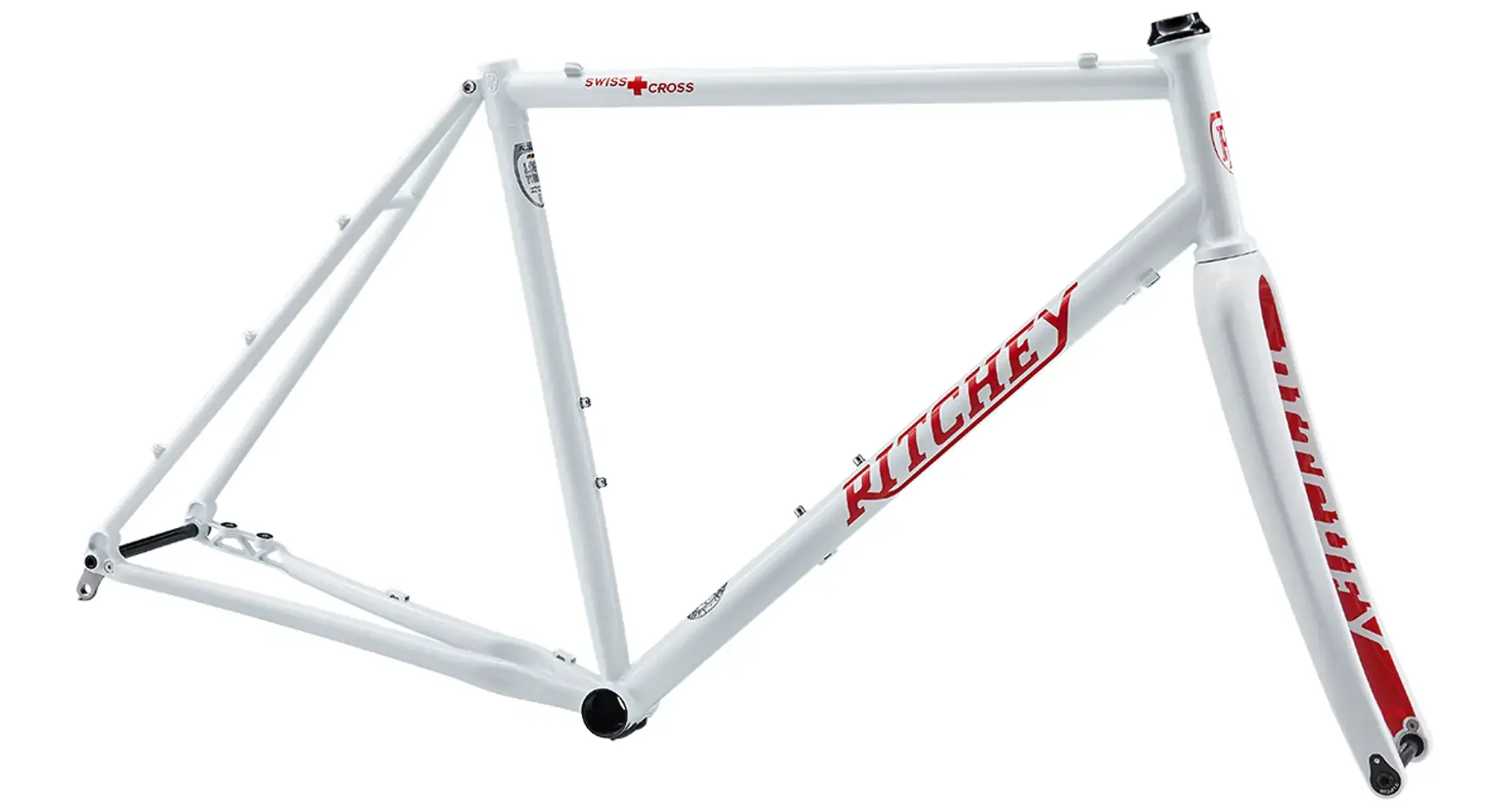

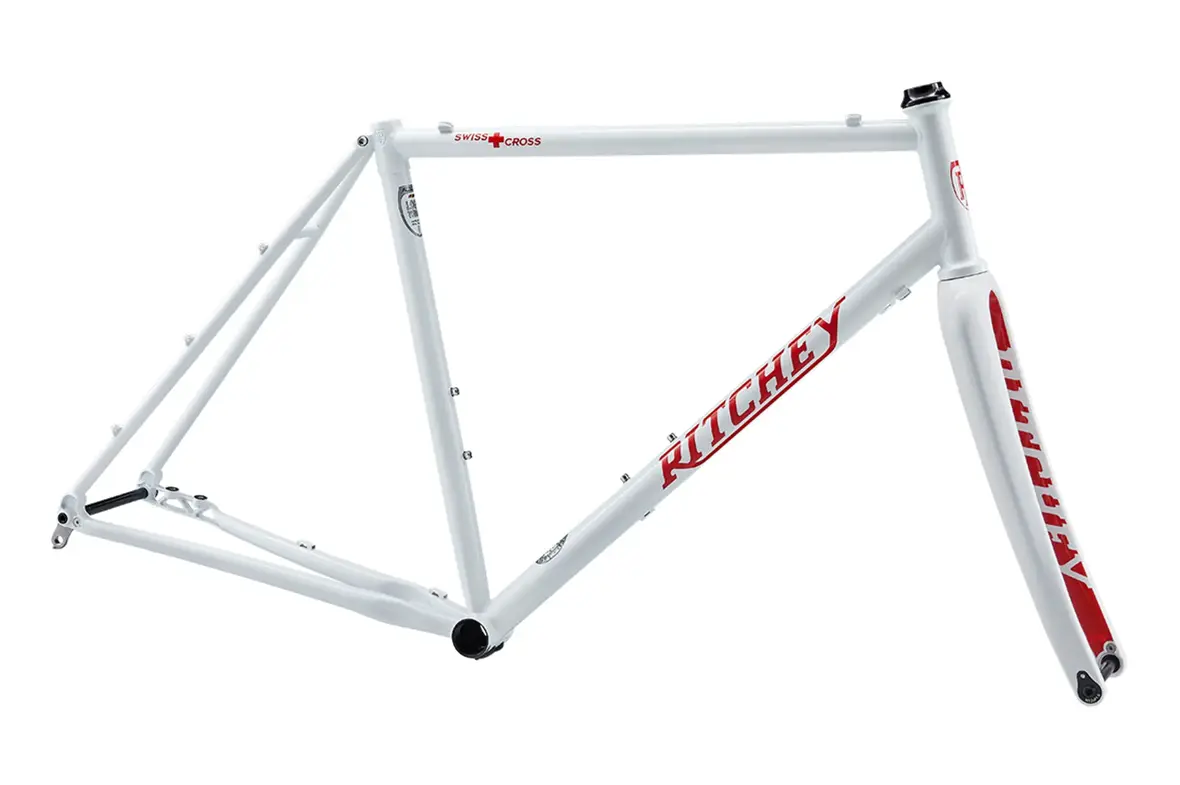

SWISS CROSS FRAMESET

RITCHEY
Info

Samostatný rám

Gravel

700c

Possibly the most iconic frame associated with Ritchey, the Swiss Cross draws its name from early factory rider, cyclocross and mountain bike legend Thomas Frischknecht. The first iteration of the Swiss Cross in 1994 was a no-holds-barred race machine designed for one thing: ripping through dirt like no other. Captained to numerous victories under Frischi, the Swiss Cross went on to become one of the most revered frames of the Ritchey offering – proving itself a winning combination of Tom’s framebuilding mastery and Frischi’s dominance in racing.

As a true ‘cross ripper or a fast gravel racer, the Swiss Cross remains lightweight and compliant, and offers the winning combination of confident responsiveness and razor-sharp handling. Its race-ready geometry will ignite the competitive spirit, while clearance for 40mm tires will appeal to those who’s pursuits reach beyond the course tape.

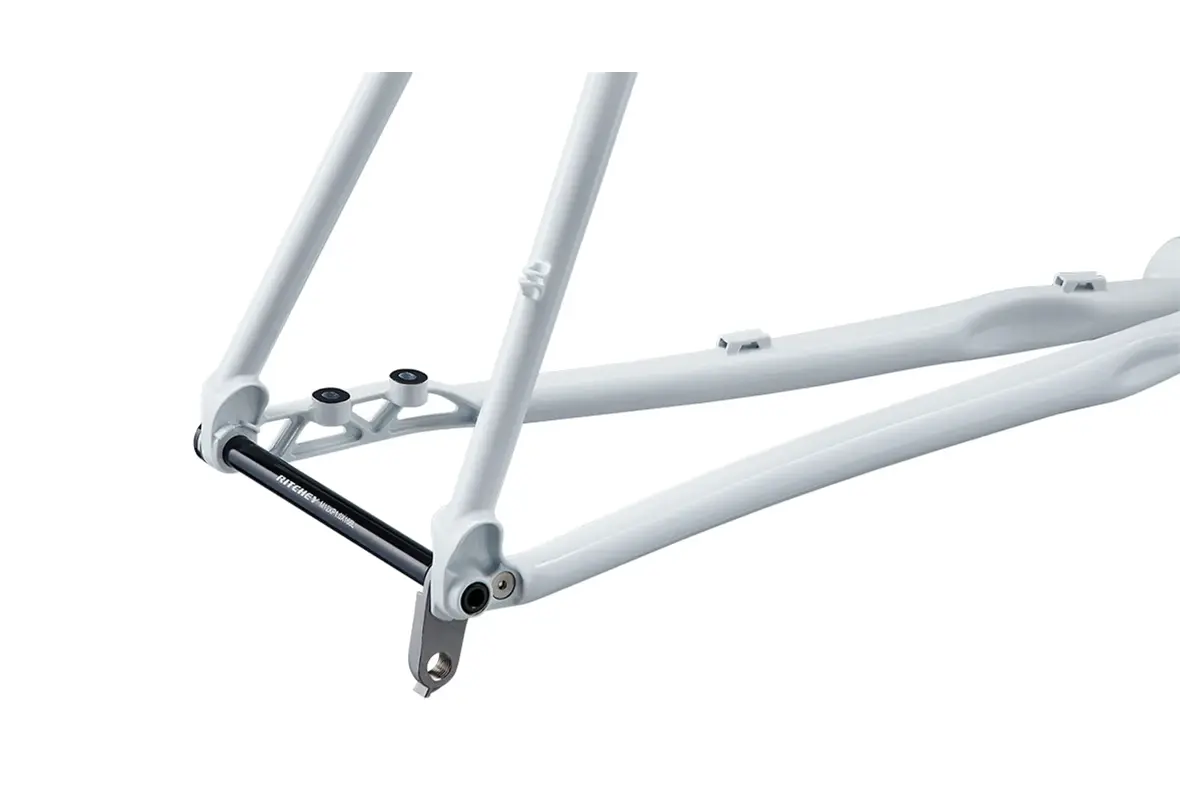

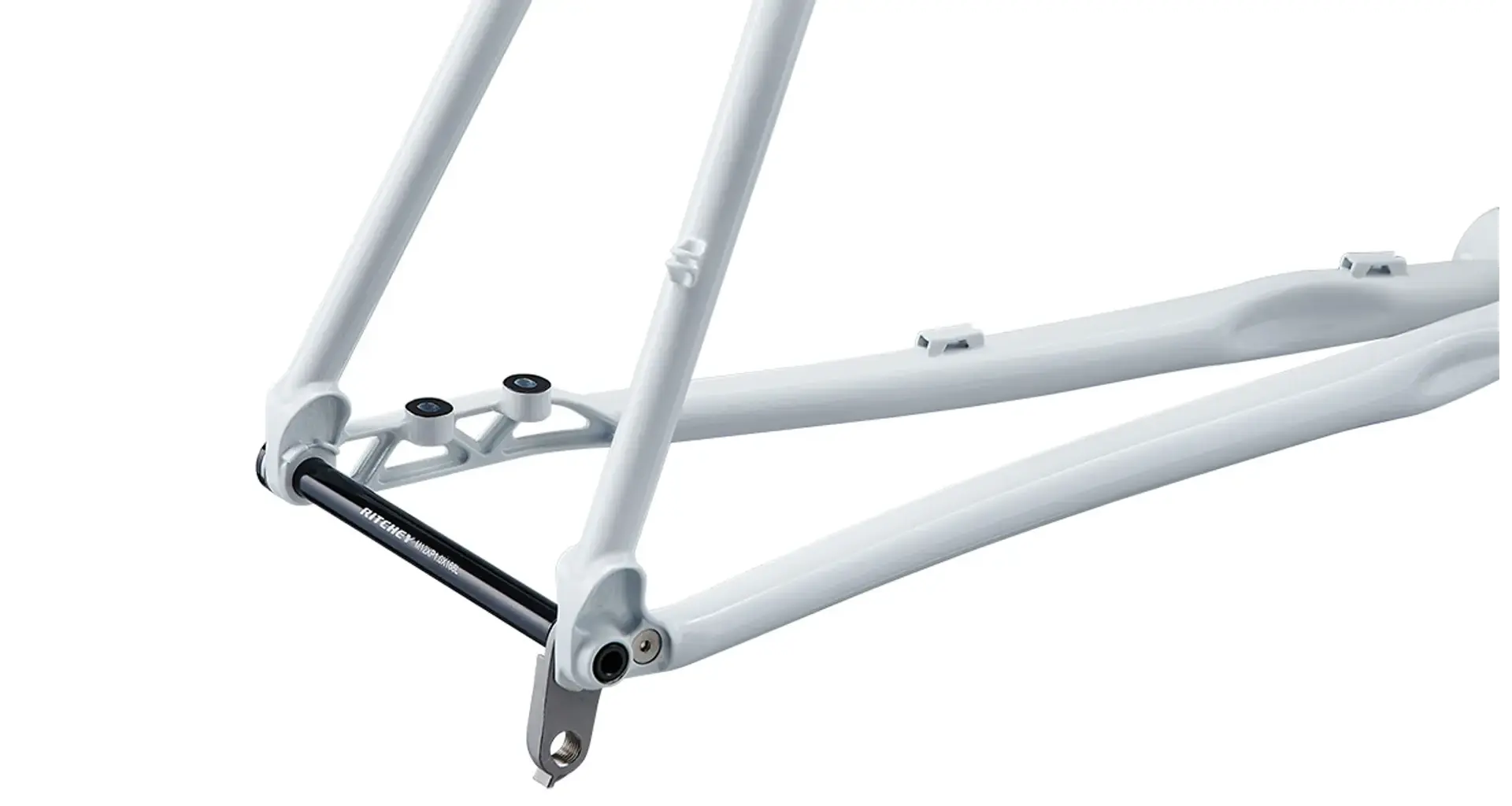

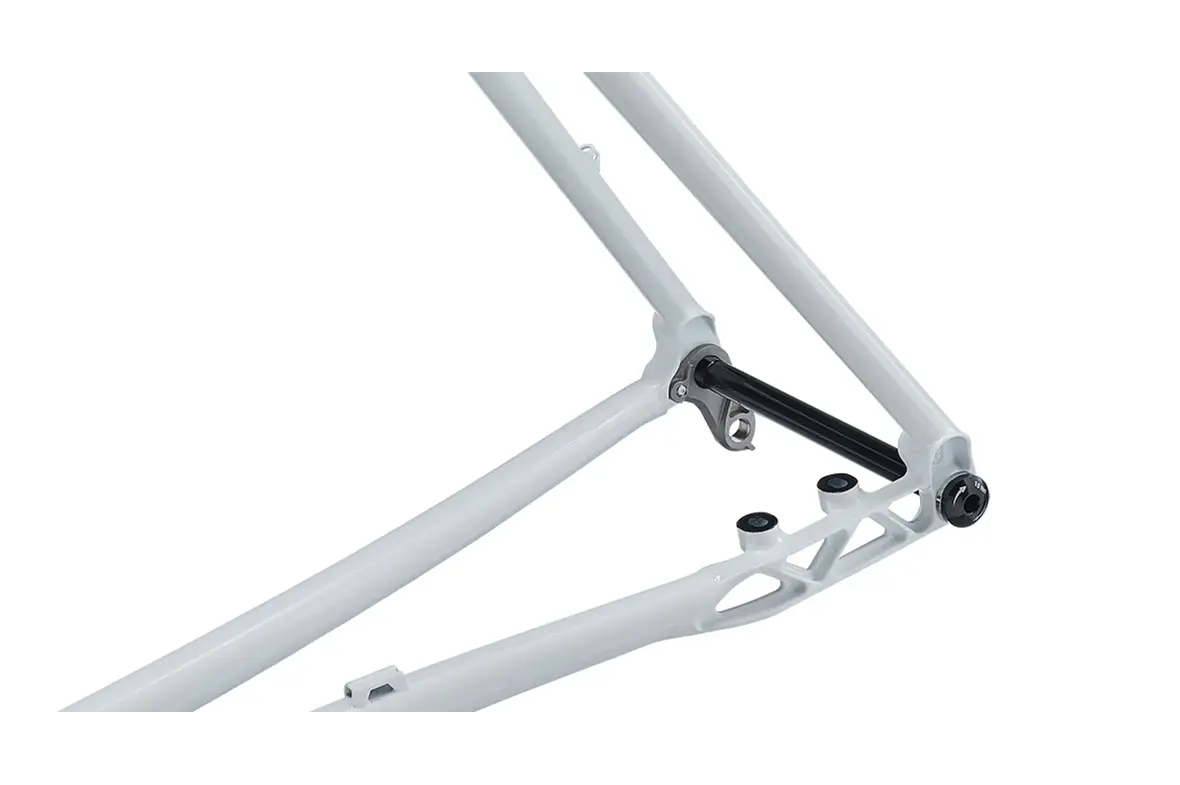

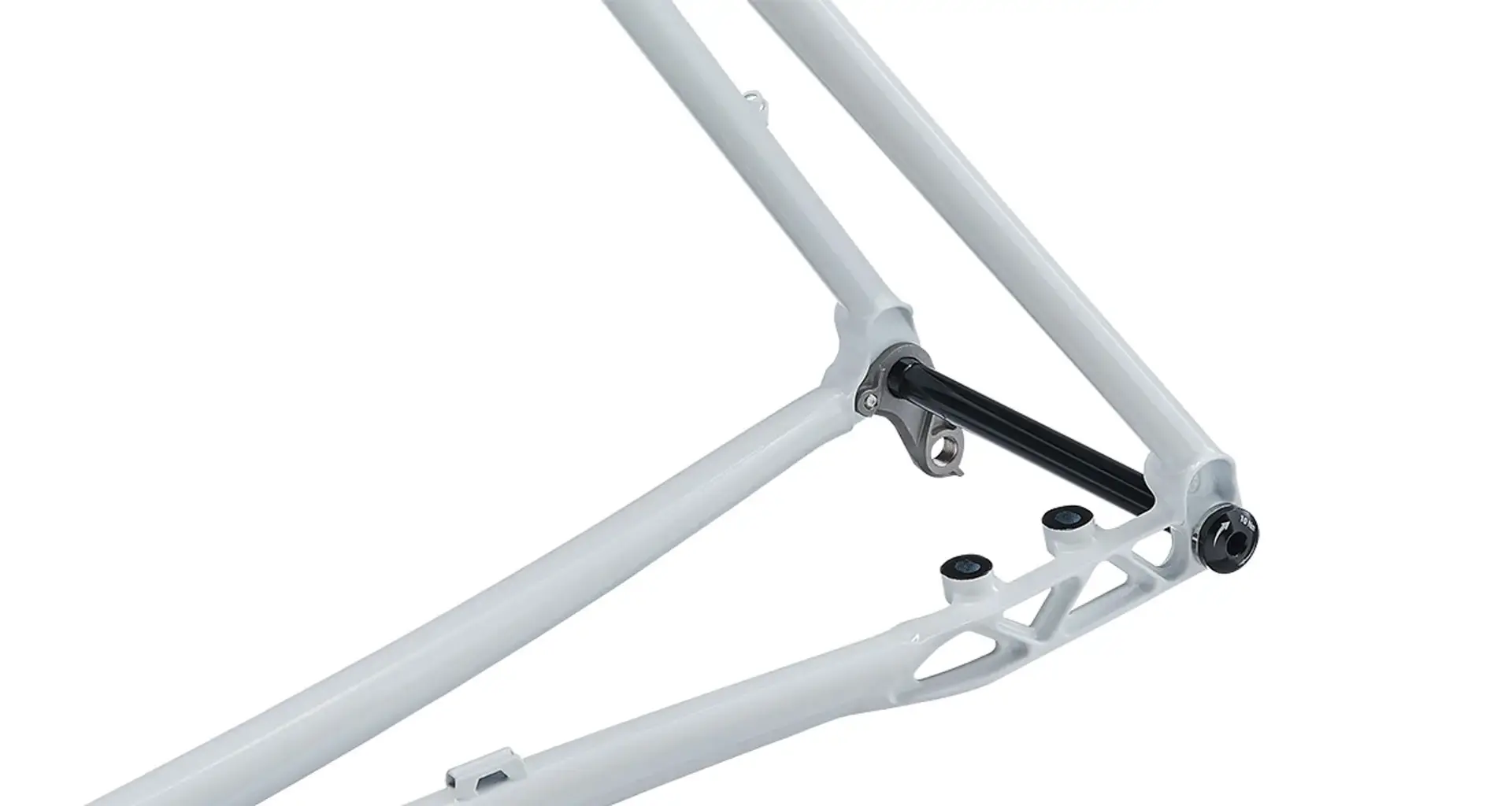

The Swiss Cross is painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing that now sports an updated one-piece truss design for flat mount brakes* - providing as much stiffness and strength of previous mounts while reducing chainstay weight significantly.

Whether it's ticking off the grueling miles of a gravel race or leading the charge on bell lap, the new Swiss Cross is more than capable of tackling it all. Go fast. Get dirty.

Technologie

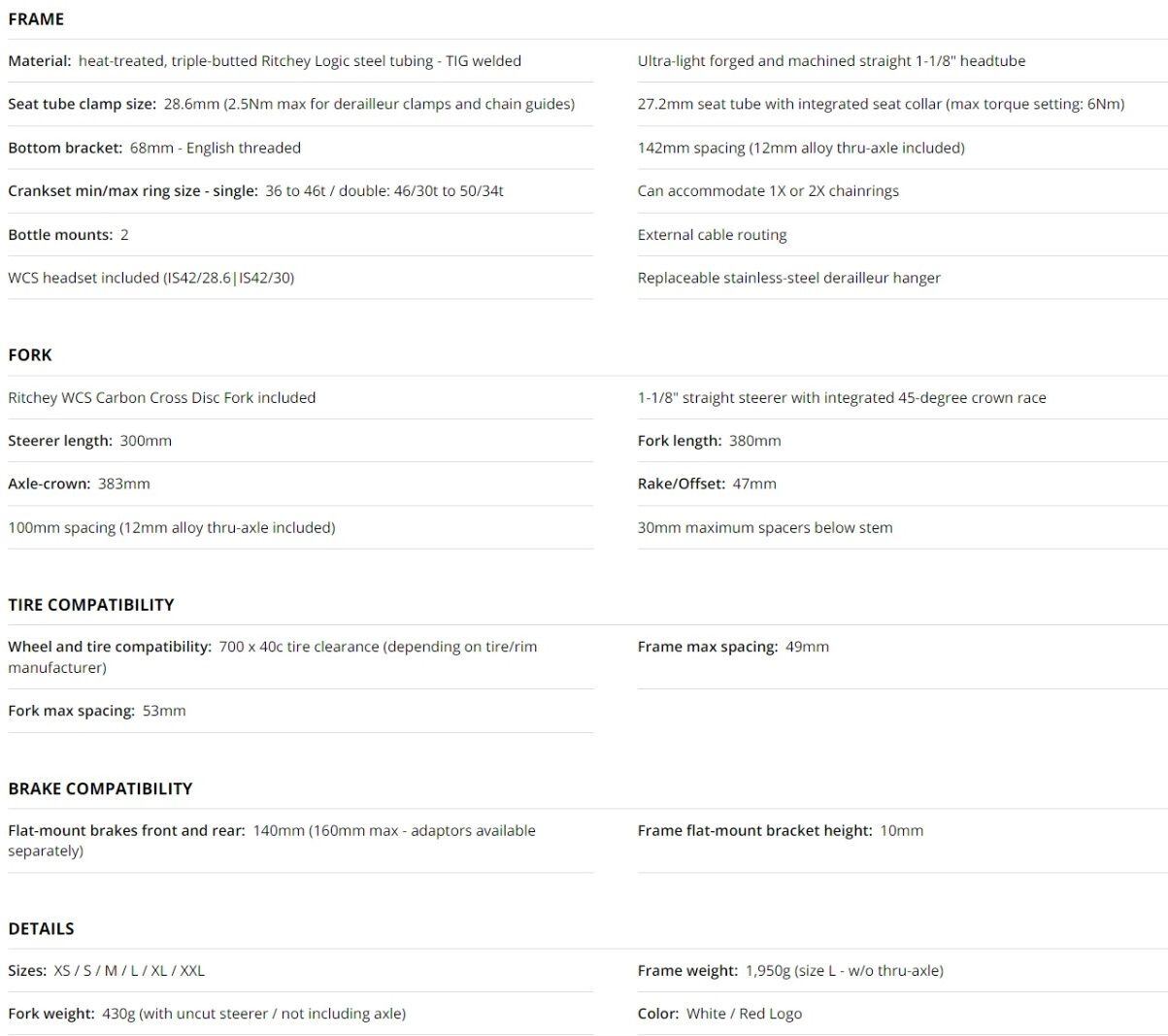

TECHNOLOGIE

Triple-butted Ritchey Logic steel tubing - TIG welded
Ritchey WCS Carbon Cross Disc Fork included
Seat tube clamp size 28.6mm

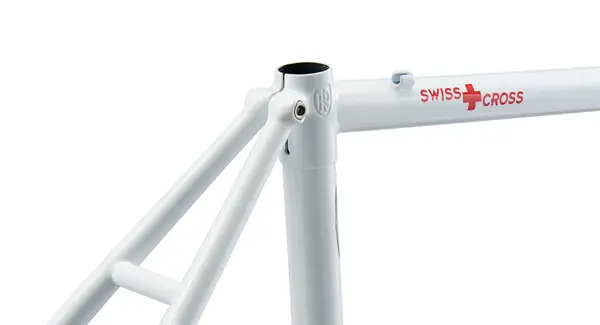

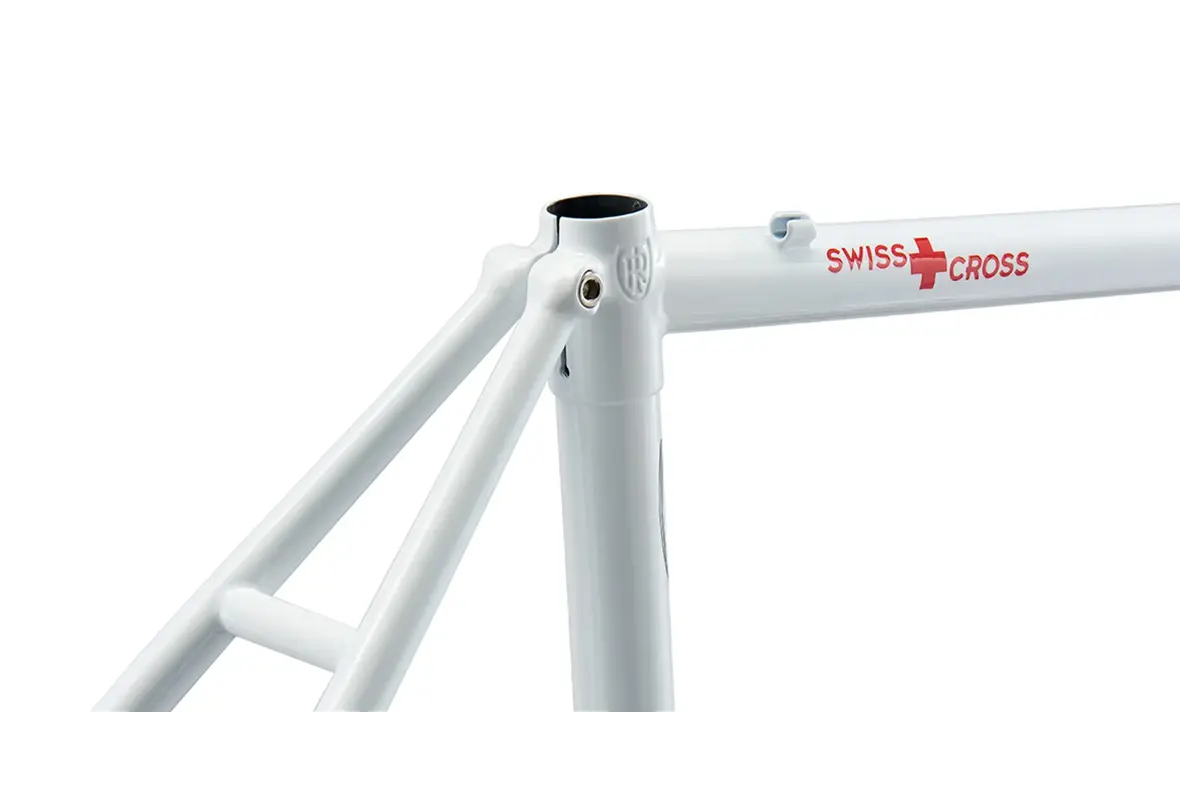

27.2mm seat tube with integrated seat collar
BB 68mm - English threaded
External cable routing
Replaceable stainless-steel derailleur hanger
700 x 40c tire clearance
WCS headset included (IS42/28.6|IS42/30)
Can accommodate 1X or 2X chainrings
Frame weight: 1,950g
Fork weight: 430g
In sizes XS-XXL
Osazení

Osazení

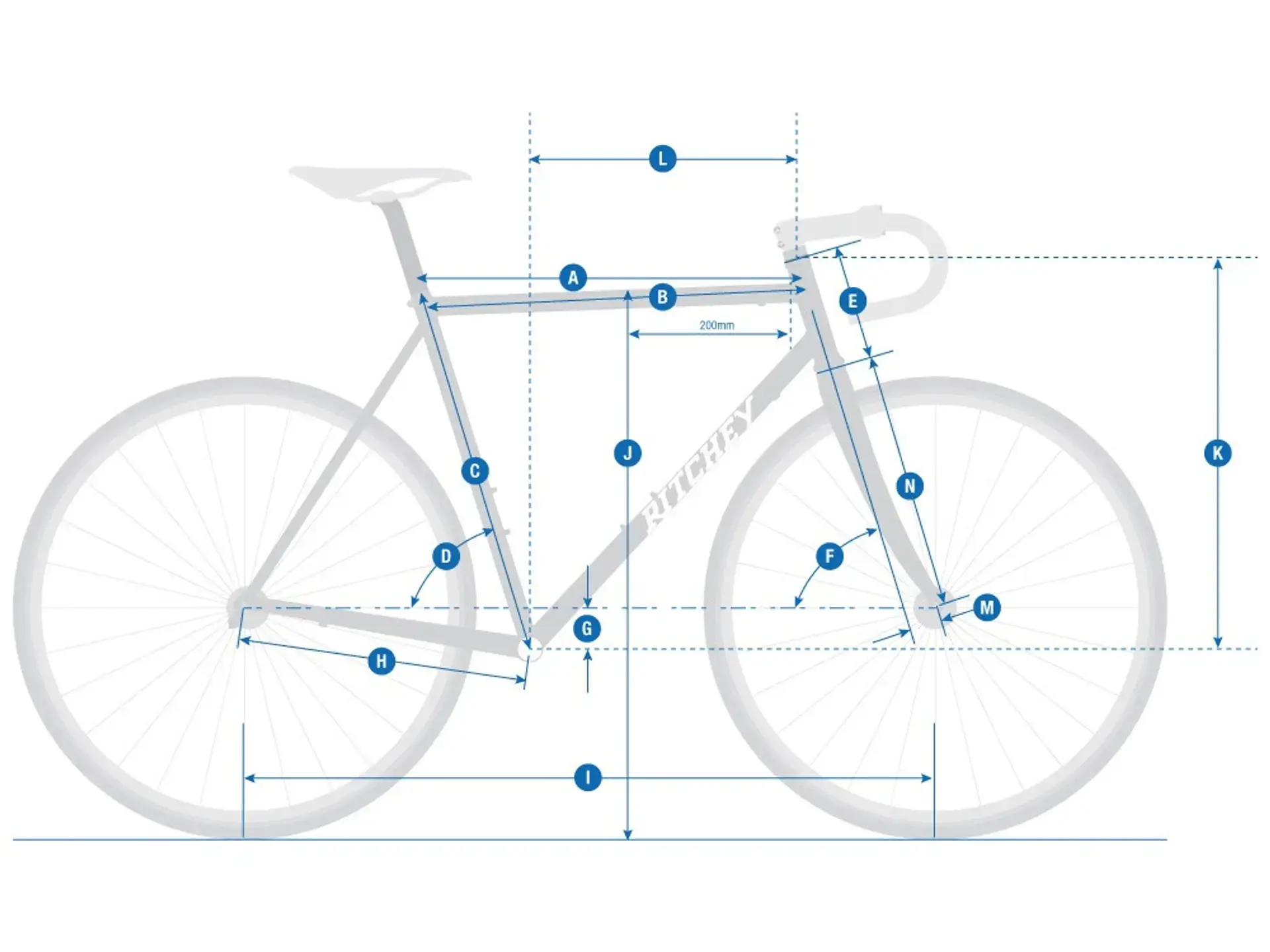

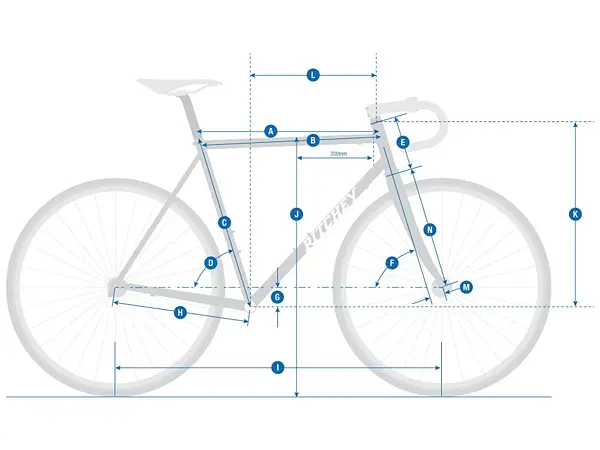

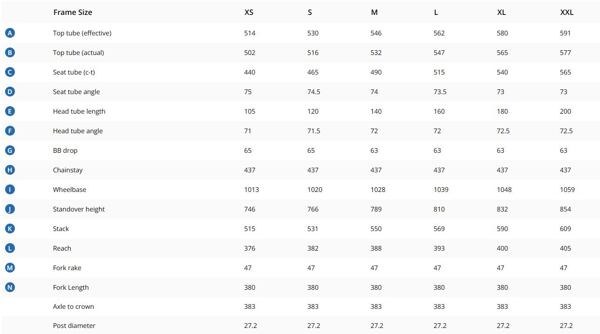

Geometrie

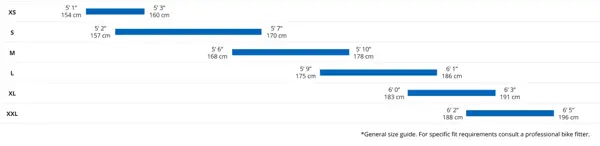

PRŮVODCE VELIKOSTÍ

PRICES AND REQUESTS

Options and prices

COLOR OPTIONS

Request

Are you interested in this bike? Great!
Do not hesitate to contact us, great deal guaranteed!

Bikes and framesets in stock

Ritchey steel frames, always personally welded and tuned by Tom. A legend!
