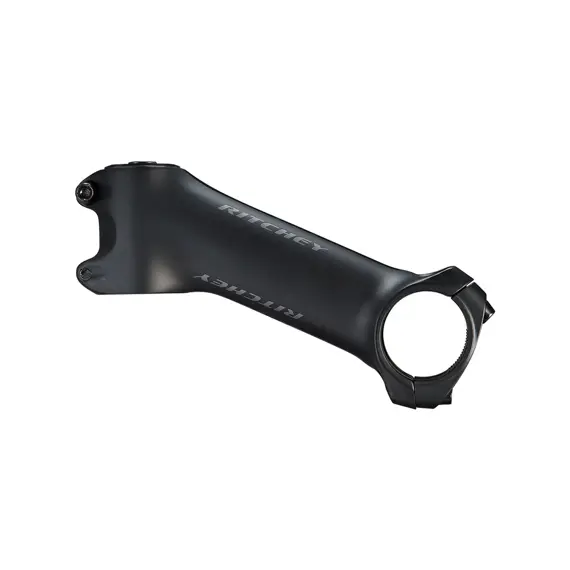

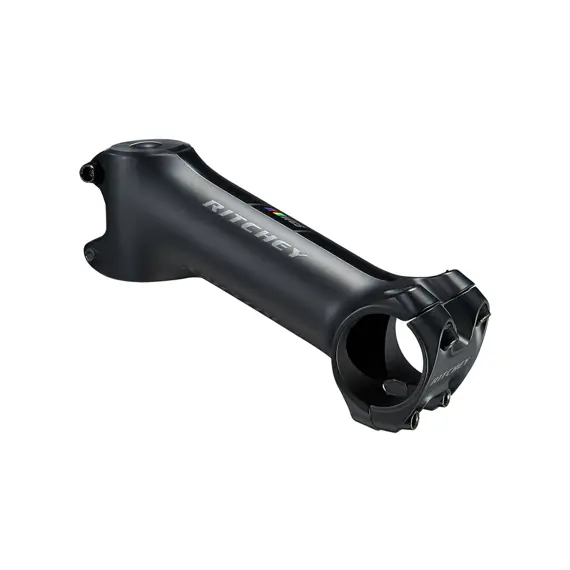

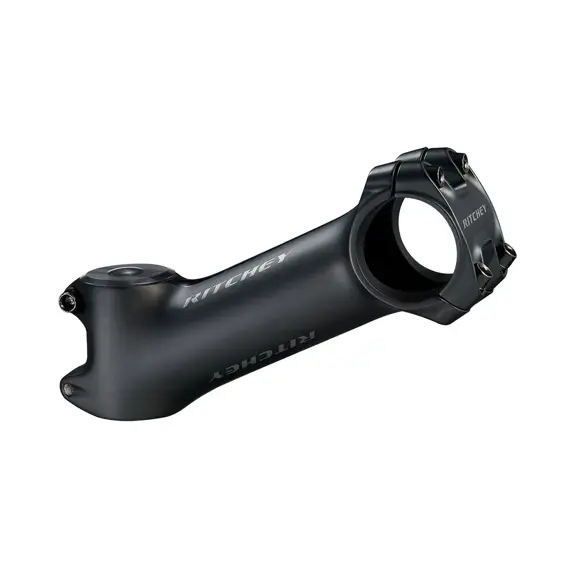

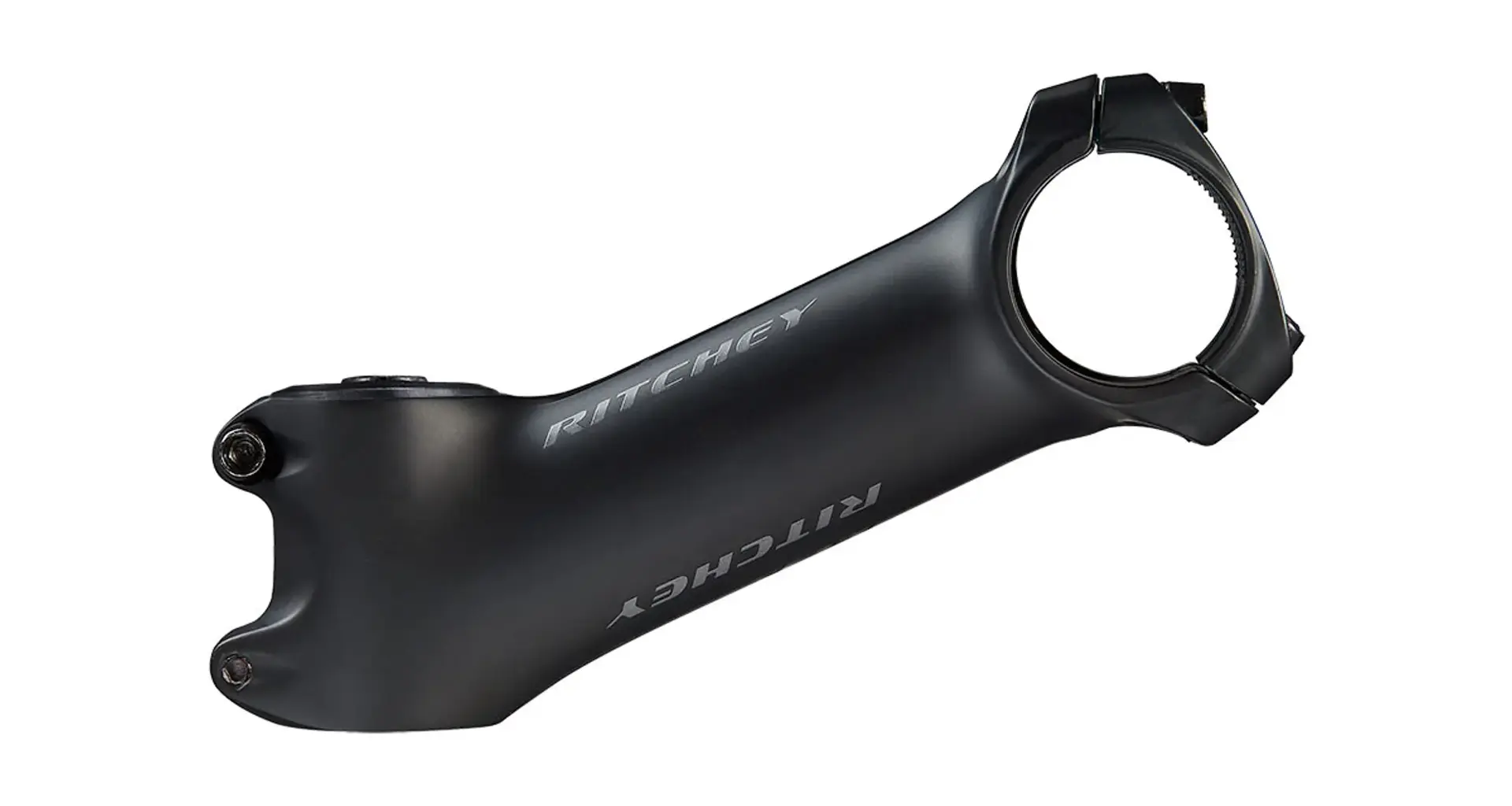

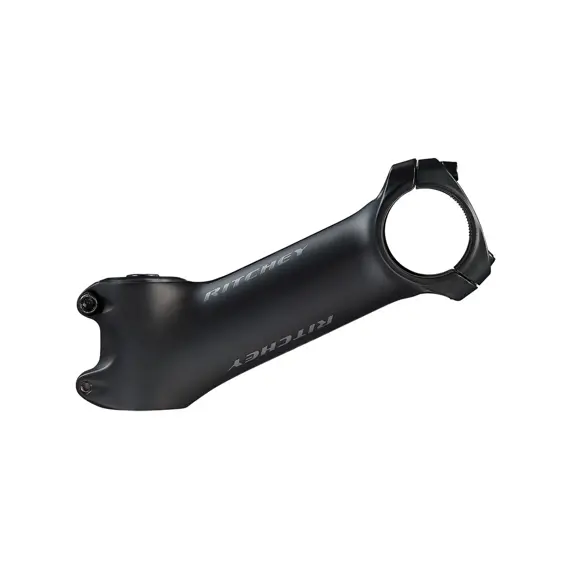

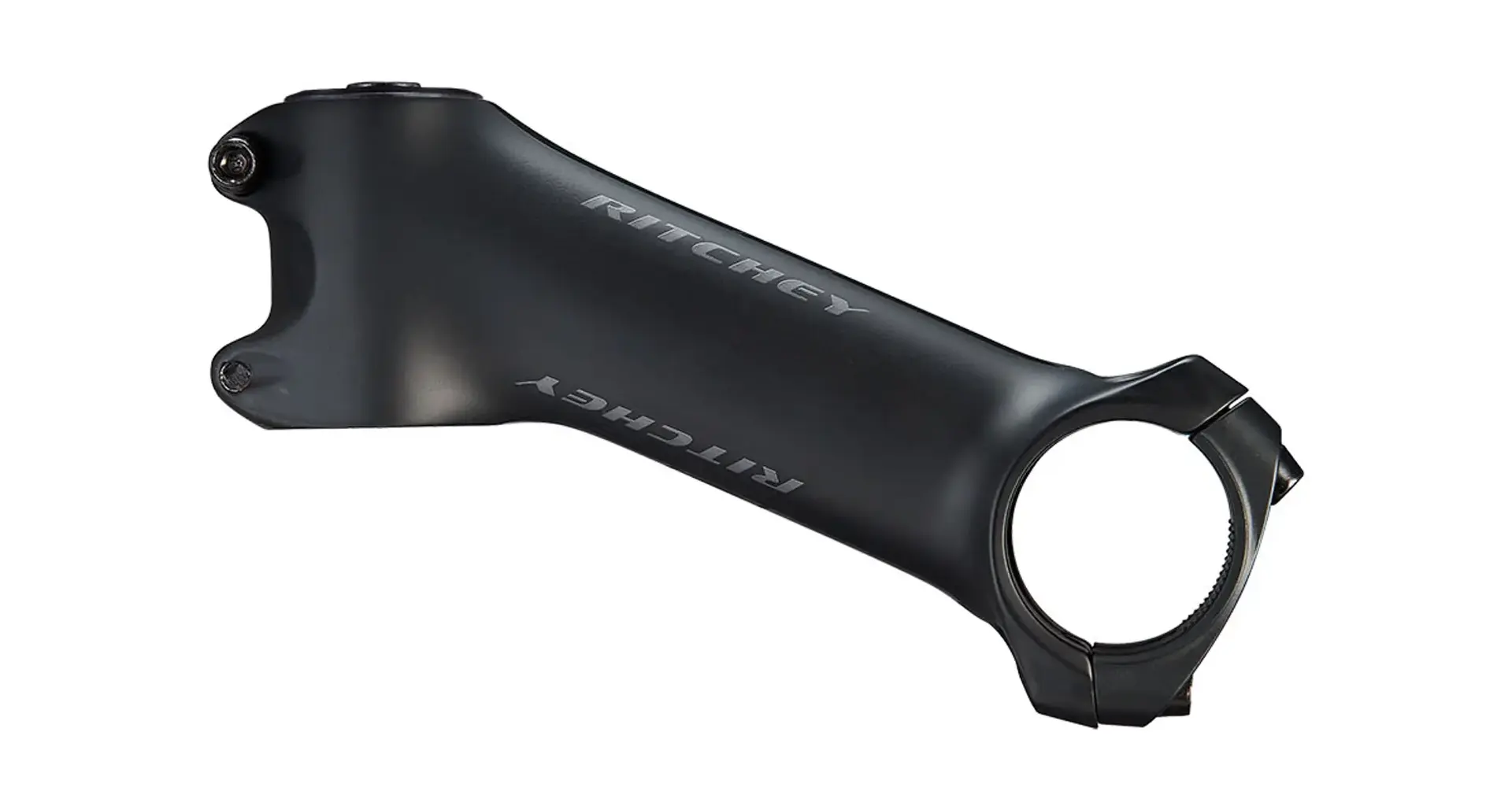

RITCHEY stem WCS C220 Blatte 25D 31.8x100mm

Product description

You really can have it all – the WCS C220 stem matches the revolutionary C260 design in performance, but with a press-fit interface and forward-facing bolts, it’s much quicker and easier to install and remove.

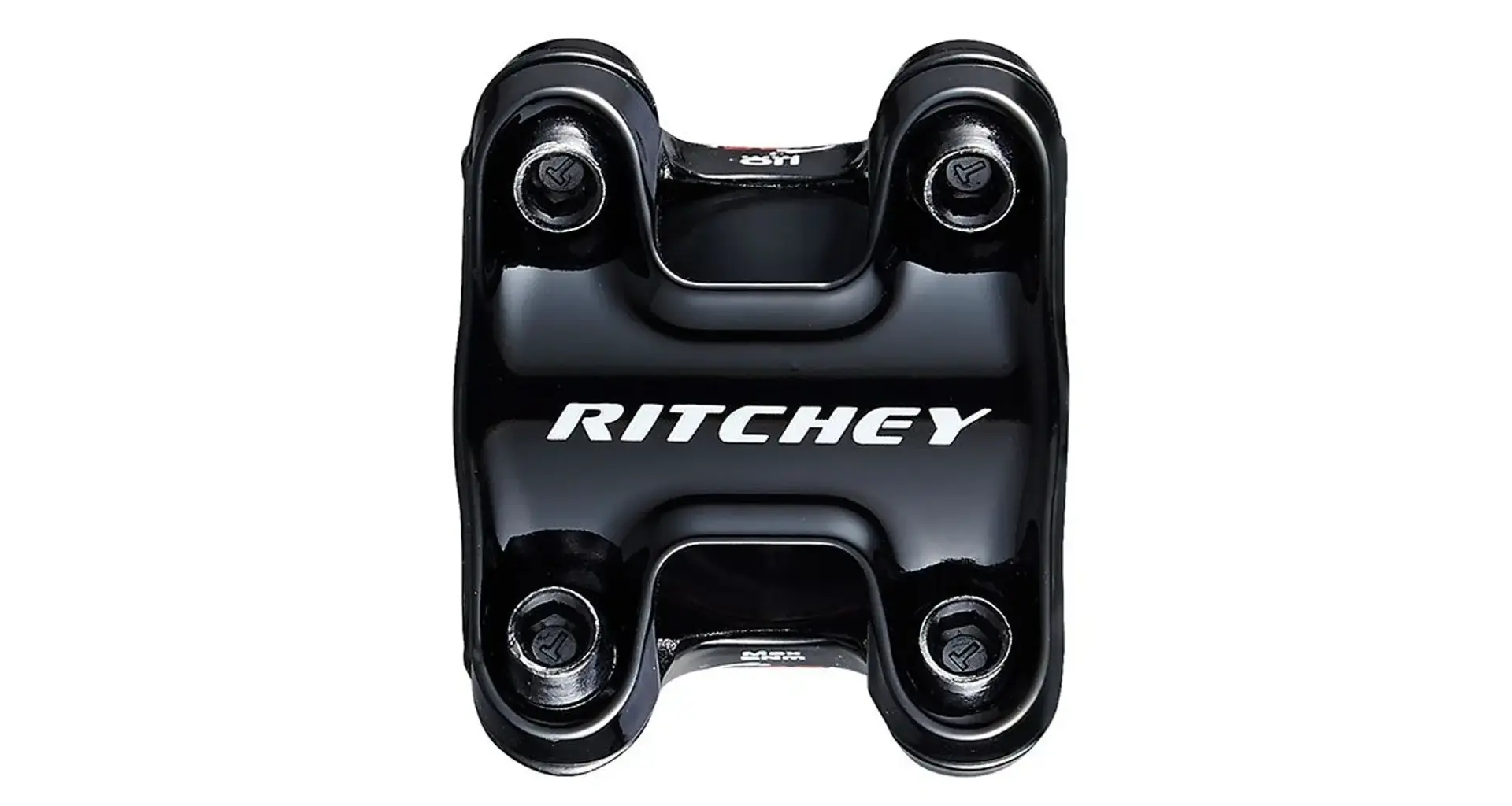

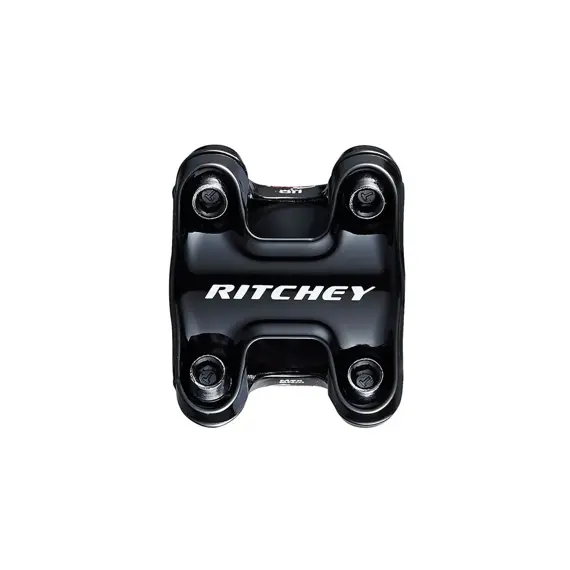

The WCS C220 25D offers +/- 25° of tilt. The C220 clamp design, first proven in Ritchey Trail stems, creates a more secure connection by wrapping the handlebars a full 220°. The bolt forces are balanced with the clamp so that the stem body literally “hugs” the handlebars. This makes the system gentler on lightweight carbon handlebars and less prone to damage. This design also allows for the use of a lighter head cap and stem body without any loss of strength or stiffness.

The stem body is forged from 2014 aluminum alloy to further reduce weight, with premium CrMo steel bolts used throughout the construction.

Key features

• Tilt: 25° (can be mounted as positive or negative)
• Post diameter: 1-1/8"
• Design: The stem body wraps around the handlebars 220°, making installation easier and ensuring perfect pressure distribution.

Specifications

• Material: 2014 aluminum alloy
• Screws: stainless steel (black finish)
• Lengths: 80–110 mm
• Angle: 25° / 65°
• Handlebar clamp diameter: 31.8 mm
• Handlebar clamp width: 44 mm
• Fork Stem Diameter: 1-1/8" (28.6 mm)
• Height of the socket on the post: 46 mm
• Weight: 136 g (at 100 mm length)
• Color: Blatte (matte black)

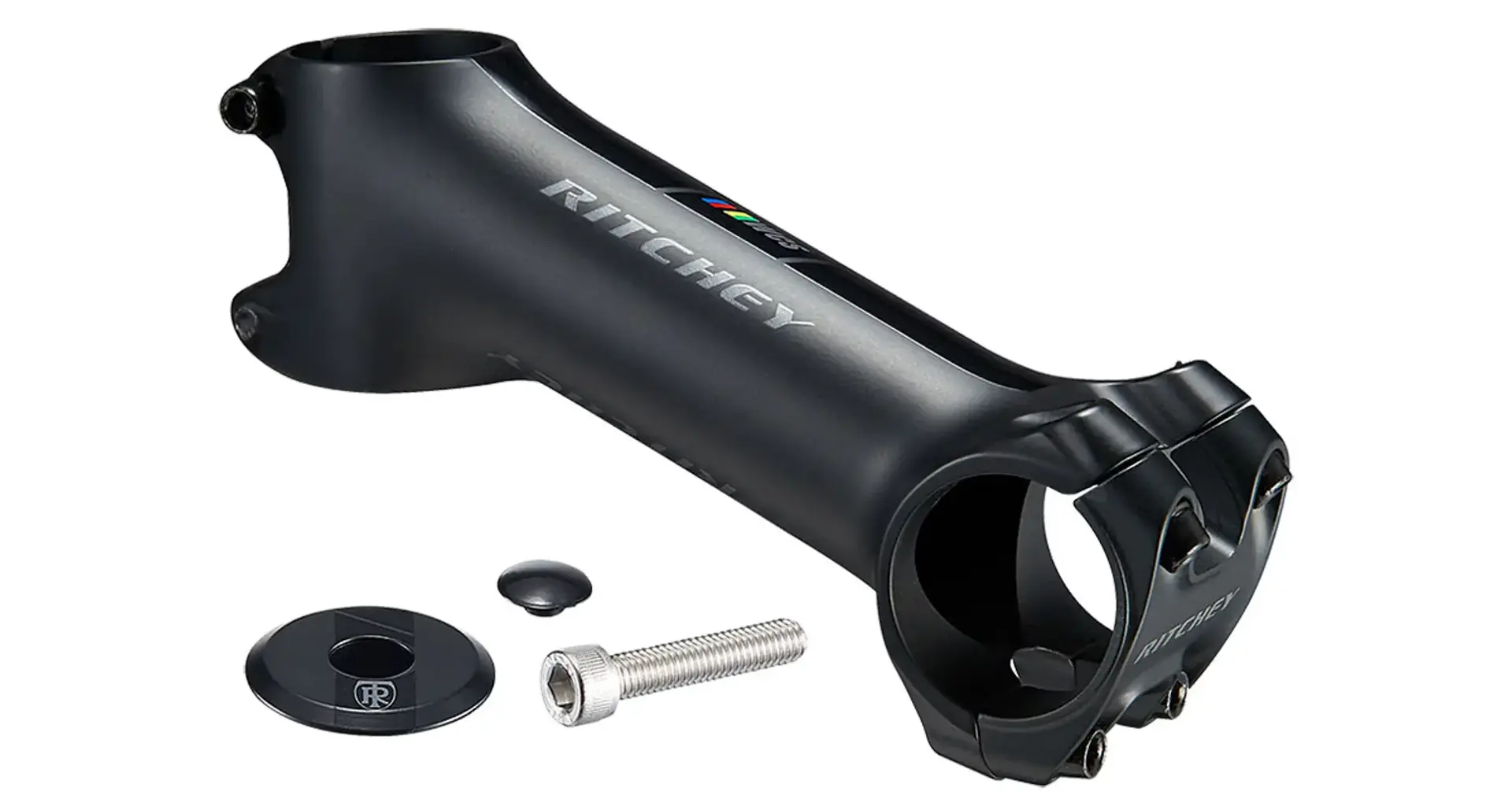

• Package contents: including matching top cap
