RITCHEY main assembly Upper COMP Switch Integrated IS52/28.6 no cable guide

Product description

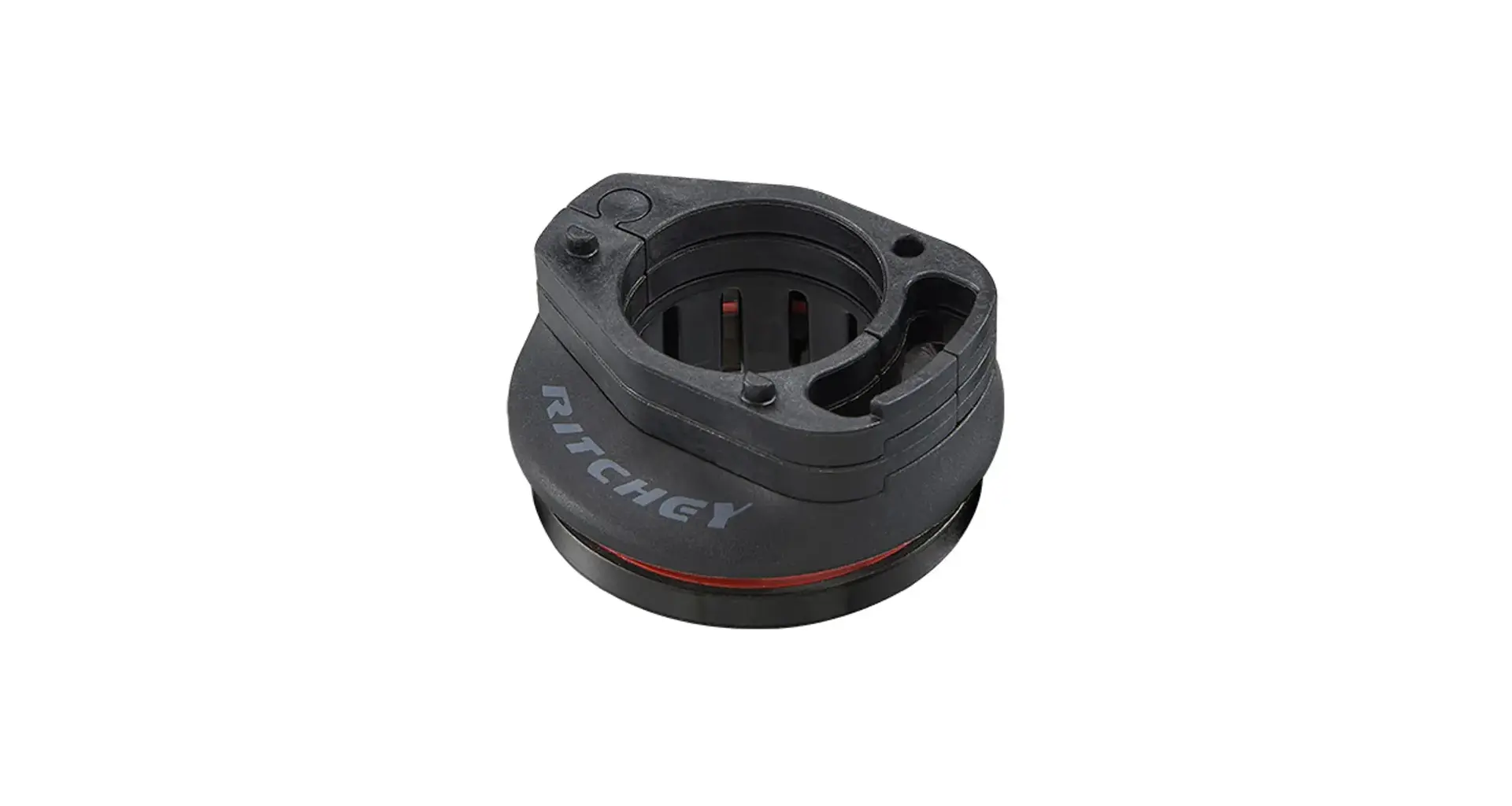

This new headset top is a key part of the Ritchey Comp Switch system. It is designed specifically to work with the Ritchey Switch Stem to allow for elegant routing of shift cables, electronic wires and hydraulic hoses directly from the handlebars to the bike frame.

The cables are routed from the handlebars into a special channel on the underside of the Switch stem, then through a hole in the front of the pads and two channels at the top of the headset and into the frame. This sophisticated system ensures that the headset bearings can perform their function completely freely, without any restriction or friction caused by the cables passing through.

About the Ritchey Switch system

The Ritchey Switch System is an innovative integrated solution for easily hiding internal routing. It is designed for frames with a straight 1.5" head tube in combination with tapered 1-1/8" - 1.5" forks. The entire system consists of three elements:

• Switch stem
• Switch headset
• Switch pads

Main advantages

• Clean integration: Cables disappear from view directly under the stem, improving both aerodynamics and aesthetics of the bike.
• Smooth operation: The design separates the wiring from the bearings, so the steering remains light and smooth.
• Complete set: The package includes two special Switch Spacer pads (5 mm) with a locking system.
• Durable material: Made from a combination of nylon and fiberglass for an optimal weight-to-strength ratio.

Video

Technical specifications

• Material: Nylon + fiberglass
• SHIS designation: IS52/28.6 (1.5”)
• Head tube inner diameter (ID): 52 mm (IS)
• Head tube outer diameter (OD): 56 mm (IS)
• Stack height: 21.7 mm
• Bearings: 51.90/40 mm, 45°/45° – partially sealed (SSC)

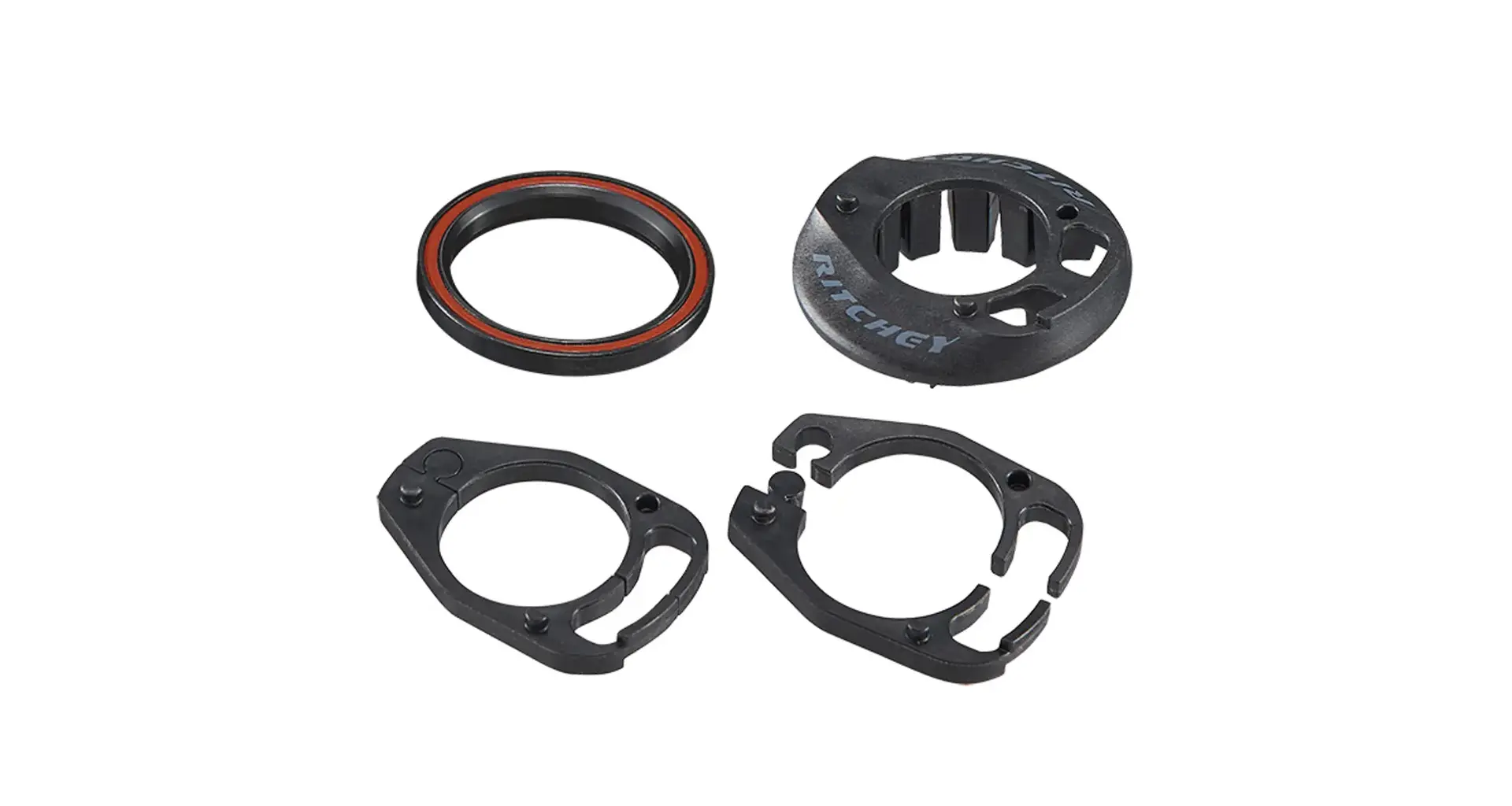

• Package contents: Upper part of the assembly, 2x 5mm Switch washer
• Weight: 54g
• Please note: The hedgehog and the top cap (compression cap) are not included. For an ideal fit, the IS version requires a bearing seat depth in the frame of 8.7 mm (check with your frame manufacturer).
