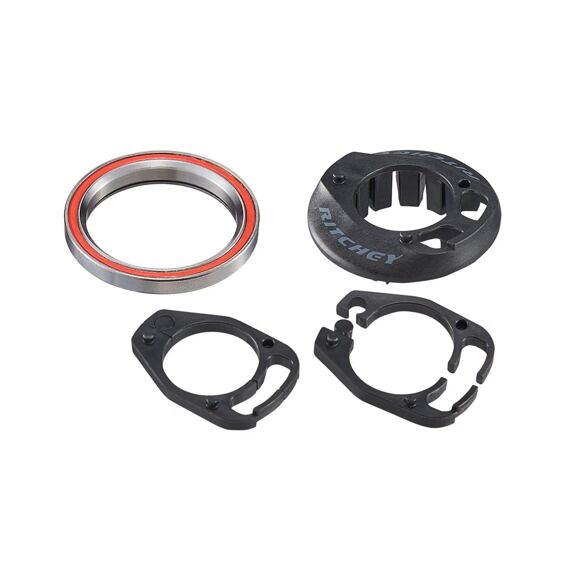

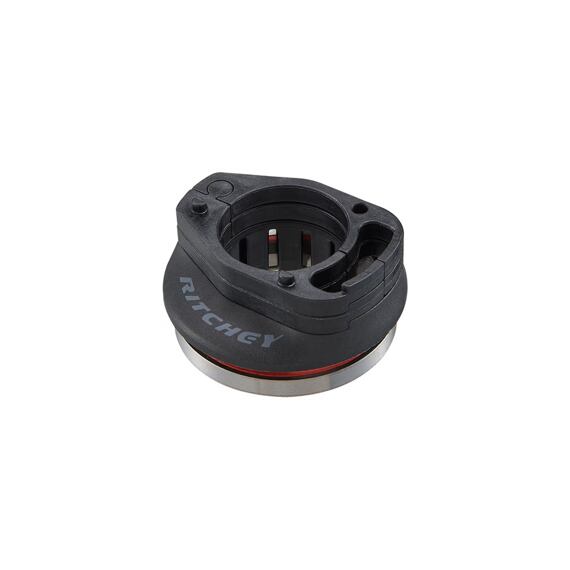

RITCHEY headset Upper COMP Cartridge Switch Integrated IS52/28.6 no cable

Product description

Ritchey Switch System is an innovative integrated system designed for easy and clean internal routing of cables, housings, and hydraulic hoses directly from the handlebars into the frame. It is designed for frames with a straight 1.5" head tube and a tapered fork 1-1/8" – 1.5". This system not only ensures a clean aesthetic look but also simplifies service access.

Key features

• Clean and professional cockpit appearance
• Easy compatibility with modern frames and forks
• Ideal for road, gravel, and XC bikes with internal cable routing
• Compatibility: 1.5" head tube and tapered 1-1/8" – 1.5" fork

Specifications

• Material: Nylon + fiberglass
• Stack Height: 21.7 mm (IS) / 23.7 mm (ZS)
• Internal head tube diameter: 52 mm (IS) / 55/56 mm (ZS)
• External head tube diameter: 56 mm (IS) / 61/62 mm (ZS)
• S.H.I.S.: IS52/28.6 (1.5")
• Bearings: 51.80 mm / 40 mm, angle 45°/45°, sealed ACB cartridge
• Weight: 54 g
• Color: Black
• Contents: 2 x 5mm interlocking (interconnecting) spacers
• Note: Compression cap is not included in the packaging
