RITCHEY handlebar with SUPERLOGIC ERGOMAX 38 integration

Product description

Tom Ritchey's original ErgoMax quickly gained a legion of fans for its comfort, adaptability, and "I'll ride anything" attitude. Now, the new SuperLogic ErgoMax enters the elite full-carbon category. Tom Ritchey has given this bar a few key upgrades without taking away any of its mixed-surface soul.

The handlebars are made from premium carbon fiber and feature a compact bend shape and an ergonomic top section. This combination significantly reduces fatigue and provides better hand support during long days (and nights) in the saddle, whether you're riding on asphalt or off-road. A 20mm rise in the clamp area allows for a more upright and comfortable sitting position, while a generous 17.5° drop flare ensures stability and confidence no matter what's happening under your wheels.

SuperLogic ErgoMax supports full and partial internal cable routing and is fully compatible with the Shimano EW-RS910 unit.

Main advantages

• Ergonomic design: Flattened top and slight backsweep for a natural palm position.
• Maximum control: A pronounced 17.5° flare provides leverage and stability on technical descents.
• Versatility: 90mm center section offers plenty of room to mount an aerobar (bar) or bags.
• Integration: Prepared for internal wiring, giving the cockpit a clean look.

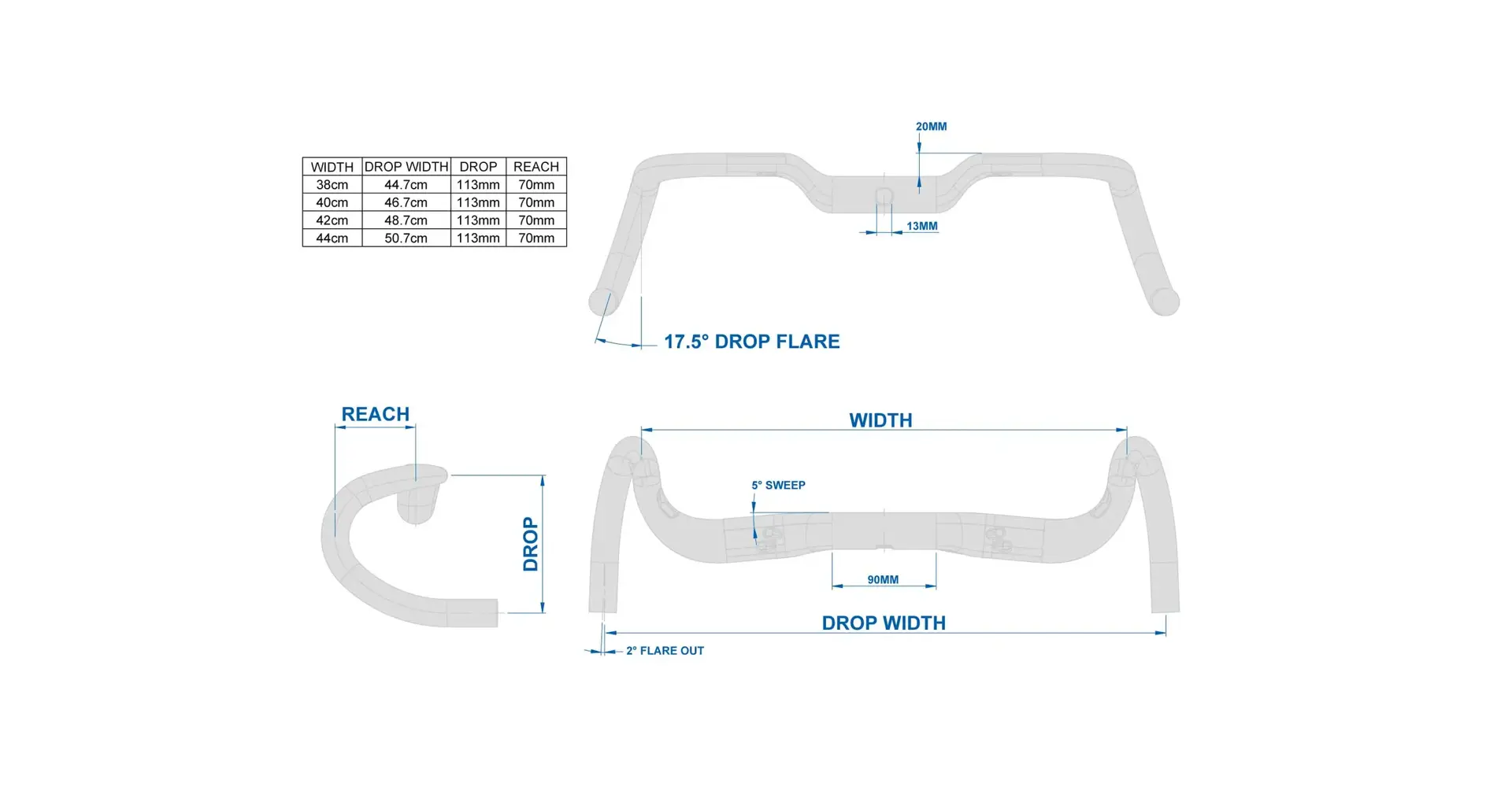

Technical specifications

• Material: Carbon fiber
• Arc shape: Compact
• Upper section: Ergonomic
• Width:, 42 cm
• Drop (lowering): 113 mm
• Reach: 70 mm
• Drop Flare: 17.5°
• Backsweep: 5°
• Rise: 20 mm
• Clamp diameter: 31.8 mm
• Cable routing: Fully or partially internal (compatible with Shimano EW-RS910)
• Barbell compatibility: Yes
• Weight: 240g +/- 10g (width 42cm)
• Surface finish: Matte UD carbon
• Important notice: No compatible with Ritchey C260 stems
