RITCHEY handlebar WCS BEACON XL Blatte 52

Product description

The ergonomic evolution of Ritchey handlebars reaches its peak with the revolutionary Beacon XL. To the already groundbreaking 36° drop flare, this version adds a crucial element: an extreme 52cm width. In addition to the unrivaled comfort and stability this combination provides, there is also a huge amount of space between the levers for the largest handlebar bags and panniers.

When riding in the hooks, the Beacon XL focuses on comfort with a very shallow drop ( 80 mm ) and a shorter reach than is common in rams. The aerodynamically shaped upper section offers wide palm support and has a gentle backsweep for a more natural hand position when holding up.

The Beacon XL’s unconventional aesthetic is packed with practicality. Inspired by the world of randonneurs, it allows riders to easily change grips without compromising the stability of their bike, even when fully loaded. This fluid hand movement allows the body to stretch while riding, while the bike remains completely still and controllable.

Ideal for adventure expeditions, bikepacking and challenging gravel trails – the unique Beacon XL brings a whole new dimension of comfort and control.

Main advantages

• Extra wide XL (52 cm): Provides leverage comparable to MTB handlebars and endless space for bikepacking bags.
• Extreme Flare 36°: Absolute confidence in technical passages and stability when riding off-road.
• Shallow profile: A drop of just 80 mm allows for quick and easy grip changes without a deep forward lean.
• Premium material: Triple-butted 7050 aluminum alloy for high rigidity while maintaining low weight.

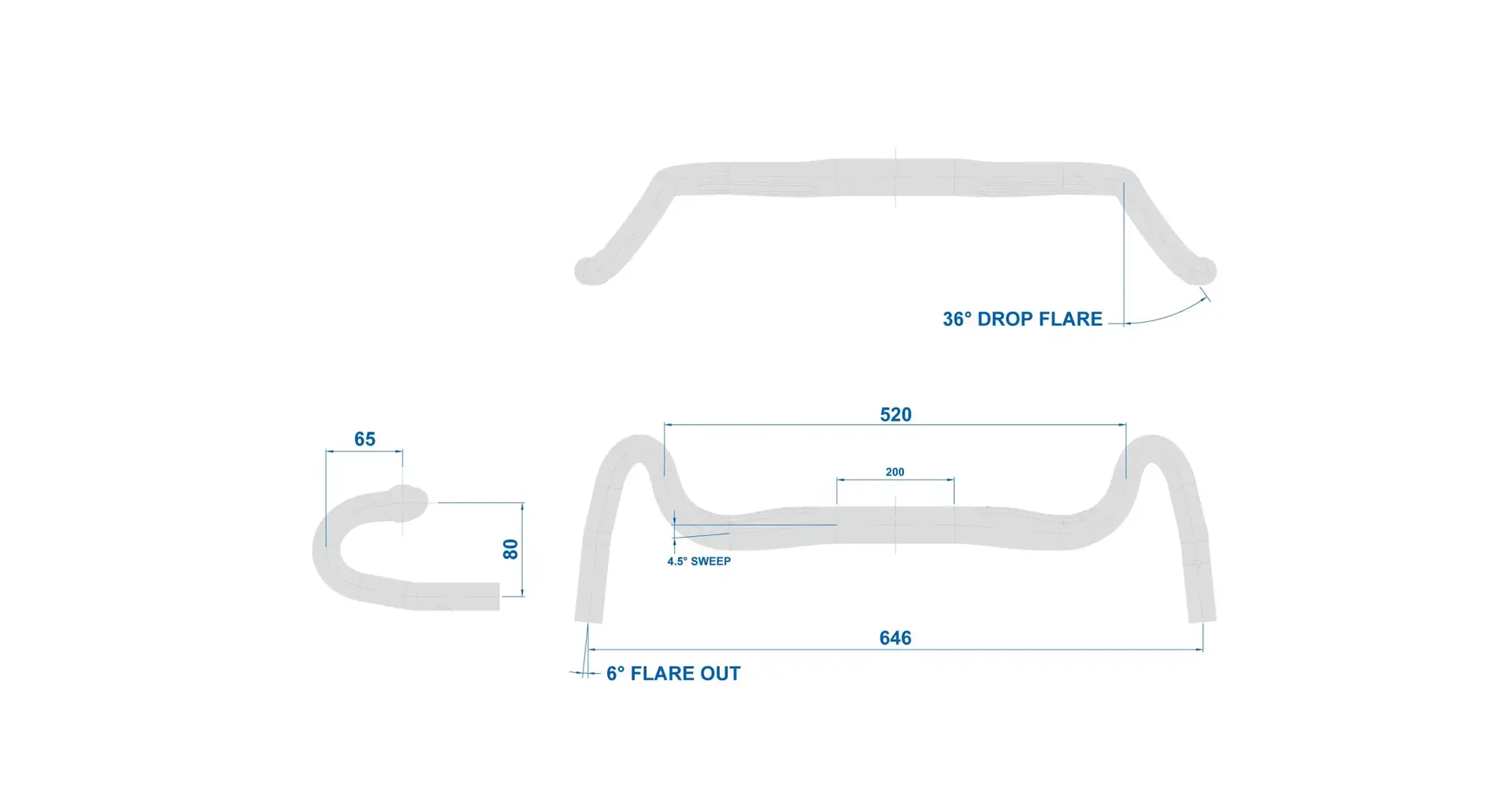

Technical specifications

• Material: Triple-butted 7050 aluminum alloy
• Arch shape: Anatomical
• Upper section: Ergonomic
• Width: 52 cm
• Drop (lowering): 80 mm
• Reach: 65 mm
• Drop Flare: 36°
• Flare Out: 6°

• Backsweep: 4.5°

• data-path-to-node="10,9,0">Clamp diameter: 31.8 mm

• Barbell compatibility: Yes

• Weight: 295g

• Color: Blatte (matte black)

• Di2 compatibility: Yes (Shimano EW-RS910 unit)
