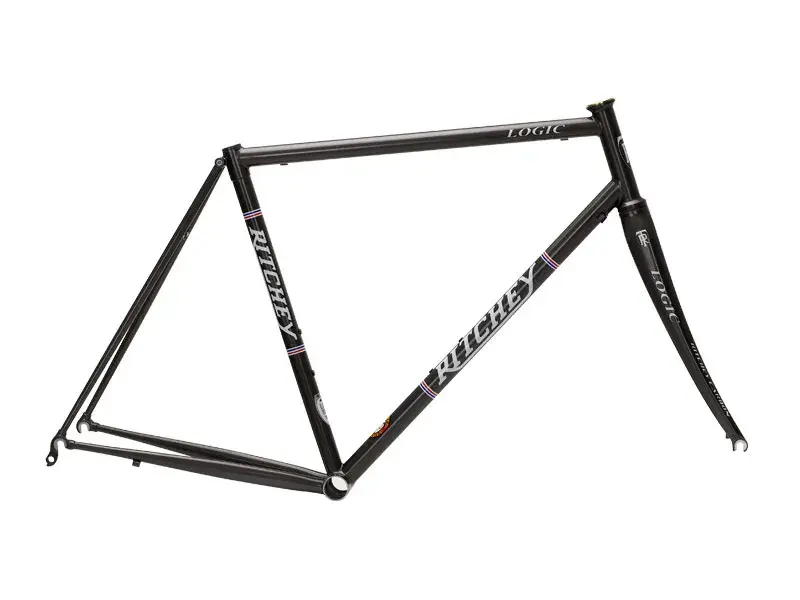

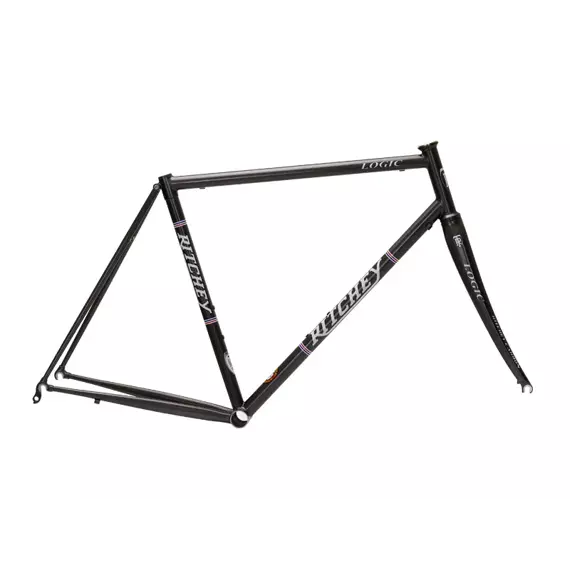

RITCHEY frameset ROAD LOGIC DISC Black with Grey Logo 51

Product description

The new Ritchey Road Logic delivers the same legendary ride experience it is renowned for. The classic lines of this beautiful steel frame and carbon fiber fork blend with modern engineering and proven materials to create a contemporary machine that is sublimely comfortable for long days in the saddle, nimble and stiff enough to win a sprint, and versatile enough to handle any road.

The frame is built with heat-treated, triple-butted proprietary Ritchey Logic steel tubing, featuring a straight head tube and aggressively short-butted sections optimized for TIG welding—saving weight and enhancing overall ride quality.

Specifications

• Material: Heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
• Brake Compatibility: Rim brakes
• Seatpost: 27.2mm with integrated seat collar (max torque: 6Nm)
• Bottom Bracket: 68mm - BSA
• Chainring Compatibility: Single (1x): 36t to 50t, Double (2x): 46/30t to 53/39t
• Max Tire Clearance: 700 x 30c
• Bottle Mounts: 2
• Cable Routing: External
• Headset: WCS Headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
• Derailleur Hanger: Replaceable
• Fork: Ritchey WCS Carbon Road Fork
• Frame Weight: 1.79 kg (size 55)
• Fork Weight: 390g
