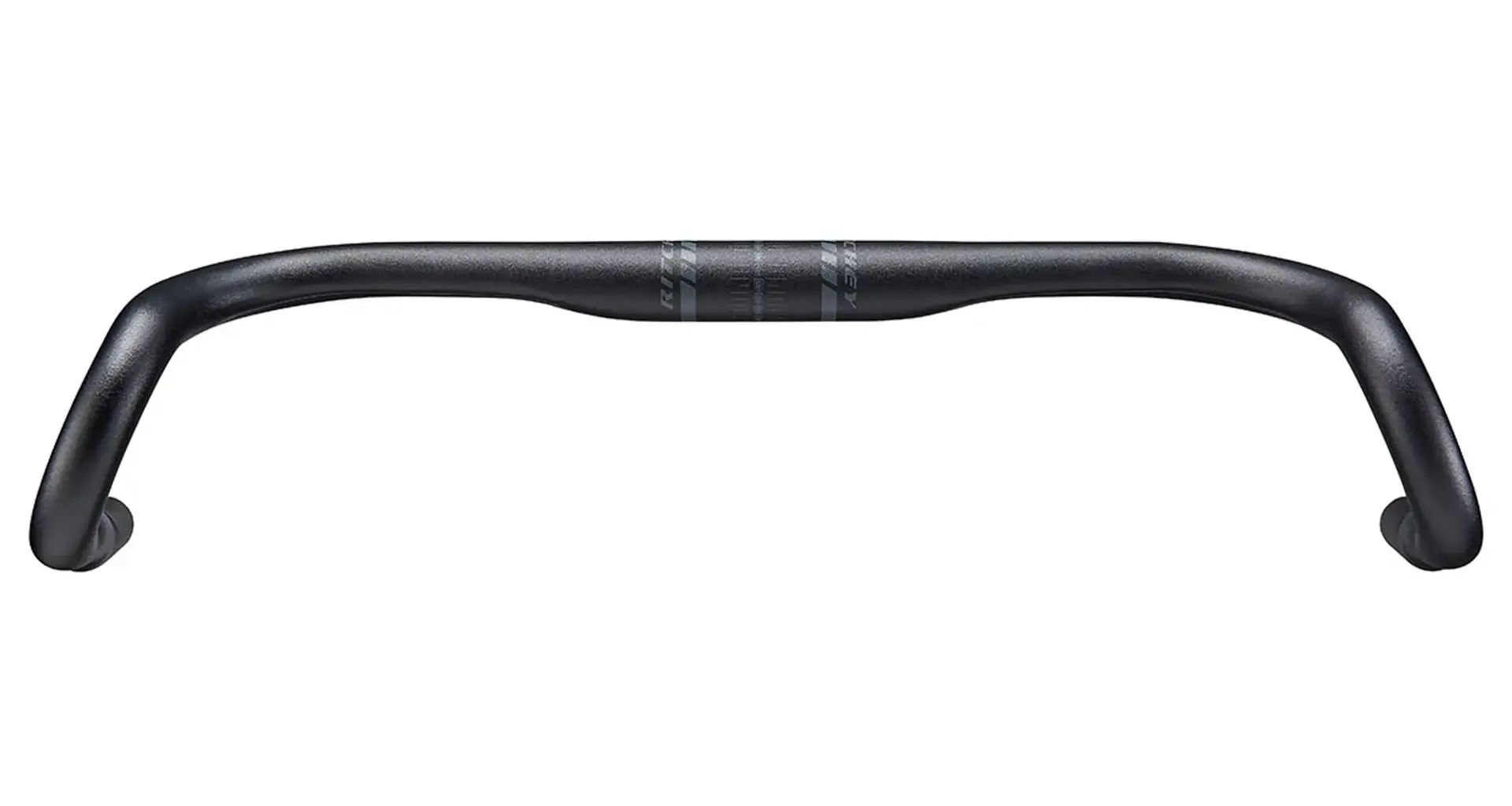

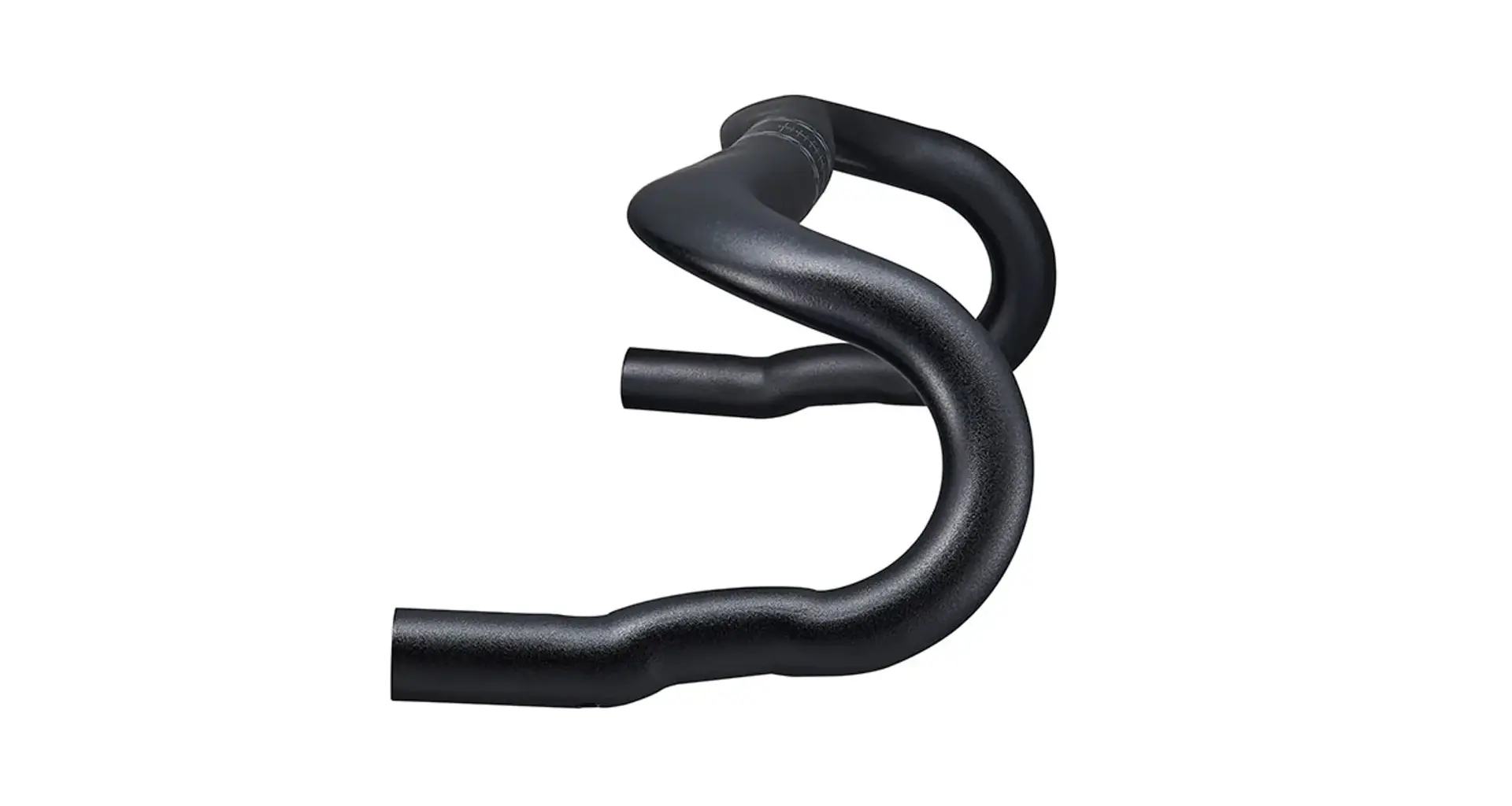

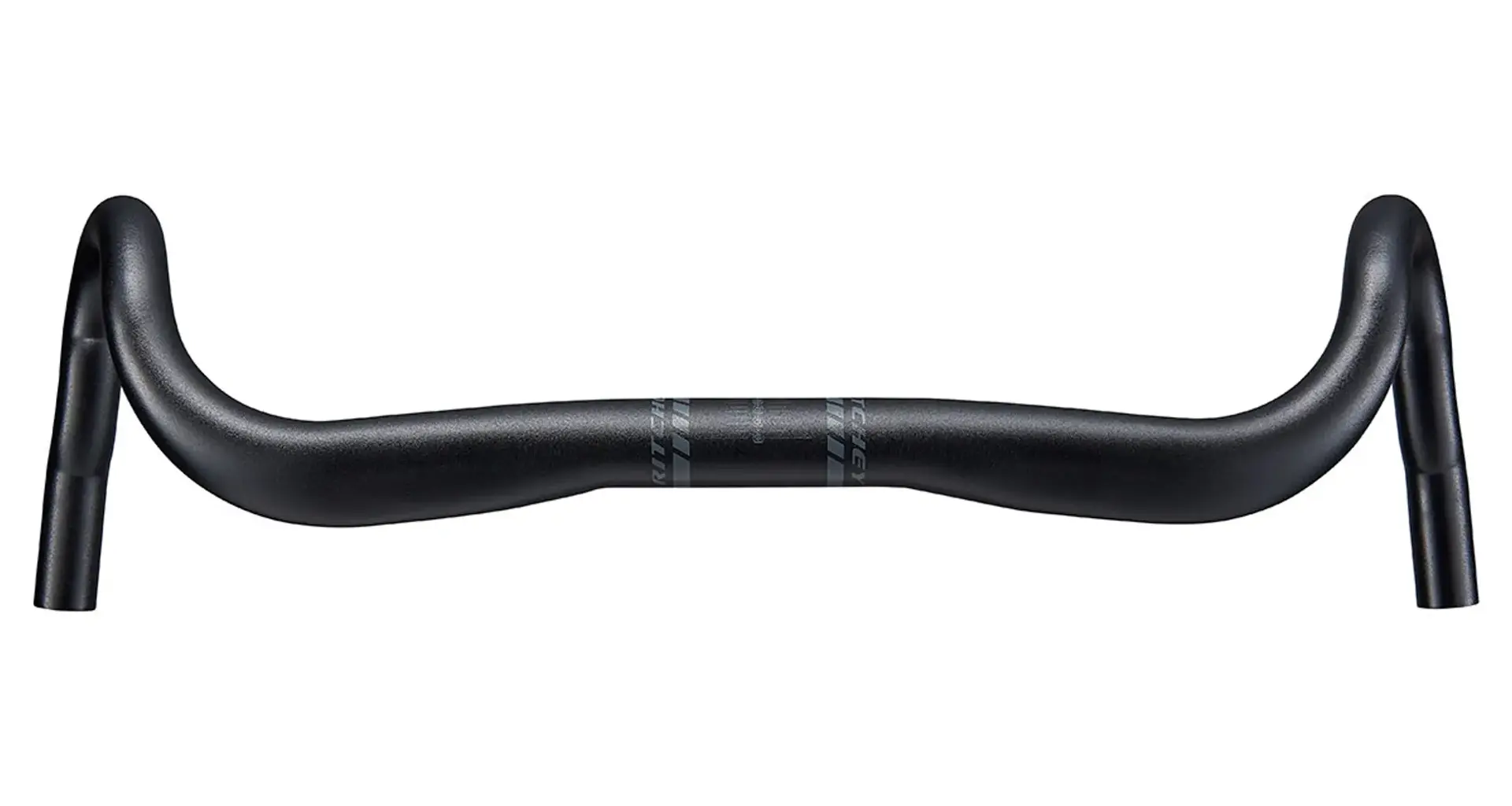

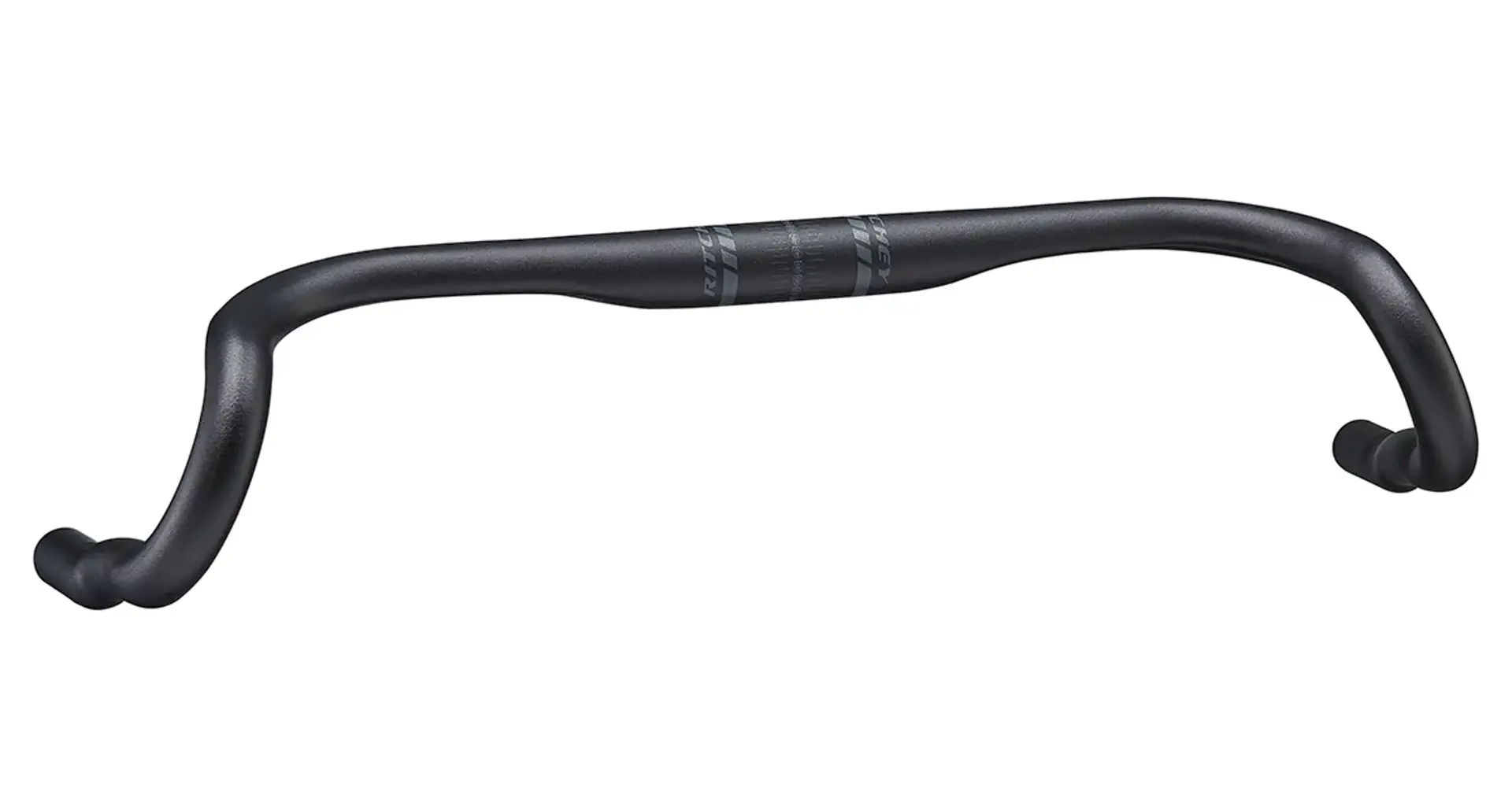

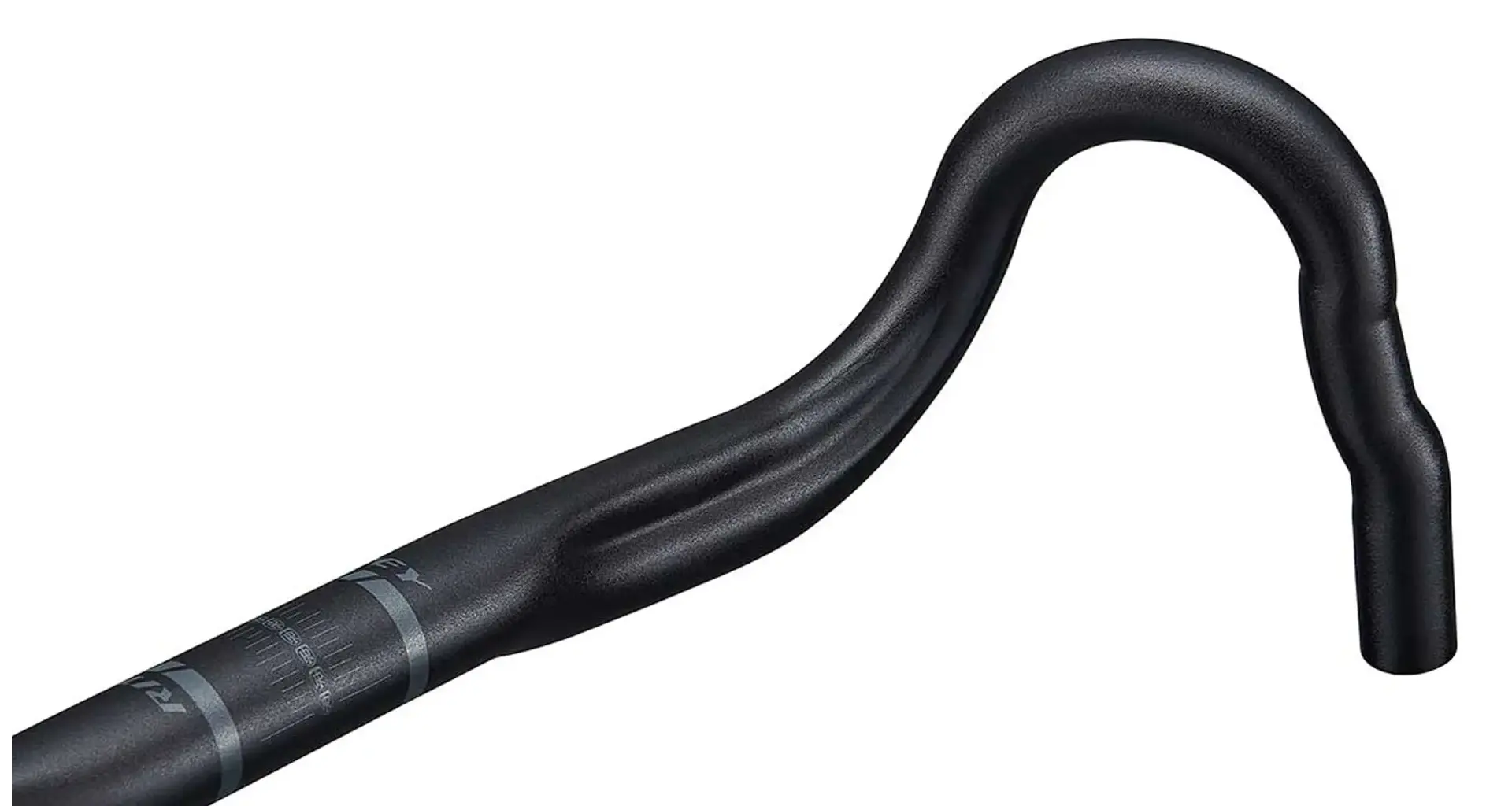

RITCHEY COMP VENTUREMAX V2 40 handlebar

Product description

Tom Ritchey has been riding long-distance off-road and designing products for those adventures for decades before terms like “gravel” or “bikepacking” were even invented. His real-world experience is reflected in every Ritchey product—including the legendary VentureMax handlebar. The original version, with its short reach, shallow drop, and purposeful offset, offered comfort and confidence to a multitude of riders on their off-road adventures.

The new generation of the Comp VentureMax builds on this legacy, but adds modern elements. The most notable change is the ergonomically shaped aero tops (38 x 22.5 mm) that provide a much more comfortable palm rest. The handlebar adaptability is further expanded by preparation (drilling) for the Shimano EW-RS910 linkage unit.

The key to comfort on long rides is the ability to change hand positions. The Comp VentureMax offers a wide range of grips, especially thanks to the pronounced 24° flare at the bottom. It also features a unique Bio-bend - a specific curvature in the arc that increases comfort no matter how long your adventure lasts.

Main advantages

• Ergo-Aero top section: The flattened profile (38 x 22.5 mm) provides a comfortable hand-resting surface and reduces pressure on the palms.
• Bio-bend ergonomics: Unique curved shaping for a natural and comfortable hand position when riding in corners.
• Wide Flare 24°: Guarantees maximum stability and confidence in technical terrain and descents.
• Di2 Integration: Compatible with Shimano EW-RS910 for a clean look of electronic shifting.

Technical specifications

• Material: Double-butted 6061 aluminum alloy
• Arc shape: Bio-bend
• Upper section: Ergo-aero (flattened)
• Width: 40, 42, 44, 46 cm (measured at the first bend, not at the levers)
• Drop (lowering): 102 mm
• Reach: 75 mm
• Drop Flare: 24°
• Flare Out: 6°
• Backsweep: 4.6°
• Clamp diameter: 31.8 mm
• data-path-to-node="9,10,0">Weight: 320 g (width 42 cm)
• Color: BB black (matte black)
• Important note: Not compatible with Ritchey C260 stems
