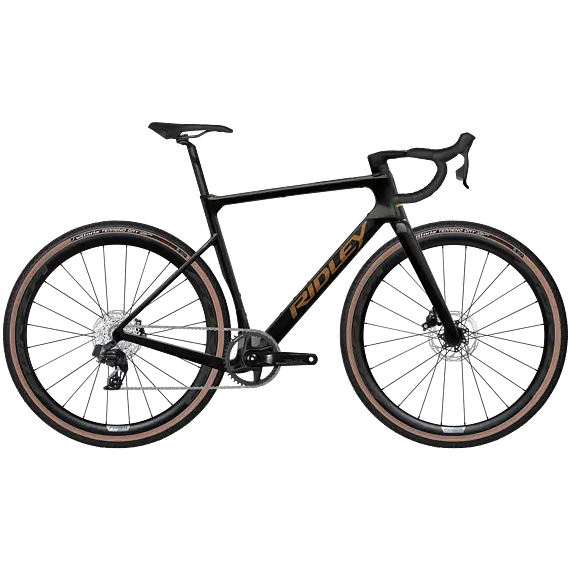

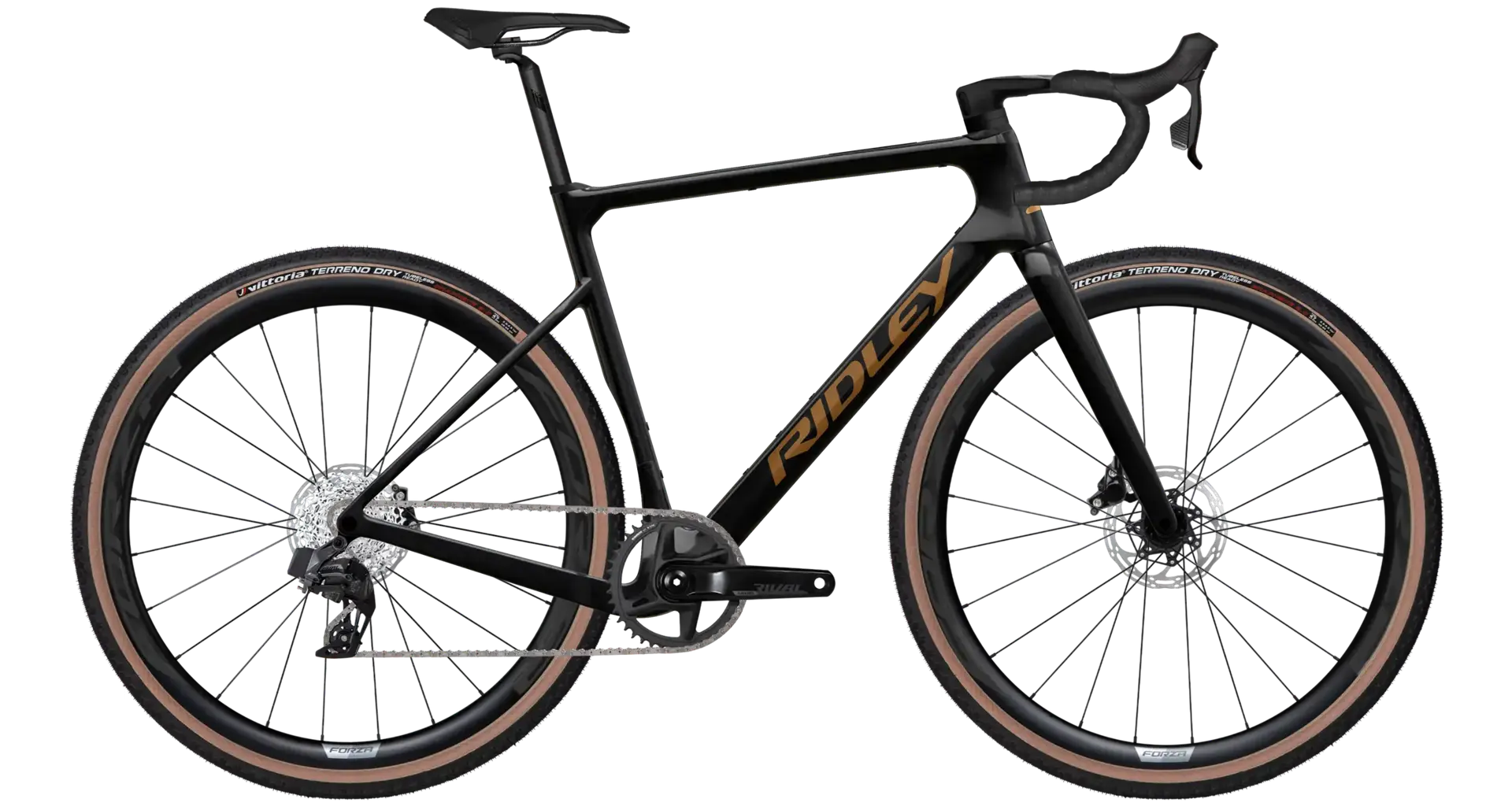

RIDLEY ASTR Rival Classified Black Metallic/Bronze Gold
Sale ended
Description and specifications
Product description
The ASTR brings all the features of the ASTR RS to an affordable price point: from aerodynamic improvements to modern gravel geometry.
The ASTR is ready for every fast ride or gravel race on every type of terrain. Just like the ASTR RS, the ASTR has a tire clearance of 47 - 52 mm (52 millimeters with a 1x setup and 47 millimeters with a 2x setup) for increased grip and comfort.
Modern performance geometry also requires more stability due to increasingly rough terrain combined with higher speeds. A 71.5-degree headtube angle ensures you have faster steering. The ASTR features a steeper seat tube (74 degrees), making climbing performance and power transfer better than with a less steep seat tube.
The product developers kept the chainstays as short as possible to accommodate tyres up to 52 millimetres without losing the feeling of responsiveness when accelerating. In addition, the bottom bracket is a bit lower than on bikes that bet on comfort. This ensures you have more stability at high speed. Finally, the head height is lower, so you sit more aerodynamically on the bike. In summary, this boils down to a modern competitive geometry, tailored for the ambitious gravel racer.
With the addition of the ASTR to the lineup, Ridley underscores its ambition to offer everyone the chance to own an ASTR: from ambitious amateurs to the most dedicated pros.
About Classified
Classified is an innovative rear hub system that effectively replaces the front derailleur and double chainring setup. It allows the rider to have two gear ratios (the equivalent of a large and a small chainring) hidden directly inside the rear hub. Shifting between these "virtual chainrings" is lightning fast and performed wirelessly via a button on the handlebar, which is highly advantageous because you can shift even under heavy load and on any terrain. The Classified system offers a wide gear range like a classic 2x system, but with the simplicity and reliability of a 1x setup, and furthermore, it improves aerodynamics and reduces the risk of chain drop.
Specifications
| Frame: | ASTR, HM carbon, BB86, TA12x142 |
| Fork: | ASTR, TA 12x100, Integrated forkcrown diffuser; 50mm rake, D-Shape steerer |
| Groupset: | Sram Rival AXS 1x12 + Classified |
| Rear derailleur: | Sram Rival eTap AXS , 12s |
| Cranks: | Rotor VEGAST Crank Arm Set 172mm+30mm axl offset |
| Chainring: | Rotor Direct Mount 1x Ring 48T |
| Cassette: | Classified , 12s , 11-34 |
| Handlebar: | Forza Cirrus Pro Integrated Flared |
| Seatpost: | 4ZA Cirrus , 27.2 , 400mm , Zero offset , Black |
| Saddle: | Selle Italia Novus Boost Superflow , Manganese Rails , Black |
| Front wheel: | 4ZA Norte G F24TLR - 3BF GEN3 - DT custom |
| Rear wheel: | 4ZA Norte G Classified - NO STI |
| Outer tyre: | Schwalbe G-One Evo R , Tubeless Ready , 50mm |
Video
Geometry
*Vyhrazujeme si právo na změnu informací o produktech. To se týká vybavení, specifikací, modelů, barev i cen, a to kdykoli a bez předchozího upozornění. Produktové fotografie mohou mít informativní charakter.
Parameters
-
Ridley
Manufacturer
Belgian Cycling Factory NV
Beverlosesteenweg 85,
3583 Paal, Belgie
customer.service@cyclingfactory.be
www.ridley-bikes.com - Product code SBIASTRID08y
- Size 700
- By discipline Gravel
- Frame material Carbon
