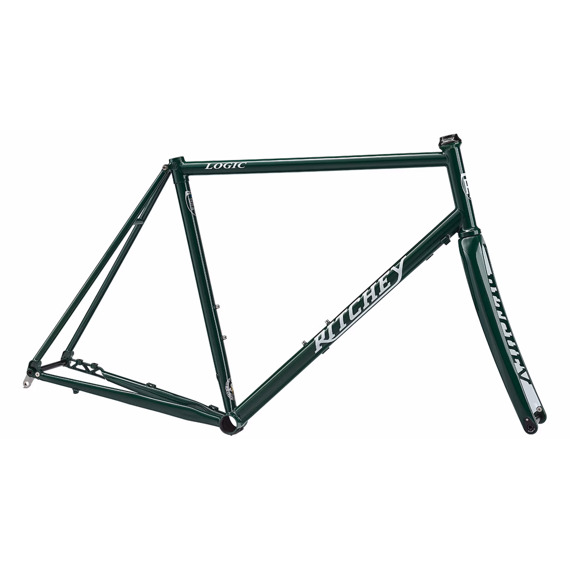

Frameset Ritchey Road Logic Disc vel. 57cm - Test

Product description

Steeped in over 50 years of frame-building heritage, innovation, and endless riding, the classic lines of this beautiful steel frame and carbon fiber fork unite with modern building techniques and proven materials. The result is a contemporary bicycle that is wonderfully comfortable for long days in the saddle, nimble and stiff enough to win a sprint to the sign, and adaptable enough to handle roads that might lack proper pavement.

Innovations and Proven Materials

The Road Logic Disc frame is built with a heat-treated, triple-butted Ritchey Logic tubeset, designed specifically for this model. The tubes feature aggressively short butted sections optimized for TIG welding, which saves weight and improves ride quality. The frameset also includes a Ritchey WCS Carbon Road Fork for precise and quick handling.

2024 Updates: Di2 and Mechanical

For 2024, this modern classic has been updated with compatibility for the latest semi-wireless Shimano Di2 groupsets. A new dropout design on the drive side allows for concealed wire routing from the battery in the seat tube, through the bottom bracket area, and into the chainstay, where it makes a discreet exit to the rear derailleur.

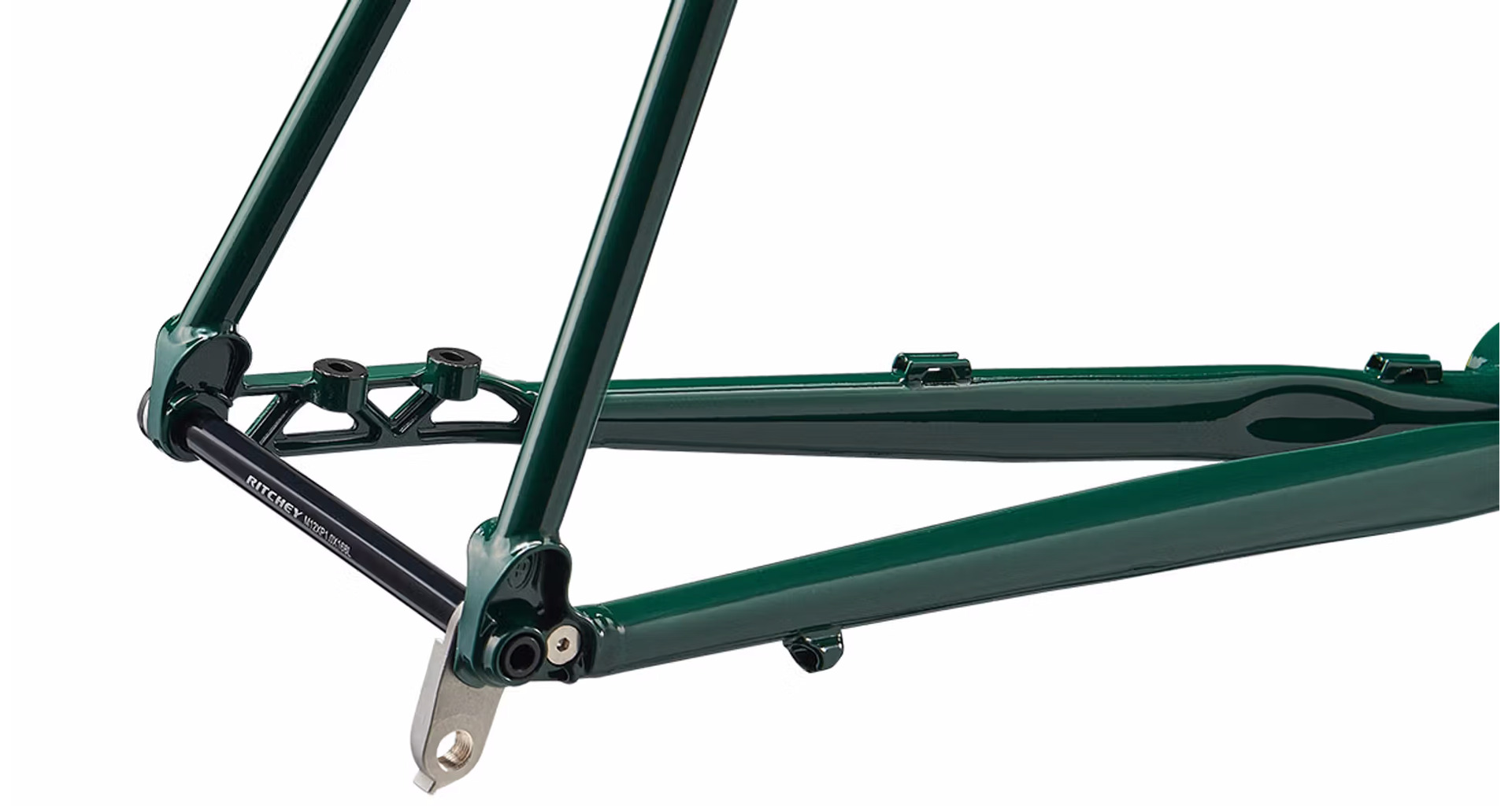

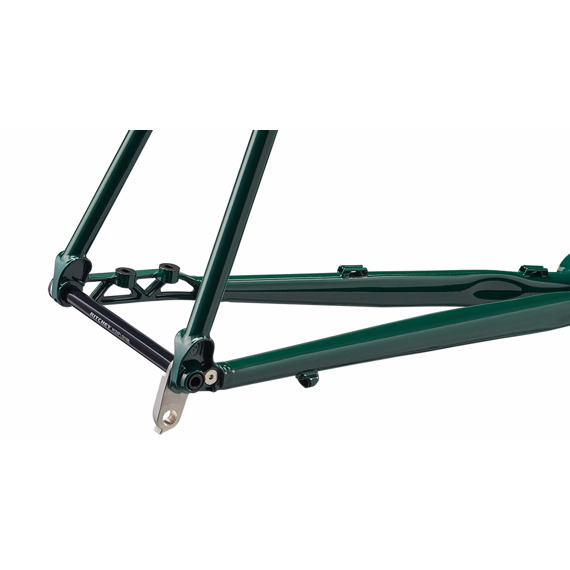

Mechanical shifting fans, however, need not worry—the Road Logic Disc frame retains cable stops for mechanical groupsets. On the non-drive side, a new one-piece truss design for Flat Mount brakes provides the same stiffness and strength as previous mounts while significantly reducing chainstay weight.

With its thoughtful design, unyielding attention to detail, and modern features, the new Road Logic Disc delivers an amazing, almost telepathic ride experience unlike any other bike. It's fast, nimble, comfortable, and perfectly suited for wherever your rides take you.

Frame Specifications

• Material: Heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded.

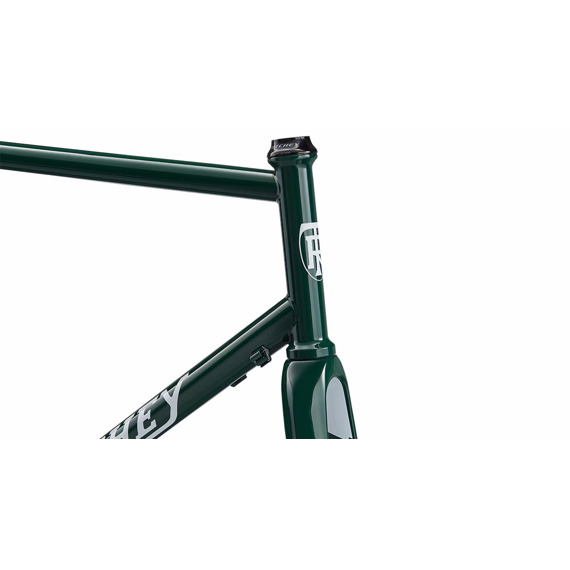

• Head Tube: Ultra-light, forged and machined, straight 1-1/8".
• Finish: Electrophoretic Deposition (ED Coat) treated for corrosion resistance.
• Seat Tube Clamp Size: 28.6mm (max. 2.5 Nm for derailleur clamps and chain guides).

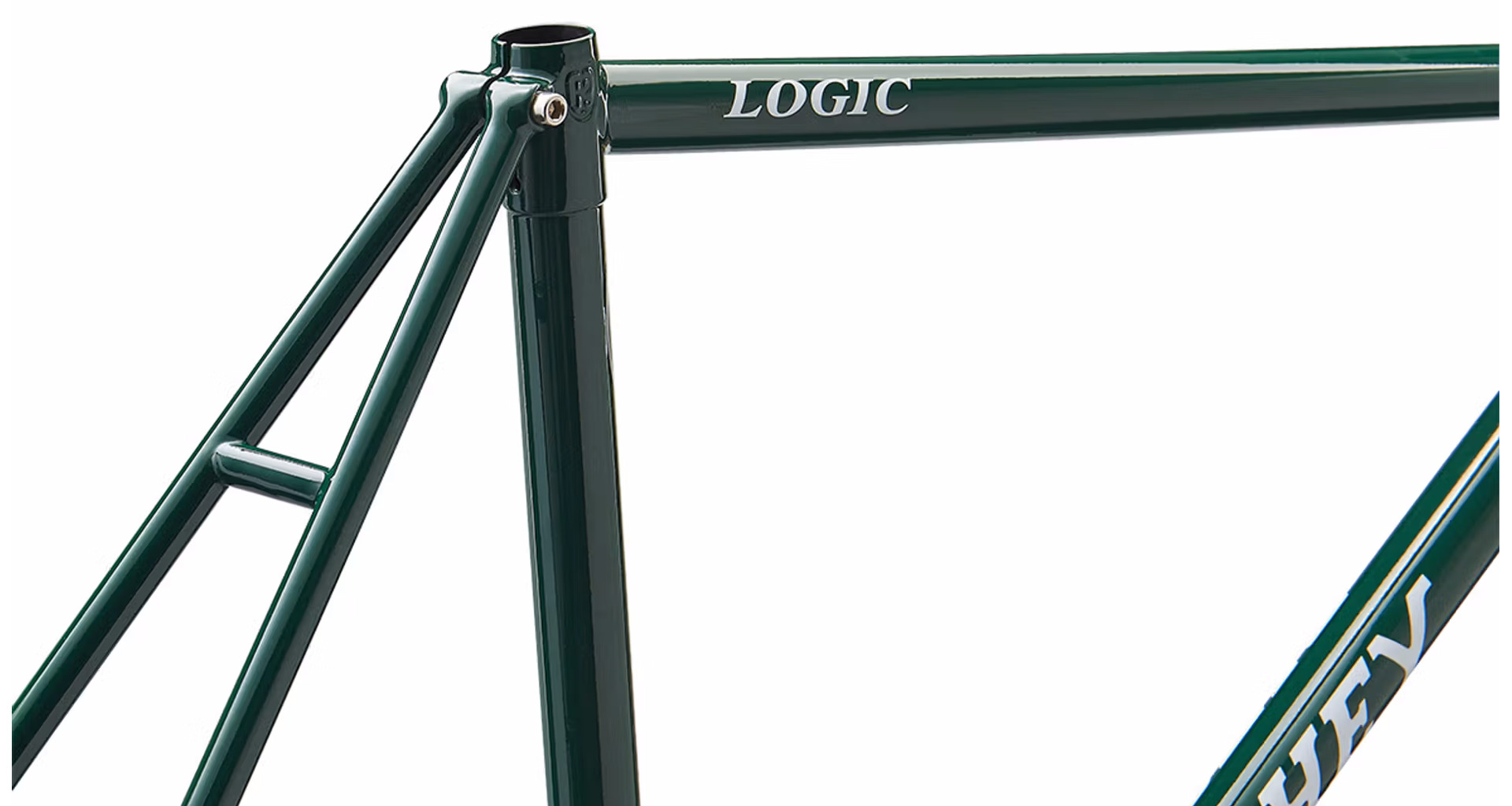

• Seatpost: 27.2mm with an integrated seat collar (max. torque setting: 6 Nm).

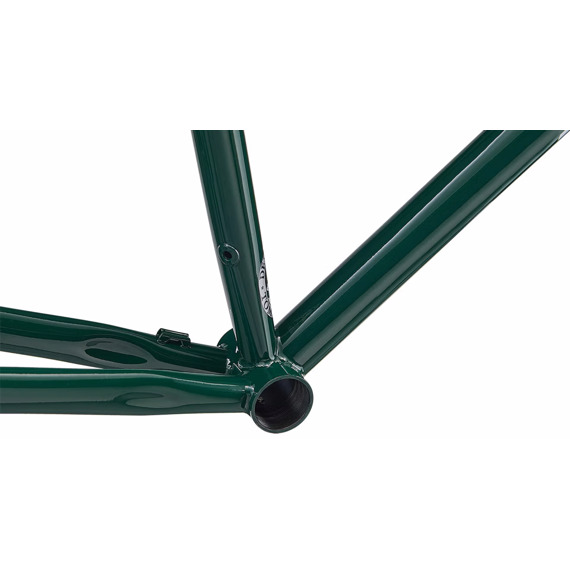

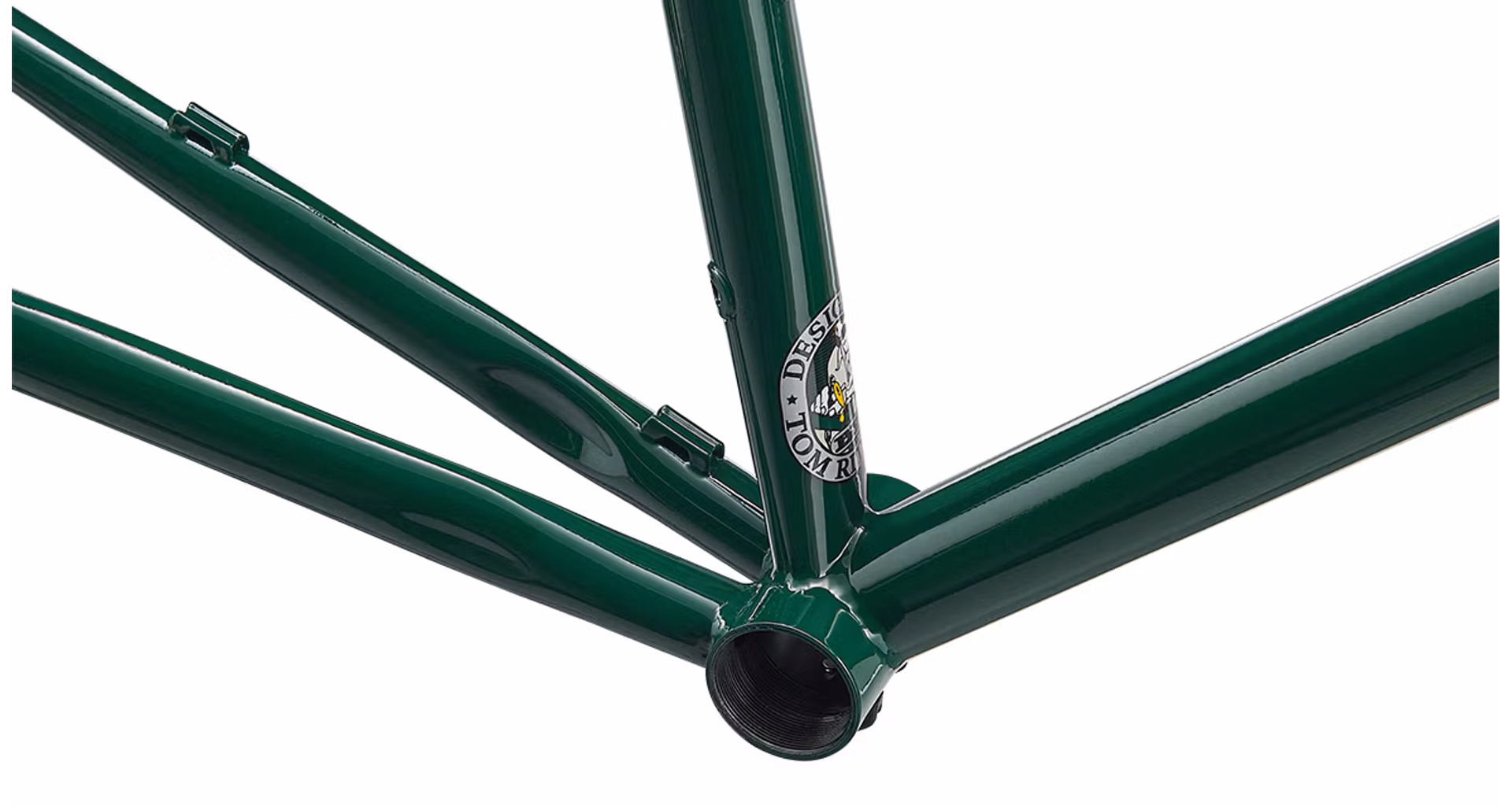

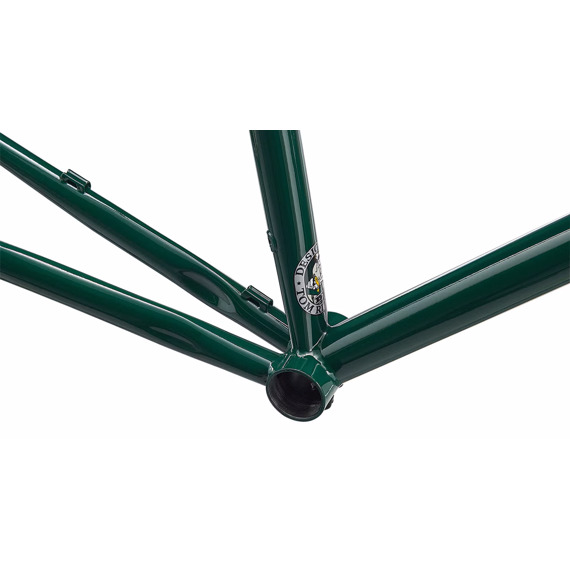

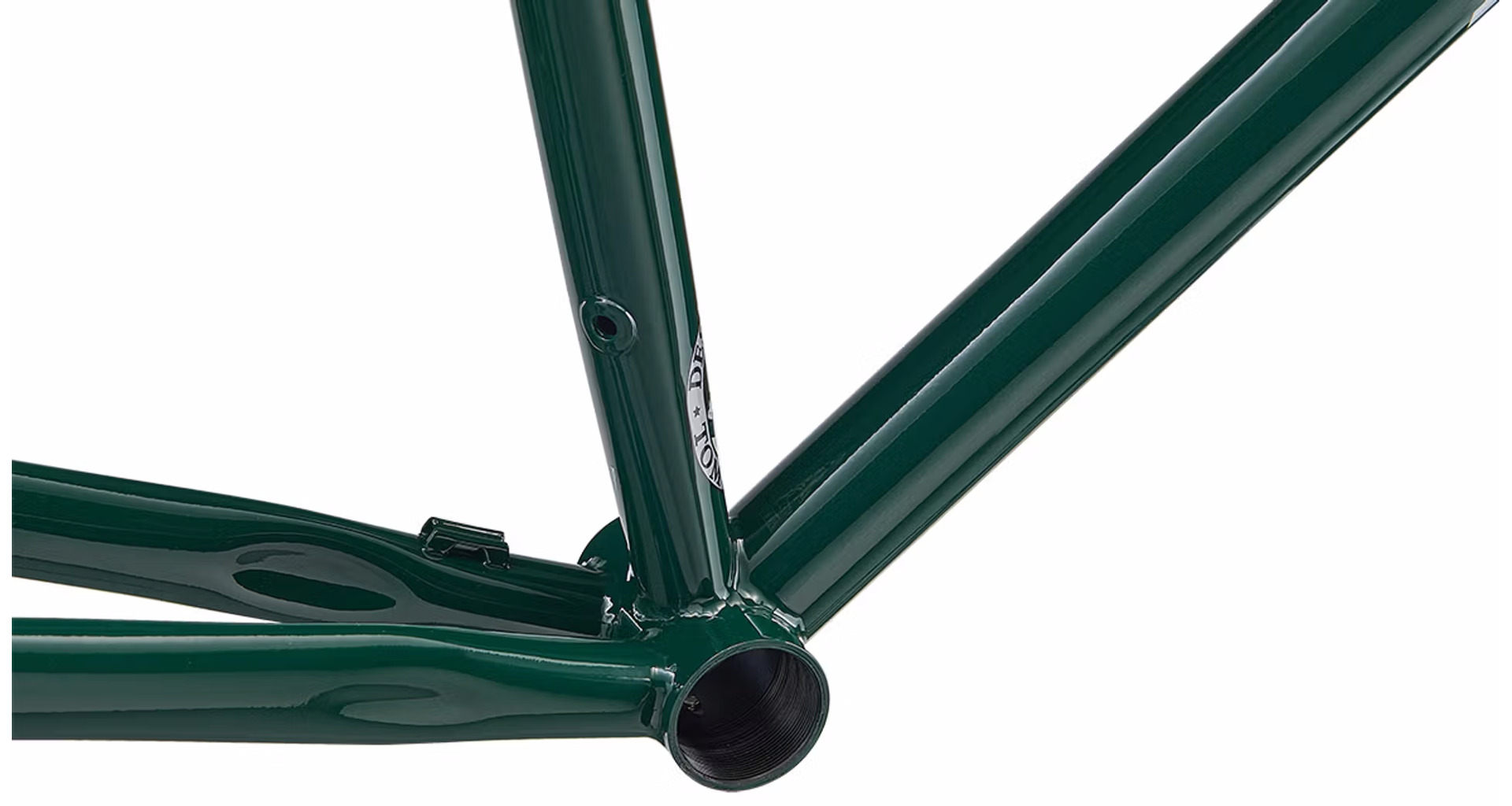

• Bottom Bracket: 68mm - English threaded (BSA).
• Hub Spacing: 142mm (12mm alloy thru-axle included).
• Chainring Min/Max Size: Single: 36 to 50t / Double: 46/30t to 53/39t.
• Compatible with 1x or 2x chainrings.
• Chainline: 44mm.
• Bottle Cage Mounts: 2.
• Cable Routing:
• Stealth wire routing for semi-wireless Di2 groupsets.
• Only compatible with Shimano Di2 EW-SD300 wire for 12-speed systems.
• Includes stops/guides for brake hoses and mechanical groupsets.
• External cable routing.
• Headset: Includes WCS headset (upper IS42/28.6 - 16mm stack height | lower IS42/30).
• Derailleur Hanger: Replaceable, stainless steel.

Fork Specifications

• Fork: Includes Ritchey WCS Carbon Disc Road Fork.
• Steerer: Straight 1-1/8" with integrated 45-degree crown race.
• Steerer Length: 300 mm.
• Axle-Crown: 371 mm.
• Rake/Offset: 46 mm.
• Hub Spacing: 100 mm (12mm alloy thru-axle included).
• Max. Spacers Below Stem: 30 mm.

Tire and Wheel Compatibility

• Tire Clearance: 700 x 30c (depending on tire/rim manufacturer).
• Frame Spacing: 39 mm.
• Fork Spacing: 40 mm.

Brake Compatibility

• Flat-mount Brakes: Front and rear, 140 mm rotors (160 mm max - adapters available separately).
• Frame Flat-mount Bracket Height: 10 mm.

Details

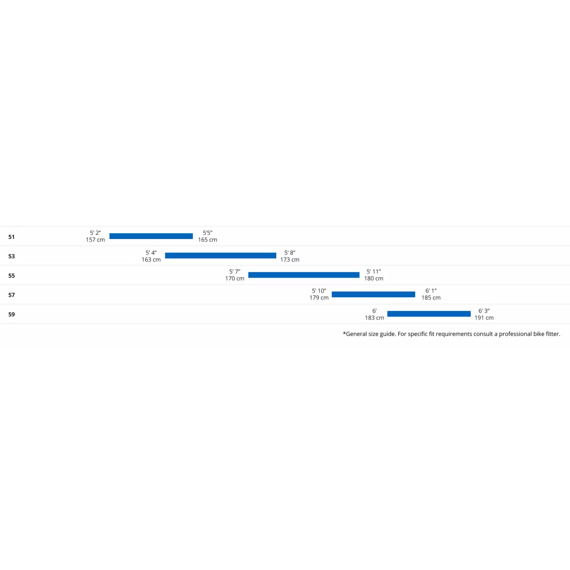

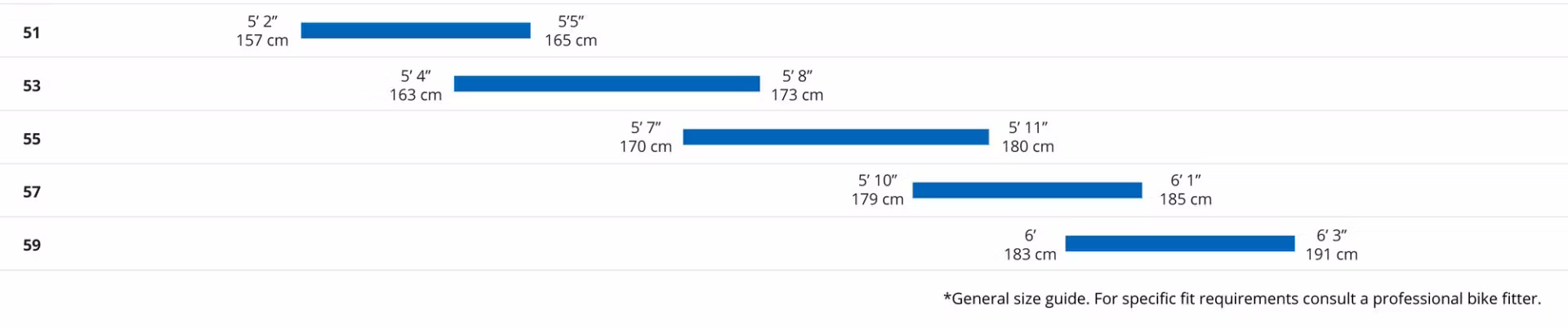

• Sizes: 57 cm
• Frame Weight: 1,940g (size 55 - w/o thru-axle).
• Fork Weight: 420g (with uncut steerer / not including axle).
• Color: Nigiri
